PSR-A5000 Reference Manual 95
9
9
9
Mixer
Mixer
Contents
Editing Filter Parameters (Filter)............................................................................................ 95
Editing EQ Parameters (EQ) ...................................................................................................96
Editing Effect Parameters (Effect) ..........................................................................................98
• Editing and Saving the Effect settings ................................................................................. 99
Editing Effect Parameters (Chorus/Reverb).........................................................................100
• Editing and Saving the Chorus/Reverb settings................................................................. 100
Editing Pan/Volume Settings (Pan/Volume).......................................................................... 100
Editing Master Compressor Settings (Compressor) ............................................................ 101
Block Diagram ......................................................................................................................... 103
The Owner’s Manual covers the basic procedure of using the Mixer function. This Reference Manual provides more
detailed information on each display (or function) of the Mixer display called up via [MENU]  [Mixer].
The “Panel”–“Song” Part Selection tabs at the top of the Mixer display let you adjust the sound for each
corresponding part, while “Master” lets you make overall sound adjustments for the entire instrument.
For a visual indication of the signal flow and configuration of the Mixer, refer to the Block Diagram on page 103.
This function modifies the tonal characteristics (brightness, etc.) of the sound by cutting the output of a specific
frequency portion of the sound. This is not available when you select “Master” from among the tabs at the top of the
Mixer display.
Knobs and sliders appear on the setting displays only when the relevant parameters are available.

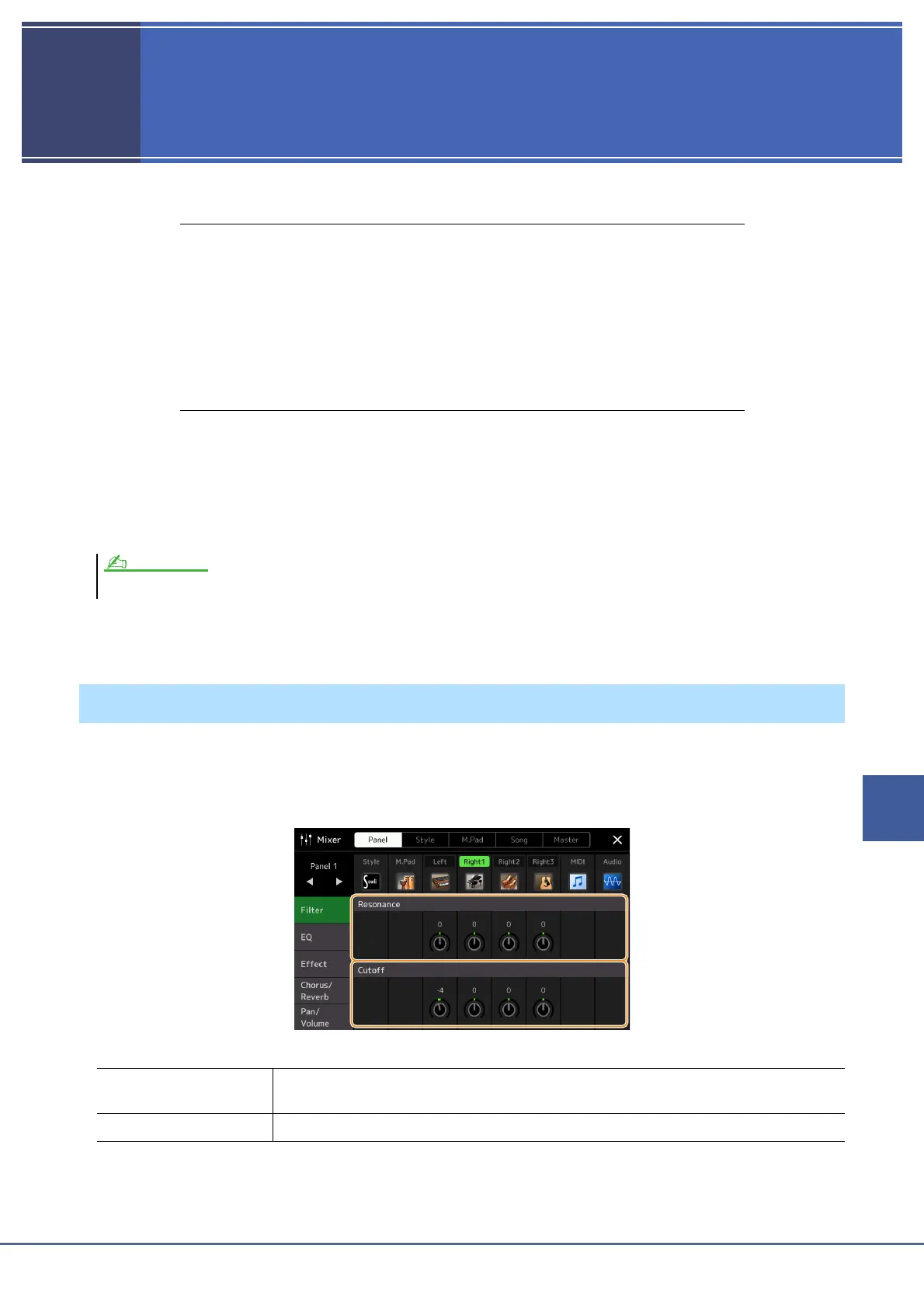

Editing Filter Parameters (Filter)
Resonance Allows you to adjust the Resonance effect (page 47) for each part. This can be used in combination
with the “Cutoff” parameter to add further character to the sound.
Cutoff Determines the brightness of the sound for each part by adjusting the cutoff frequency (page 47).
NOTE

Yamaha PSR-A5000 Specifications

General

Power Supply	PA-300C or an equivalent recommended by Yamaha
Sound Engine	AWM Stereo Sampling
One Touch Setting (OTS)	4 for each Style
Style Recommender	Yes
Language	English, German, French, Spanish, Italian
Panel Language	English
Lesson/Guide	Follow Lights, Any Key, Karao-Key, Your Tempo
Amplifiers	15 W x 2
Speakers	13 cm x 2 + 5 cm x 2
Keyboard	61 keys
Polyphony	128
Display	7-inch
Effects	Reverb, chorus, DSP, Master EQ
Storage	USB flash drive
Connectivity	USB TO HOST, USB TO DEVICE, MIDI IN/OUT
Fingering	Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard
Style Control	INTRO, MAIN, FILL-IN, BREAK, ENDING
File Format Compatibility	MIDI, WAV, MP3
Recording	MIDI, Audio (WAV)
Playback	SMF (Format 0 & 1)
Multi Pads	Yes
Audio	Playback and Recording
Audio Recording	WAV (44.1 kHz sample rate, 16 bit resolution, stereo)
Lyrics	Yes
Registration Memory	Yes
Overall Controls	Metronome
Miscellaneous	Metronome, transpose, tuning
