INTRODUCTION
Part names and functions
En 10

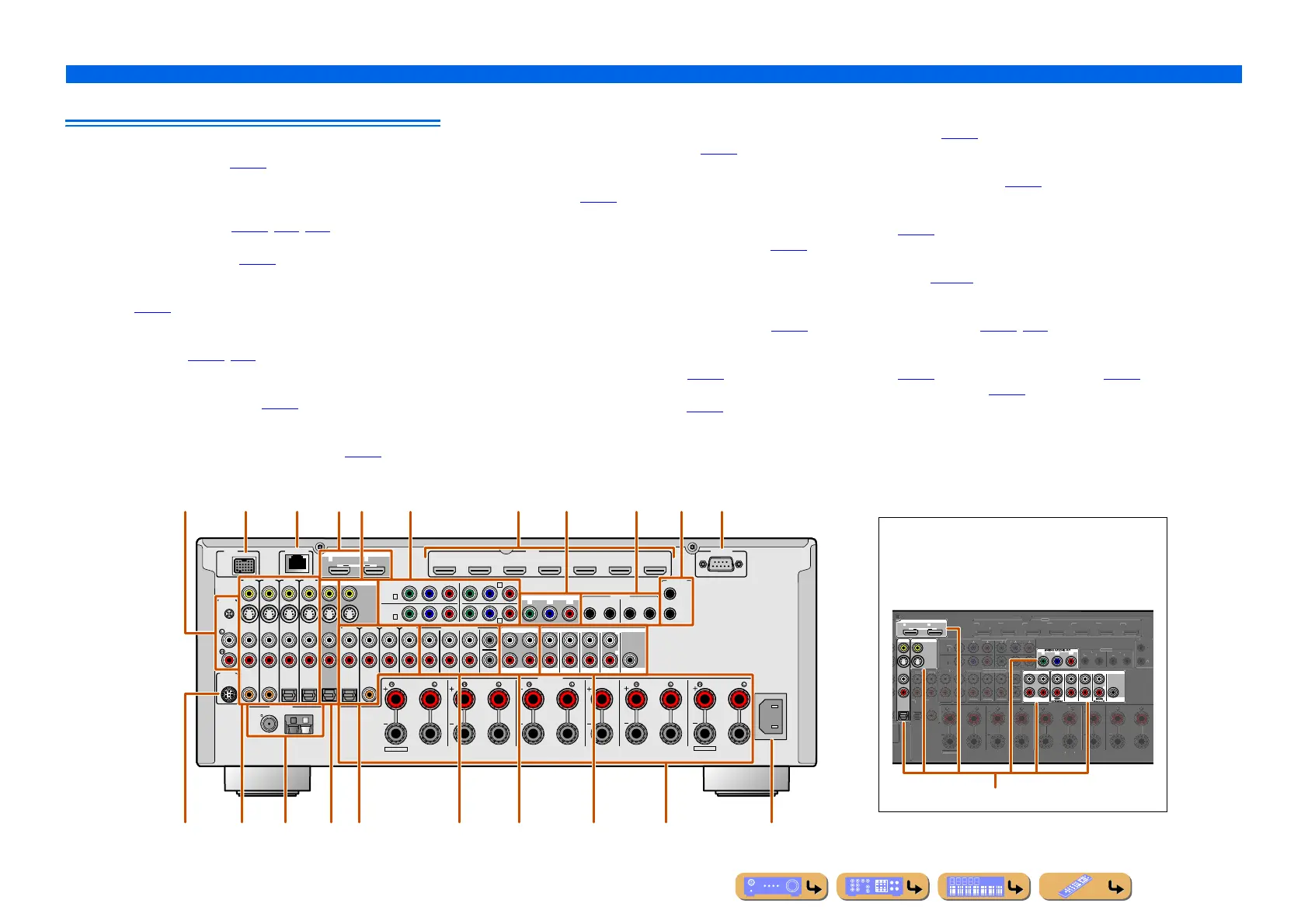

Rear panel
a PHONO jacks
For connecting a turntable (☞
p. 35).
b DOCK jack
For connecting an optional Universal Dock for iPod (such as YDS-
12), Wireless System for iPod (YID-W10), or Bluetooth Wireless
Audio Receiver (YBA-10) (☞
p. 90, p. 92, p. 94).
c NETWORK port
For connecting to a network (☞
p. 38).
d HDMI OUT 1-2 jacks
For connecting an HDMI - compatible TV to output audio/video
signals (☞
p. 29).
e MON.OUT/ZONE OUT jacks (S-VIDEO/VIDEO jacks)
For connecting a TV capable of receiving video input, and outputting
video signals to it (☞
p. 29, p. 30).
f COMPONENT VIDEO jacks
For connecting external components that support component video
output for video signal reception (☞
p. 32).
g HDMI input jacks
For connecting external components equipped with HDMI-
compatible outputs to receive audio/video signals (☞
p. 31).
h MONITOR OUT/ZONE OUT jacks (COMPONENT VIDEO
jacks)
For connecting TV that are compatible with component video signals,
using three cables to output video signal (☞
p. 29).
i REMOTE IN/OUT1-2 jacks
For connecting an external component that supports the remote
control function (☞
p. 37).
j TRIGGER OUT 1-2 jack
For connecting an external component that supports the trigger
function to operate it linked with operation of this unit (☞
p. 37).
k RS-232C terminal
This is a control expansion terminal for custom installation. Consult
your dealer for details.
l SIRIUS jack
For connecting a SiriusConnect tuner (sold separately) (☞
p. 70).
m AV1-4 jacks
For connecting to external components equipped with audio/video
outputs to receive audio/video signals (☞
p. 32).
n ANTENNA jacks
For connecting AM and FM antennas (☞
p. 40).
o AV OUT jacks
For outputting audio/video signals received when analog inputs are
selected (☞
p. 38).
p AUDIO1-4 jacks
For connecting external components equipped with audio outputs to
receive audio signals (☞
p. 35).
q MULTI CH INPUT jacks
For connecting a player that supports a multi-channel output
(☞
p. 36).
r ZONE OUT jacks
Outputs sound of this unit to an external amplifier set in a different
room. (☞
p. 147).
s PRE OUT terminals
For connecting a subwoofer with built-in amplifier or an external
power amplifier (☞
p. 23, p. 26).
t SPEAKERS terminals
For connecting the front, center, surround and surround back speakers
(☞
p. 20). Connect the presence speakers (☞p. 20) or the speakers for
Zone2 and Zone3 (☞
p. 21) to the EXTRA SP jacks.
u AC IN
For connecting the supplied power cable.
HDMI OUT
12
ZONE OUT PRE OUT
ZONE 2
AV OUT
YP
B
P
R
SURROUND
SUR. BACK
CENTER
(FRONT)
1
2
MON.OUT/ZONE OUT
ARC ARC
SELECTABLE
ZONE 3
(SINGLE)
NE2
Z
NE
RR
ND
RR
ND BA
K
PEAKER
ENTE
1
4
HDMI
IN
LE
R
NT
-
EXTRA SP
V
V 4
A
PTICA
UDIO 1
UDIO
UDIO
UDIO 4
FRONT
URROUND
UR. BAC
UBWOOFER
LTI
H INP
T
COMPONENT VIDEO
COAXIA
B
B
T
EMOT
TRI
ER
U
(1 BD
DVD
V
B
Distinguishing the input and output jacks
The area around the audio/video output jacks is marked
in white to prevent connection errors. Use these jacks to
output audio/video signals to a TV or other external
component.
Output jacks
EXTRA SP1
ZONE2/ZONE3
ANTENNA
75
AC IN
SURROUND SURROUND BACK/
SPEAKERS
CENTER
AV 1
HDMI OUT
AV 2 AV 3 AV 4
HDMI
AV 5 AV 6 AV 7
SINGLE
FRONT
BI-AMP
EXTRA SP2
12
PHONO
GND
(1 BD/DVD)
AV 1
DOCK NETWORK
AV 2 AV 3 AV 4
AV 3
AV 4
COAXIAL COAXIAL
OPTICAL OPTICAL
OPTICAL
AUDIO 1
(2 TV)
(3 CD)
AUDIO 2 AUDIO 3 AUDIO 4
FRONT
SURROUND
SUR. BACK
SUBWOOFER
CENTER
MULTI CH INPUT
COMPONENT VIDEO
COAXIAL
MONITOR OUT/ZONE OUT
ZONE OUT PRE OUT
ZONE 2
FRONT/
F. PRESENCE
AV OUT
abcd ef
YP
B
P
R
YP
B
P
R
YP
B
P
R
C
D
SURROUND
SUR. BACK
CENTER
(REAR)
(FRONT)
SUBWOOFER
1
2
RS-232C
IN
12
2
1
OUT IN OUT
REMOTE
TRIGGER
OUT
+12V 0.1A MAX.
MON.OUT/ZONE OUT
ARC ARC
SELECTABLE
ZONE 3
(SINGLE)
(1 BD/DVD)
AV 1
AV 2
A
B
SIRIUS
HD Radio
GND
AMFM
(4 RADIO)
ZONE2/ZONE3/
F.PRESENCE
AV 1
AV 2
A
B
MON.OUT/ZONE OUT
bad g kjf
tm oln u
c
e h i
p q r s
To Next Page
