CONNECTIONS
Advanced speaker configuration
En 25
■

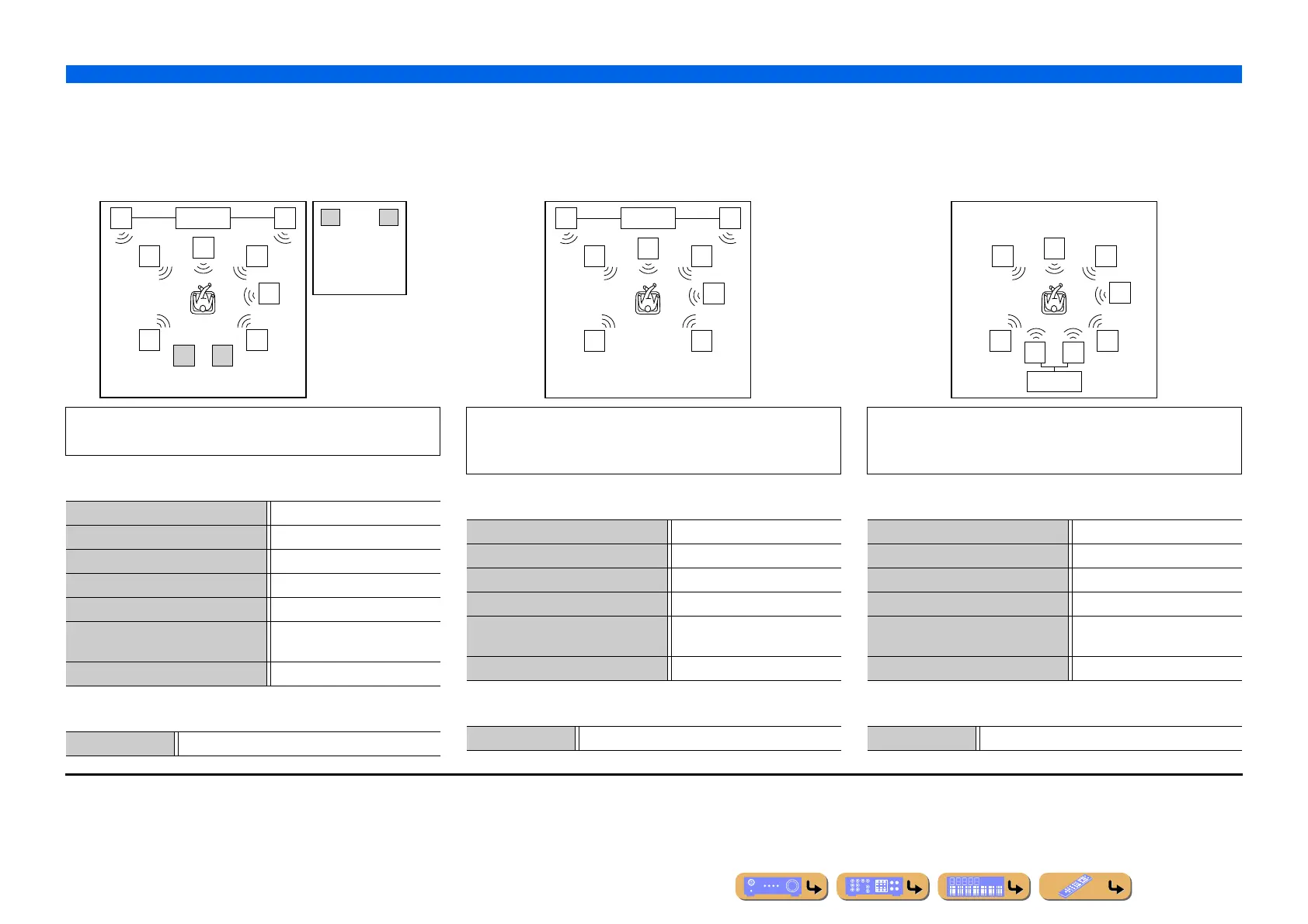

Using the presence speakers in the main
room and speakers in another room
■ 9-1-channel speaker layout
(7 speakers + subwoofer + external presence
speakers + front speakers (in secondary zone))
■ Connections of speakers
■ Assigning a speaker configuration
■
Using front speakers that support bi-amp
connection and front presence speakers
■ 7.1-channel speaker layout
(Front speaker (Bi-amp) + 3 speakers + subwoofer
+ external front presence speakers)
■ Connections of speakers
■ Assigning a speaker configuration
■
Using front speakers that support bi-amp
connection and surround back speakers
■ 7.1-channel speaker layout
(Front speaker (Bi-amp) + 3 speakers + subwoofer
+ external surround back speakers)
■ Connections of speakers
■ Assigning a speaker configuration
The presence speakers in the main room can be used while the
front speakers in another room are used. J1
FRONT jacks Front L/R speakers
CENTER jack Center speaker
SURROUND jacks Surround L/R speakers
SURROUND BACK jacks Surround back L/R speakers
EXTRA SP1 jacks Zone2 speakers
F.PRESENCE (PRE OUT) jacks External amplifier
(for presence L/R speakers)
SUBWOOFER (PRE OUT) jack J2 Subwoofer
Power Amp Assign 7ch + FPR + 1ZONE
L
R
L
C
R
SL SR
SBRSBL
SW
EA
PR
PL
A richer sound field can be created with the simultaneous use of
front speakers that support bi-amp connection and front
presence speakers.
FRONT jacks Front L/R speakers (bi-amp)
CENTER jack Center speaker
SURROUND jacks Surround L/R speakers
SURROUND BACK jacks Front L/R speakers (bi-amp)
F.PRESENCE (PRE OUT) jacks External amplifier
(for presence L/R speakers)
SUBWOOFER (PRE OUT) jack J2 Subwoofer
Power Amp Assign 5ch BI-AMP + FPR
L
C
R
SL SR
SW
BI-AMP BI-AMP
EA
PR
PL
Connecting surround back speakers to an external amplifier
enables simultaneous use of front speakers that support bi-amp
connection and surround back speakers.
FRONT jacks Front L/R speakers (bi-amp)
CENTER jack Center speaker
SURROUND jacks Surround L/R speakers
SURROUND BACK jacks Front L/R speakers (bi-amp)
SUR.BACK (PRE OUT) jacks External amplifier
(for surround back L/R speakers)
SUBWOOFER (PRE OUT) jack J2 Subwoofer
Power Amp Assign 5ch BI-AMP + SB
EA
L
C
R
SL
SR
SBRSBL
SW
BI-AMP BI-AMP
J
1 : Sound cannot be output from the surround back speakers when it is output from
speakers connected to the EXTRA SP1 jacks.
J
2 : You can also use two subwoofers by connecting them to both SUBWOOFER1
(FRONT) and SUBWOOFER2 (REAR) jacks.
