Yamatake Corporation
Operation of the Transmitter
ST3000 Smart Trans
mitter Series 900 Electronic Di
fferential Pres
sure/Pressure Trans
mitter
5-33
5-4-1-2
St
arting
Measurement
Procedure

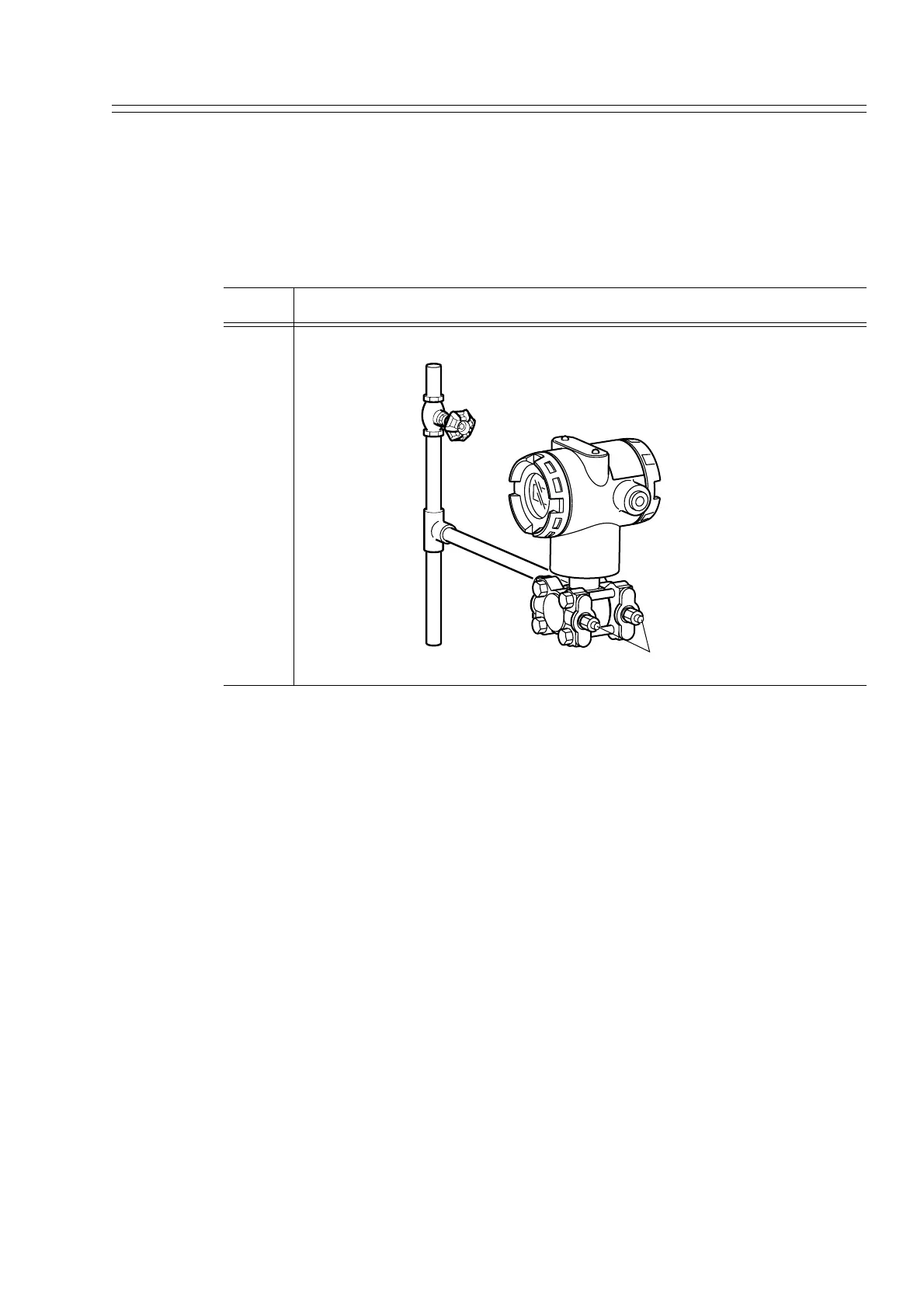

Operate the valve with the following procedure and apply the process pressure to
transmitter
. Display the measured
value by operating the SFC keys.
Process pressure applying operation
Step
Description
1
open gradually the local valve.
Vent / Drain plug
High-pressure side
Local valve
108
110
