16 Transporting the machine
125

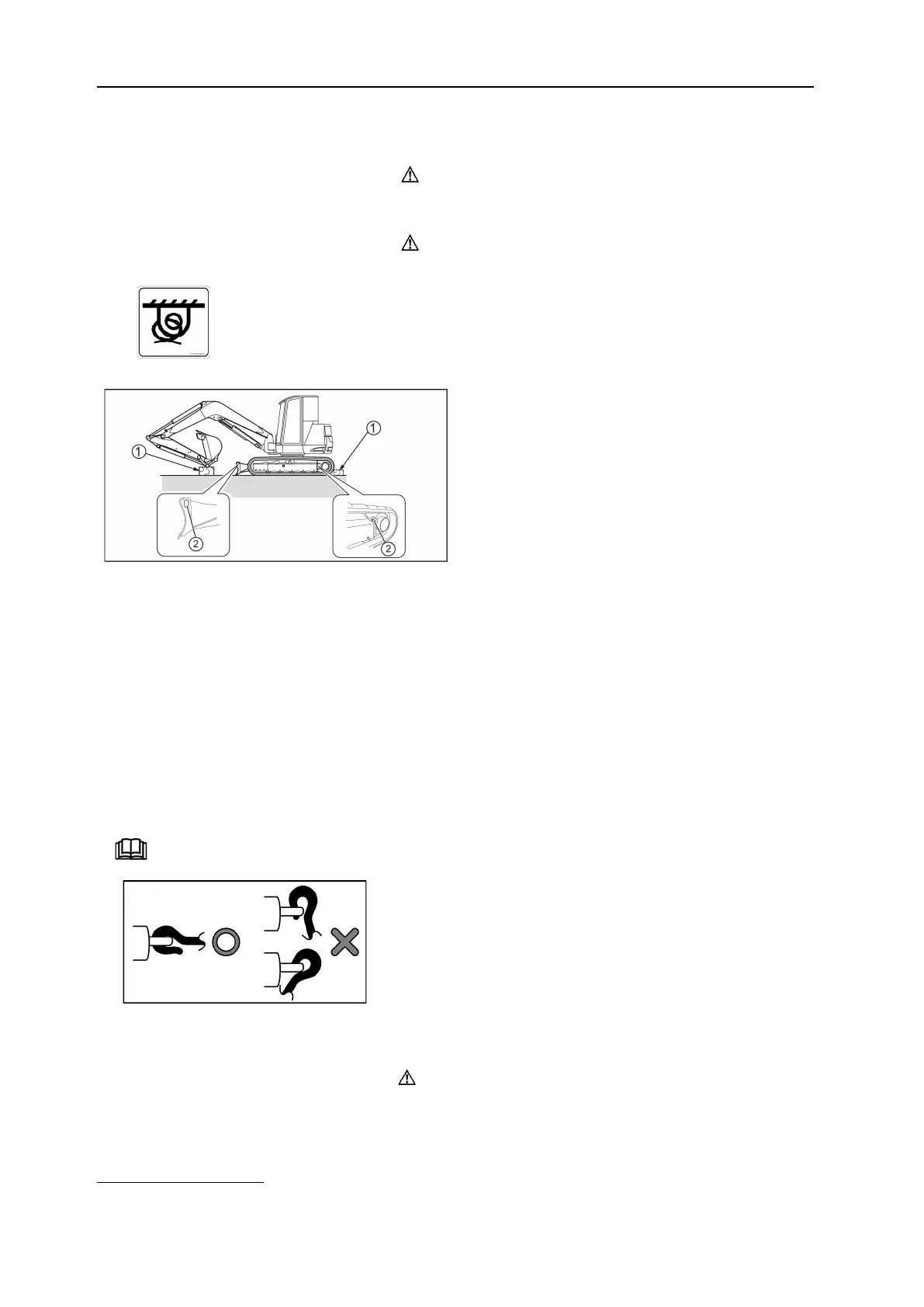

1= Wedge
2=Anchor points
1. Check the condition of the transport vehicle surface. If the surface is greasy, it must be
cleaned before installing the machine on the transport vehicle.
Note
If the transport vehicle surface is steel, provide a non-slip mat or spacers to prevent
the machine tracks from slipping.
2. Check the WLL
4
of the tie-down points of the transport vehicle, it must be at least the
WLL
4
recommended for tying down the accessories.
3. Check the location and condition of the machine tie-down points.
4. Tie-down the machine at the points provided for that purpose and that are indicated on the
machine.
3 Warning labels, page 6
a. Correctly position the hooks on the tie-down
points.
b. Be alert to where tie-down accessories pass;
they should not rest on sharp edges or have knots
present when tying down.
c. Make sure to load balance the various tie-
downs and do not overload them.
WARNING
Before starting the machine transportation, check the total height of the load.
4. Working Load Limit (WLL)
16.3 Tying down the machine
WARNING
Do not perform the tie-down if a person stands on the machine or on an accessory.
WARNING
Use a tie-down accessory (belt, chain, cable) compatible with the
weight of the machine and compliant with European standards.
Check the tie-down accessory labelling to know the WLL
4
. In the ab-
sence of or damage to the accessory labelling, do not use it without
being assured of its WLL
4
.
