5 Description of the driving position
35

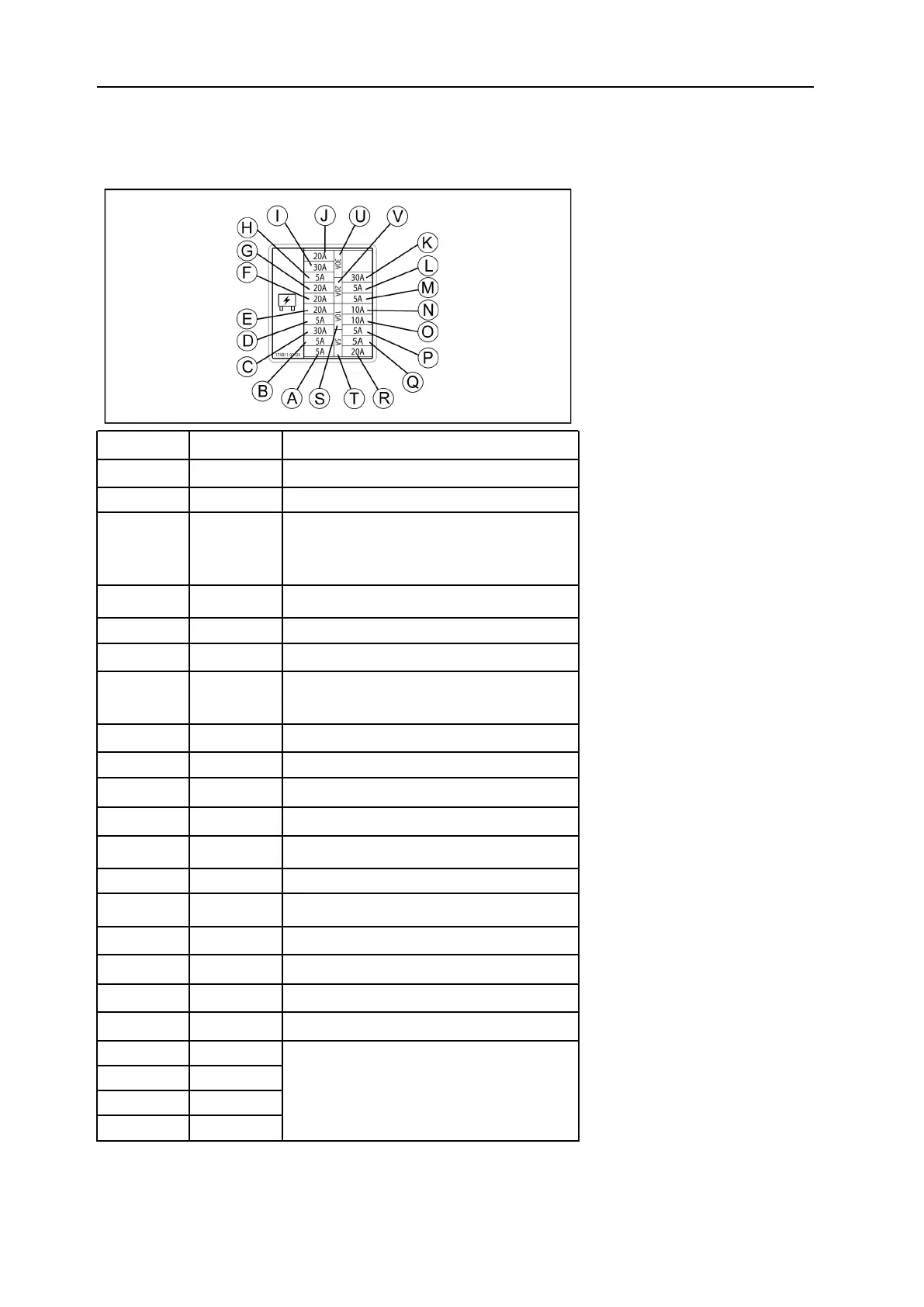

5.7.1 Fusebox
Fusebox
Symbol Fuse capacity
Circuit name
A 5
Electrical start signal
B 5 Starter
C 30
Cabin power supply
Cab lighting
Electric fuel tank filling pump
D 5
Engine Electronic Control Unit (ECU) 2
E 20 EGR valve
F 20
Air conditioning
G 20
Engine Electronic Control Unit (ECU)
Engine Electronic Control Unit (ECU) Engine
H 5
Operator display station
I 30 Power socket
J 20
Radiator ventilator
K 30
Boom headlamp
L 5
Engine Electronic Control Unit (ECU) 1
M 5
Movement alarm
N 10
P.T.O./ Quick hydraulic hitch
O 10
Safety relay
P 5
ECU2 Acc
Q
5
Engine
R 20
Windscreen wiper
S 10
Spare fuses
T 5
U 30
V 20
