9 Options
57

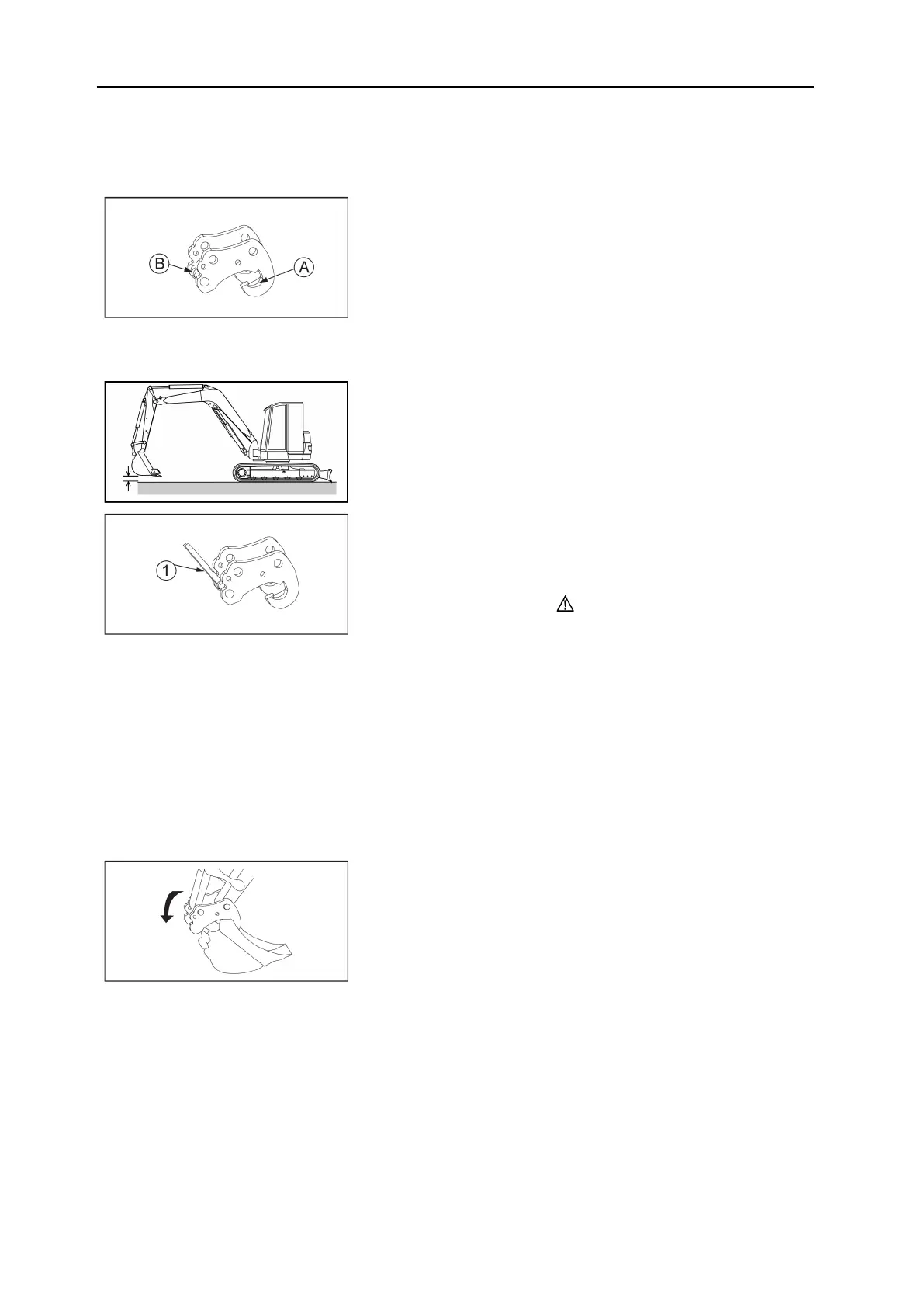

9.15.2 Mechanical quick hitch RETROMATIC MORIN
Quick hitch structure
The quick hitch system is composed of:
A= Fastening hooks
B= Locking pins
Dismantling the accessory
1. Park the machine preferably on a stable, flat and
level surface.
2. Place the accessory at about 5 cm above the
ground.
3. Be equipped with the wrench supplied with the ac-
cessory and insert it into the quick hitch hole.
4. Turn the key (1) to disengage the bucket or acces-
sory locking pin.
DANGER
By pressing the key, the bucket or accessory de-
taches and comes into contact with the ground.
Take care not to get your hands or feet crushed
by the bucket or accessory.
5. Remove the key and store it.
6. Manoeuvre the arm to disengage the tool's quick
hitch.
Mounting the accessory
1. Place the accessory on a stable, flat surface.
2. Clean all the parts.
3. Place the arm equipped with the quick hitch on the
accessory to engage the accessory hooks on the buc-
ket or accessory pin.
4. Rotate the quick hitch by slowly lowering the
boom to fully engage the quick hitch to the bucket or
the accessory.
5. Manoeuvre the bucket or accessory to low height
from the ground to see if it is locked in the quick
hitch.
To Next Page
