Yanmar ViO80-1A - Quick Hydraulic Hitch CSERI

9 Options
59

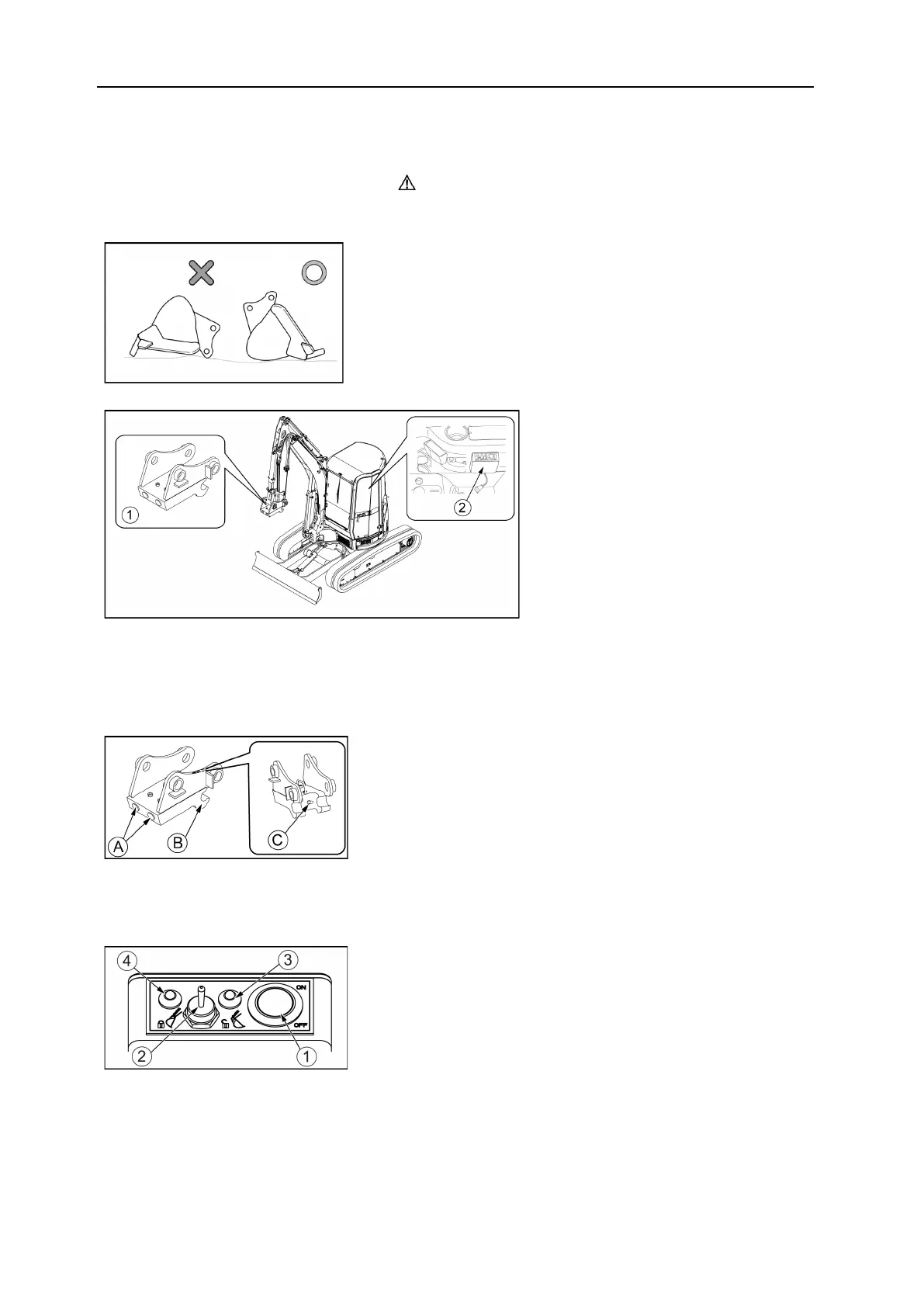

9.16 Quick hydraulic hitch CSERI
WARNING
Before mounting a bucket or an accessory on your machine, make sure that:
• the bucket or accessory is compatible with the
capabilities of your machine;
• the bucket or accessory mounting operation is
performed on a level and stable ground;
• the bucket or accessory is properly positioned
to be installed on the machine.
1= Quick hydraulic hitch
2= Quick hitch control unit
Quick hydraulic hitch
• When the locking pins retract, a indicator pin is visible in the quick hitch.
• When the locking pins are removed, the indicator pin retracts and is no longer visible.
A= Locking pins
B= Fastening hooks
C= Indicator pin
Quick hitch control unit
• Use the control box located in the cab to install or remove a bucket or an accessory.
1= Power supply contact
2= Lock switch
3= Light : Quick hitch unlocked (red)
4= Light : Quick hitch locked (green)
