5 Description of the driving position

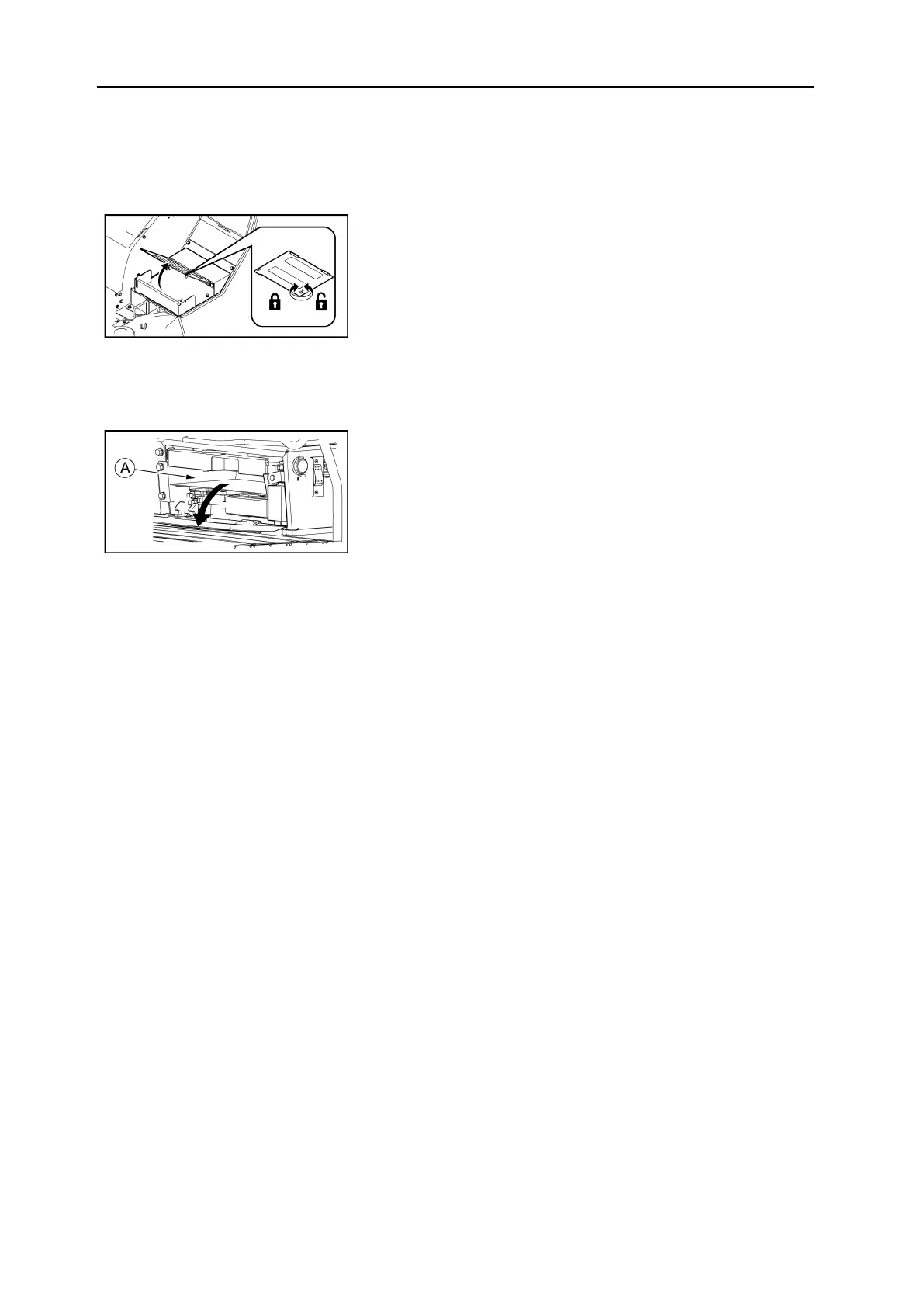

5.6 Location for the tools and user manual

5.6.1 Toolkit

• The location for the toolkit is between the cab and

cover B.

5.6.2 User manual

• The location for the user manual is under the dri-

ver's seat.

A = User manual
