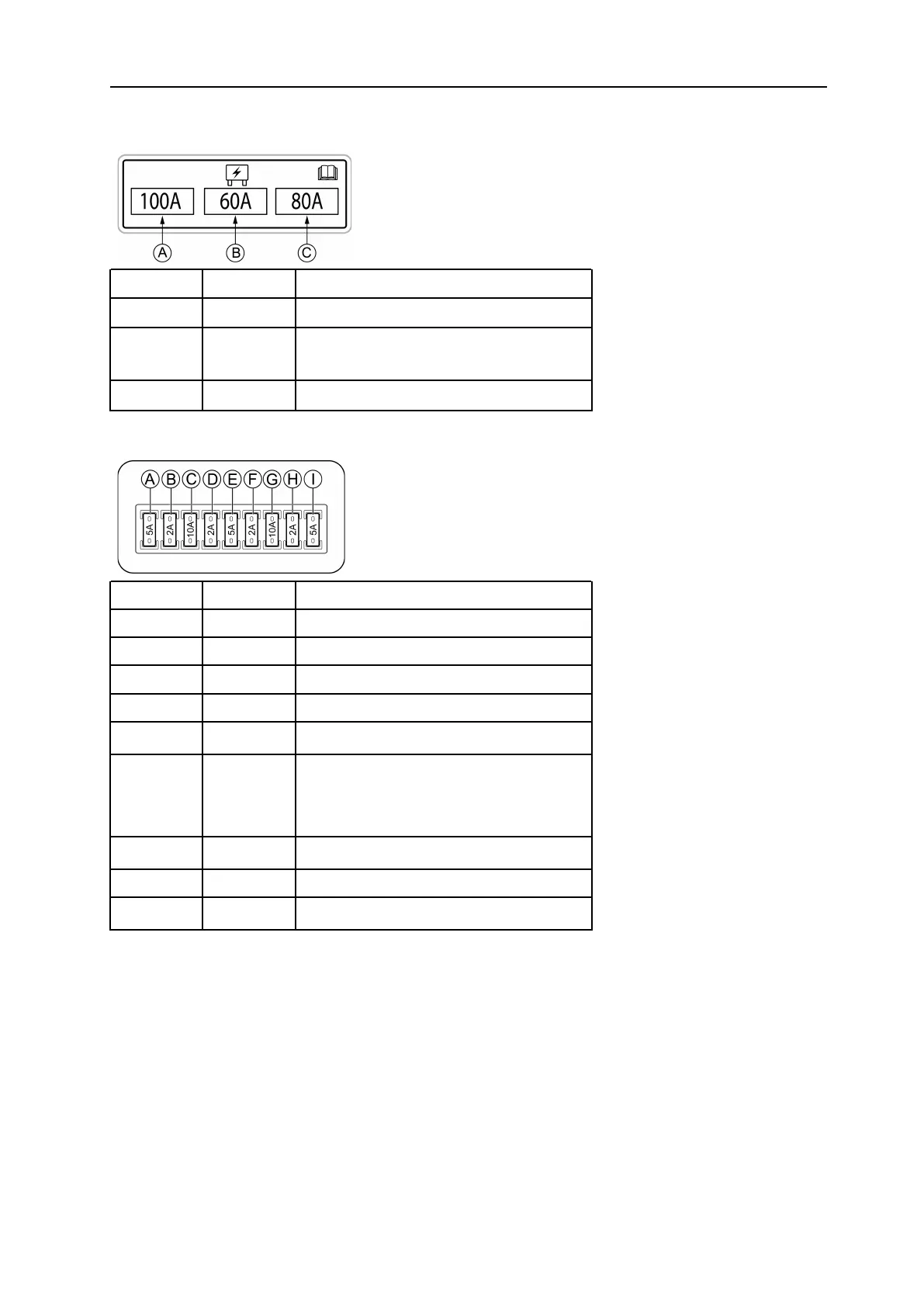

5 Description of the driving position

General supply fuses

Symbol Fuse capacity

Circuit name

A 100A

Fusebox

B 60A

Preheating relay

Bougies de préchauffage

C 80A

Starter

Power fuse options

Symbol Fuse capacity

Circuit name

A 5A

B 2A

C 10A

D 2A

E 5A

Rotating headTILTROTATOR

F 5A

Quick hydraulic hitch

• Medium pressure hydraulic line

• Continuous pressure hydraulic line

G 10A

Centralized greasing system (Options )

H 2A

I 5A

Anti theft mechanism (Options )
