Yardline OAKRIDGE 8 x 12 User Manual

34-1/4"
(87 cm)
17-3/4"
(45,1 cm)
13"
(33 cm)
1-1/2"
(3,8 cm)
(2)3"(7,6cm)
Nails
(2)3"(7,6cm)
Nails
(2)3"(7,6cm)
Nails
1-1/2"
(3,8 cm)
1-1/2"
(3,8 cm)
1-1/2"
(3,8 cm)
1-1/2"
(3,8 cm)
1-1/2"
(3,8 cm)
PARTSREQUIRED:

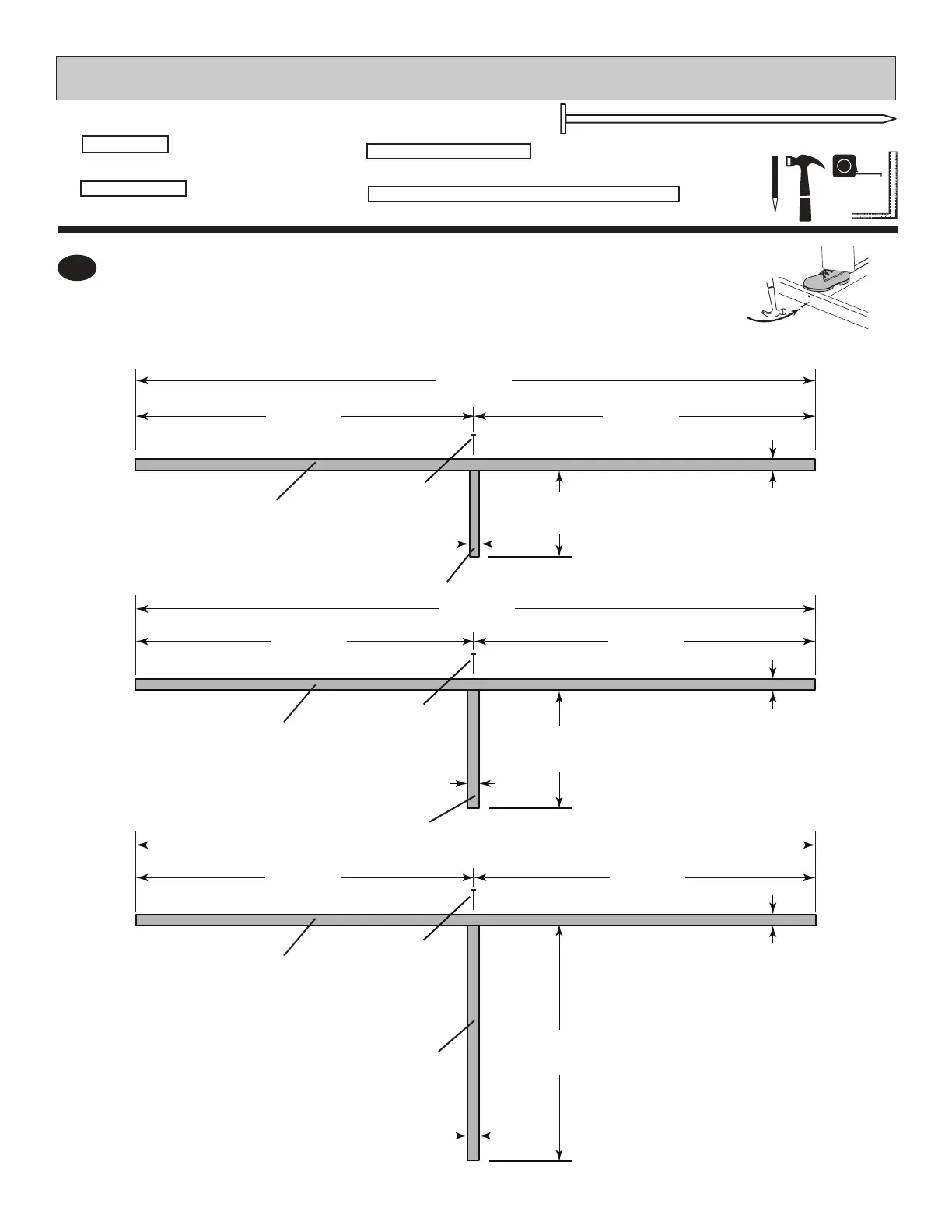

OrientXY,CWA,CXAandSZ's on edge on oor as shown.
Secure using two 3" nails at each connection.
BEGIN
¸
1
x1
2 x 4 x 17-3/4" (5 x 10,2 x 45,1 cm)
CXA
x1
2 x 4 x 34-1/4" (5 x 10,2 x 87 cm)
XY
x3
2 x 4 x 89" (5 x 10,2 x 226,1 cm)
SZ
SZ
SZ
SZ
44-1/2"
(113,1 cm)
44-1/2"
(113,1 cm)
44-1/2"
(113,1 cm)
89"
(226,1 cm)
89"
(226,1 cm)
89"
(226,1 cm)
44-1/2"
(113,1 cm)
44-1/2"
(113,1 cm)
44-1/2"
(113,1 cm)
CWA
x1
2 x 4 x 13" (5,1 x 10,2 x 33 cm)
x6
3" (7,6 cm)
20
BACK WALL FRAME
CWA
XY
CXA
