5 Installation Procedure
16 YASKAWA ELECTRIC SIEP C730600 43B 1000-Series Option SI-N3 Technical Manual
Connection Diagram

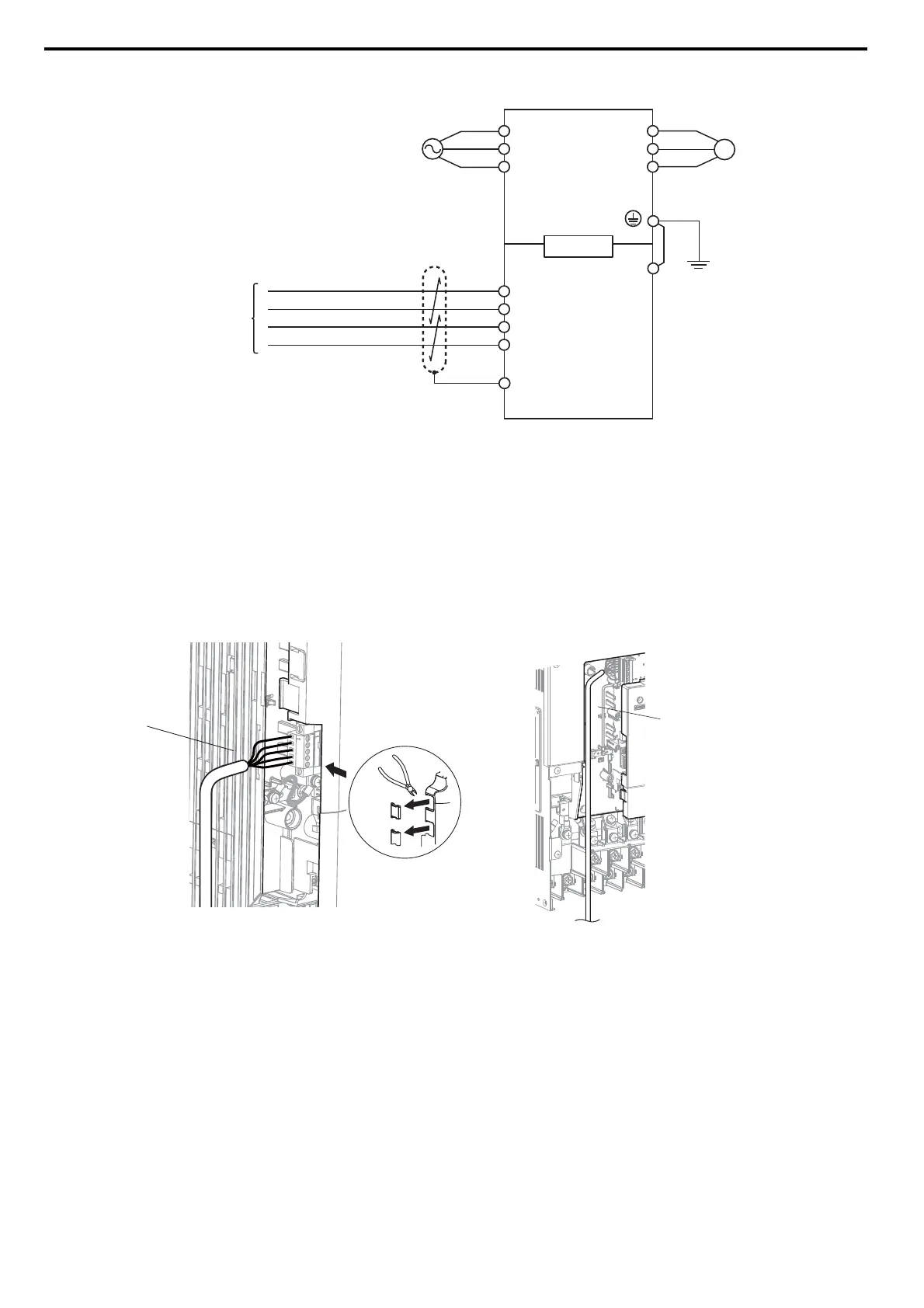

Figure 10
Figure 10 Option Connection Diagram
<1> The ground wire provided in the option shipping package must be connected during installation.
7.
Route the option wiring.
Depending on the drive model, some drives may require routing wire through the side of the front cover to the
outside. In these cases, cut out the perforated openings in the left side of the drive front cover as shown in
Figure 11-A, and leave no sharp edges to damage wiring.
Route the wiring inside the enclosure as show in Figure 11-B for drives that do not require routing through the
front cover. Refer to the Peripheral Devices & Options section of the drive Technical Manual for more
information.
Figure 11
Figure 11 Wire Routing Examples
8. After wiring the terminal block, recheck the option wire routing performed in step 7.
A – Route wires through the
openings provided on the
left side of the front cover.
<1>
<1> The drive will not meet NEMA Type 1 requirements if wiring is exposed outside the
enclosure.
B – Use the open space
provided inside the drive
to route option wiring.
Drive
SI-N3
M
U
V
W
R
V+
V-
CAN_H
CAN_L
Shield
S
T
CN5-A
FE
<1>
DeviceNet Master
or
drop line
DeviceNet Cable
MotorPower
（Red）
（Black）
（White）
（Blue）
B
A
