5 Installation Procedure
YASKAWA ELECTRIC SIEP C730600 43B 1000-Series Option SI-N3 Technical Manual 17
9. Replace and secure the front covers of the drive (C, F) and replace the digital operator (D).

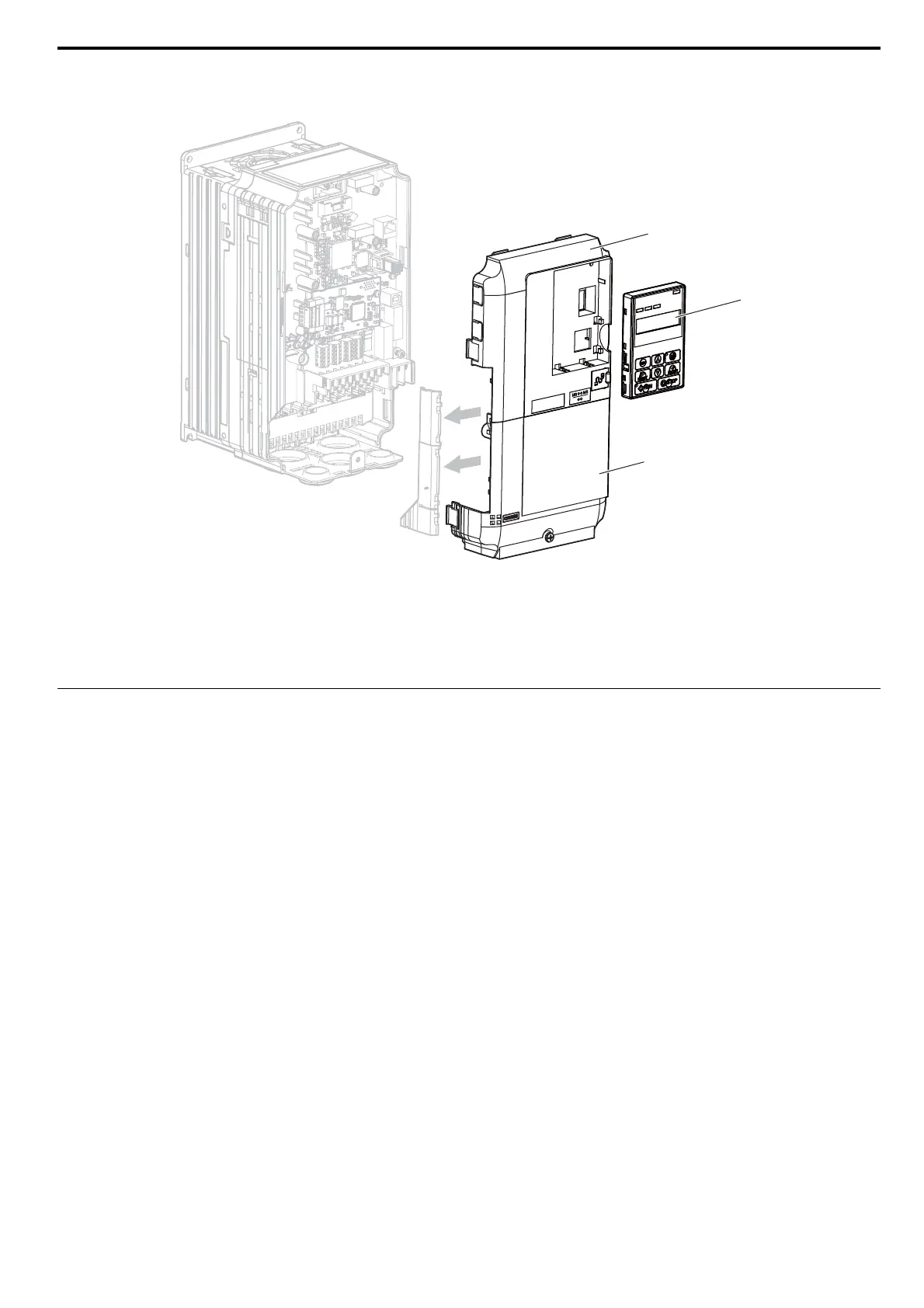

Figure 12
Figure 12 Replace the Front Covers and Digital Operator
Note: Take proper precautions when wiring the option so that the front covers will easily fit back onto the drive. Make sure no cables
are pinched between the front covers and the drive when replacing the covers.
10. Set drive parameters in Table 6 for proper option performance.
 Option MAC ID
 Parameter F6-50, MAC ID Setting 0 to 64
The option MAC ID is set with drive parameter F6-50. MAC ID settings between 0~63 are considered valid MAC IDs;
setting 64 indicates a network-settable MAC ID.
The option reads the MAC ID value from F6-50 upon power-up and upon a network reset.
F
C
D

YASKAWA 1000 Series Specifications

General

Series	1000 Series
Category	DC Drives
Cooling Method	Forced air cooling
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Communication Interface	Modbus RTU
Storage Temperature	-20°C to +60°C
Humidity	5% to 95% (non-condensing)
Enclosure Rating	IP20
Input Voltage	200-240V AC, 380-480V AC
