Configuration Web Page
The configuration page contains the standard header and footer along with a method of configuring the EtherNet/IP server and web server
interfaces of the V7 EtherNet/IP Option Kit.

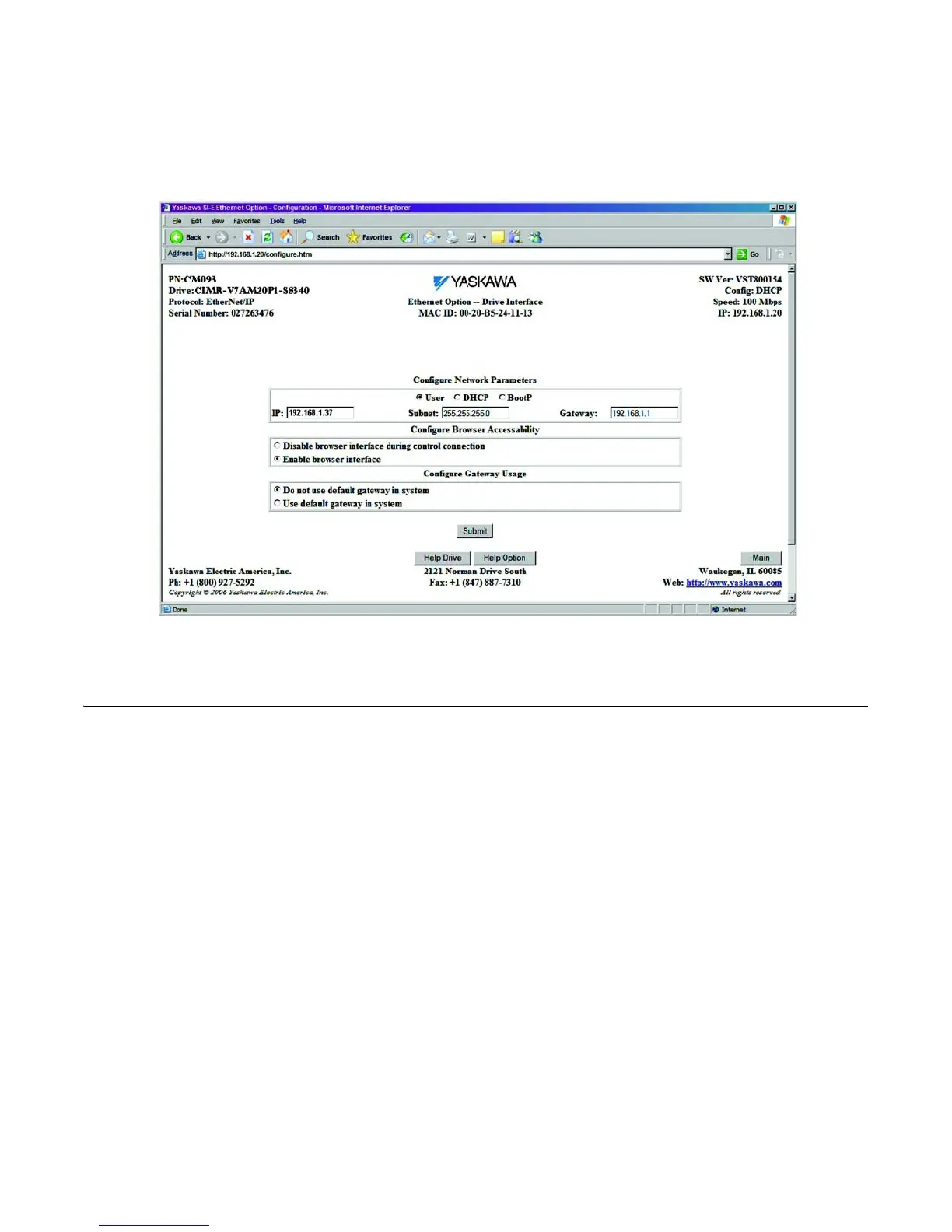

Fig 2.2 – Local Network Setup
 Web Server Configuration
The web server configuration allows for the setting of the IP Address, Subnet Mask, Gateway and EtherNet/IP server type. All octets must
contain valid numbers between 0 and 255. The Submit button must be pressed, the accepted page displayed and the drive power cycled
before any changes are effective.
1. Configure Network Parameters.
2. IP: A series of four (4) octets separated by "." that determines the current V7 EtherNet/IP Option Kit address.
3. SubNet: A series of four (4) octets separated by "." that determines the V7 EtherNet/IP Option Kit local area network.
4. Gateway: A series of four (4) octets separated by "." that determines the IP Address of the gateway server. If a gateway server is not
used, select Do not use default gateway in system. The gateway must contain a valid IP address whether it is used or not and must not
be blank.
5. Address Configuration Mode:
5.1 USER: The user enters The IP address via the web interface.
5.2 DHCP: The IP Address is set by a DHCP server and not by the user via the web interface.
5.3 BootP: The IP Address is set by a BootP server and not by the user via the web interface.
Note: Verify that a DHCP or BootP server determines the network address before selecting either.
6. Browser Access Configuration: In order to use the web pages for diagnostics, Enable browser interface must be selected.
