Network Diagnostics Web Page
The network diagnostics page displays the standard header and footer along with information relative to network and V7 EtherNet/IP
Option Kit performance.

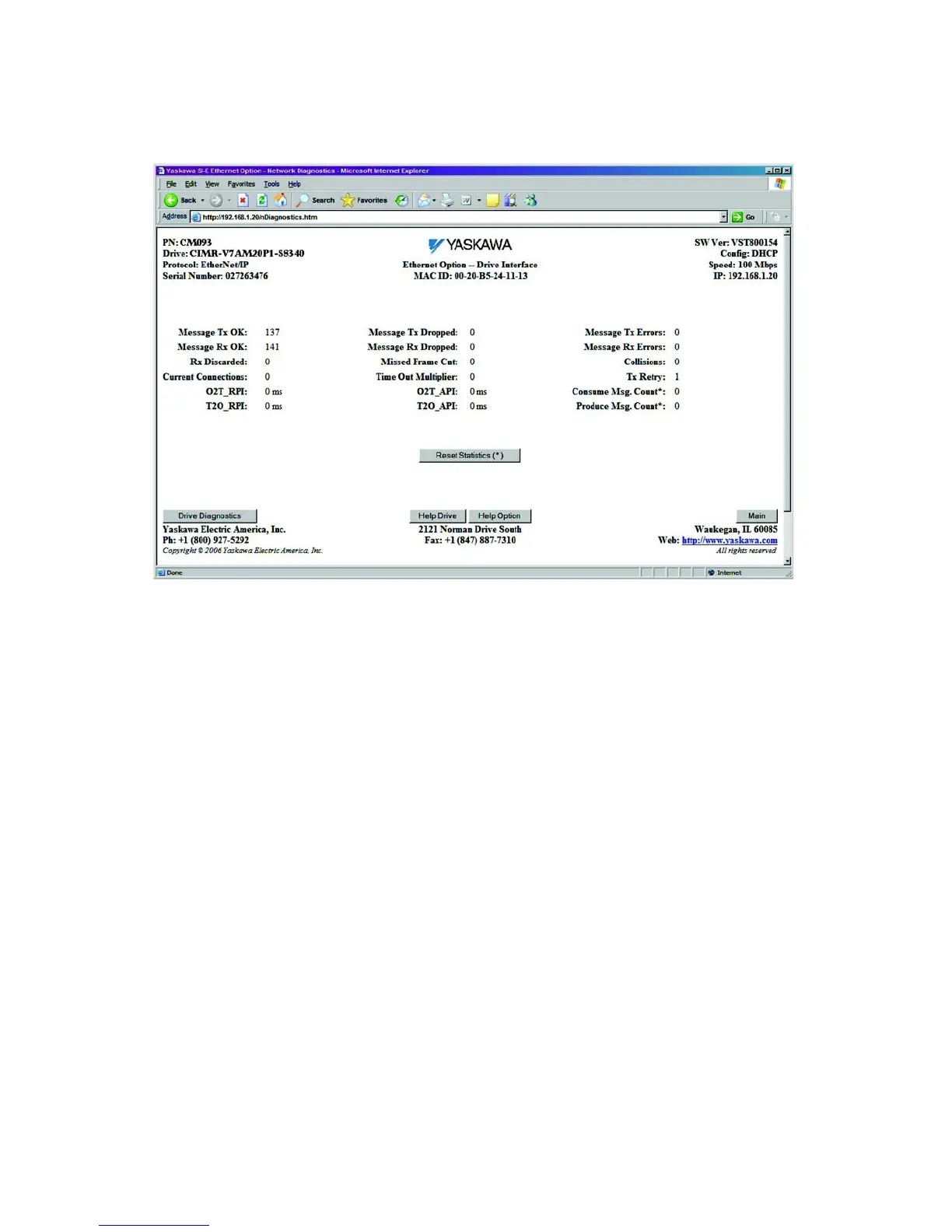

Fig 2.4 – Network Diagnostics Web Page
1. Message Tx OK: Transmit Message Count: The number of messages sent from the V7 EtherNet/IP Option Kit.
2. Message Rx OK: Receive Message Count: The number of messages received by the V7 EtherNet/IP Option Kit.
3. Rx Discarded: Received Messages Discarded: The number of received messages discarded by the V7 EtherNet/IP Option Kit.
4. Current Connections: The number of established connections used on the V7 EtherNet/IP Option Kit. This is the total of explicit,
implicit and DriveWizard
TM
connections.
5. O2T RPI: The time interval for Master to Slave messaging during I/O connection (ms).
6. T2O RPI: The time interval for Slave to Master messaging during I/O connection (ms).
7. Message Tx Dropped: Dropped Transmit Messages: The number of dropped transmit messages sensed on the V7 EtherNet/IP Option
Kit.
8. Message Rx Dropped: Dropped Receive Messages: The number of dropped receive messages sensed on the V7 EtherNet/IP Option
Kit.
9. Missed Frame Cnt: The number of missed frame errors sensed on the V7 EtherNet/IP Option Kit.
10. Time Out Multiplier: The current timeout multiplier for I/O messages received from the master controller, during the I/O connection.
11. O2T API: The time interval for Master to slave setup messaging during I/O connection (ms).
12. T2O API: The time interval for Slave to Master setup messaging during I/O connection (ms).
13. Message Tx Errors: Transmit Message Errors: The number of error messages sent from the V7 EtherNet/IP Option Kit due to not
processing or incorrect processing.
14. Message Rx Errors: Receive Message Errors: The number of error messages received on the V7 EtherNet/IP Option Kit due to not
processing or incorrect processing.
15. Collisions: The number of collisions sensed on the V7 EtherNet/IP Option Kit.
16. Tx Retry: Transmit Retries: The number of transmit retries on the V7 EtherNet/IP Option Kit due to media collisions or
non granted access to the media.
17. Consumed Msg Cnt: The number of consumed messages.
18. Produced Msg Cnt: The number of produced messages.
19. Reset Statistics (*): Button to reset all counters.
