 RS-485 2-Wire Network
RS-485 2-wire networks can be either single or multi-drop networks, with each slave device on the network assigned a unique node address. A
maximum of 31 devices may reside on any network segment before a repeater is required. The maximum segment length is 4000 ft (1200 m).
Set the Termination Resistor S1 switch to ON (slide the switch to the right) on the last device on the network. RS-485 2-wire communication
requires RTS (request to send) control. See parameter H5-07.

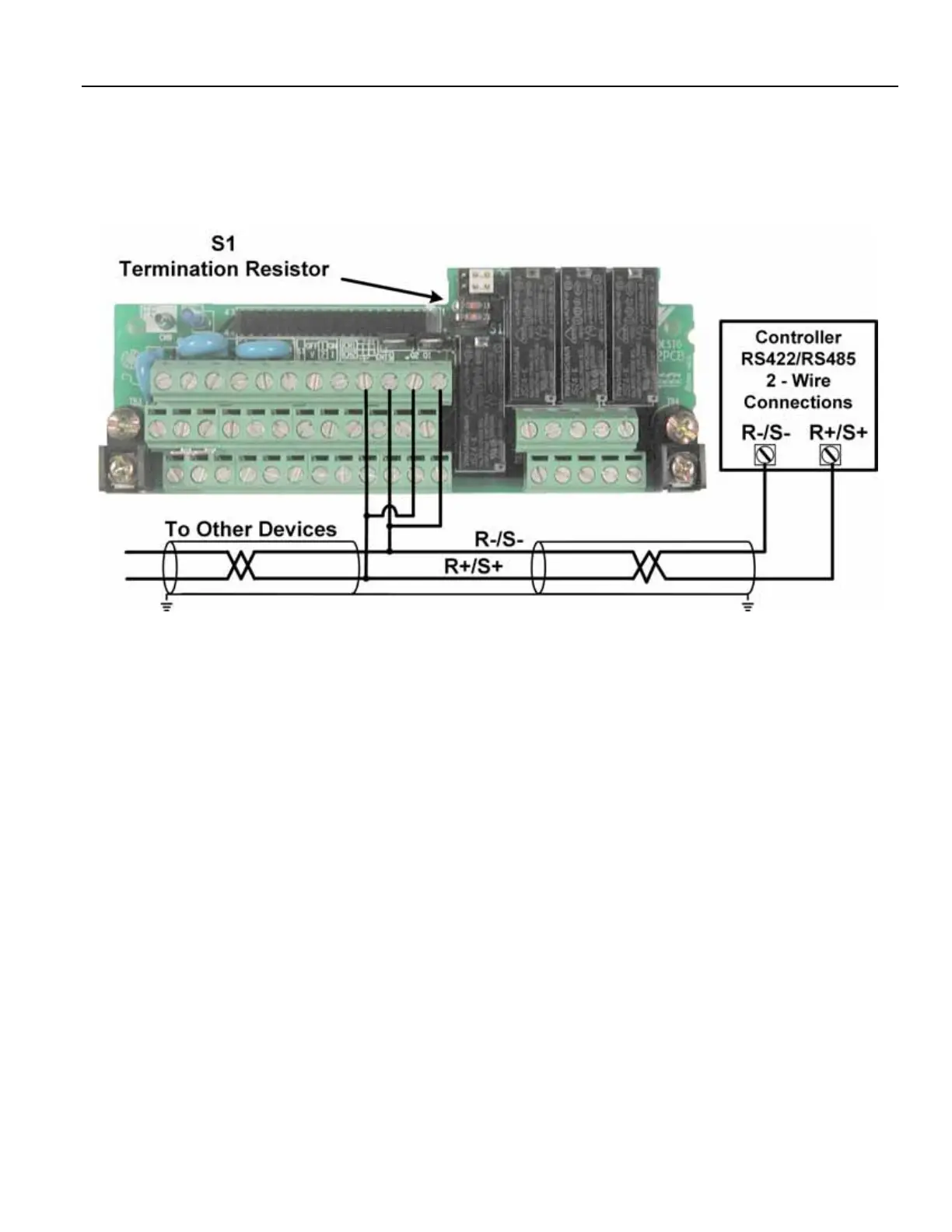

Figure 1.5 RS-485 2-Wire Network Connection

YASKAWA G7 Specifications

General

Type	DC Drive
Enclosure Rating	IP20
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Communication Interface	RS-485
Humidity	5 to 95% (non-condensing)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
