3.2 Function Modules
Self Configuration
3-41
4. Confirm that the status indicators on the CPU Unit change in the following way:
• RDY: Goes out, and then lights.
• RUN: Goes out, flashes, and then lights.

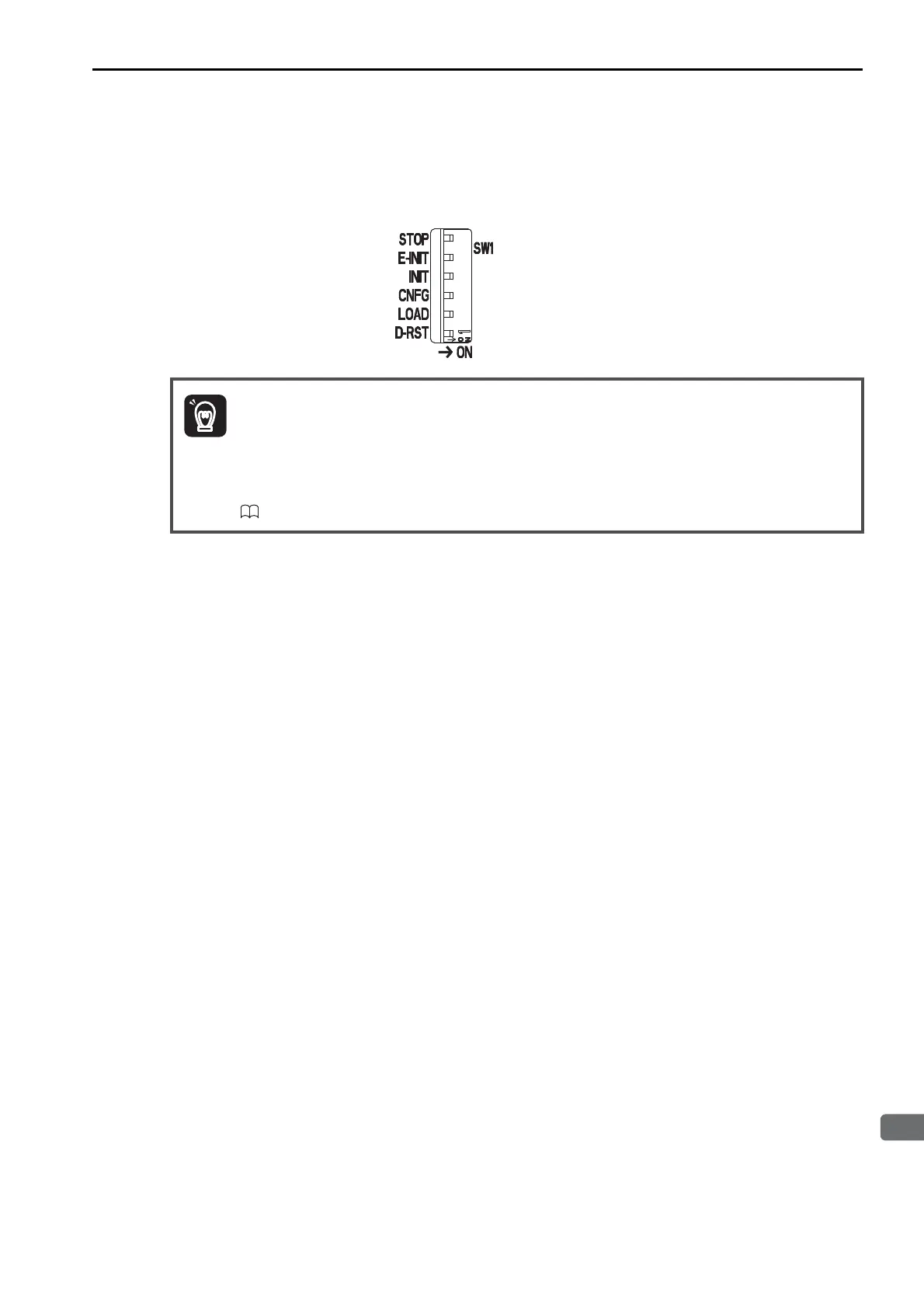

5. Turn OFF the CNFG pin on the SW1 DIP switch on the CPU Unit.
Power Interruptions after Self Configuration
After performing self configuration, turn OFF the power supply to the Machine Controller only after
the definition data is saved to the flash memory of the Machine Controller.
If by chance, the power supply is turned OFF before the data is saved, perform self configuration
again.
Refer to the following manual for details on saving data to the flash memory.
MP2000/MP3000 Series Machine Controller System Setup Manual (Manual No.: SIEP C880725 00)
