3 Electrical Installation
30 YASKAWA ELECTRIC TOEP C710616 38H YASKAWA AC Drive-L1000A Quick Start Guide
2. Pull forward on the terminal cover to free it from the drive.

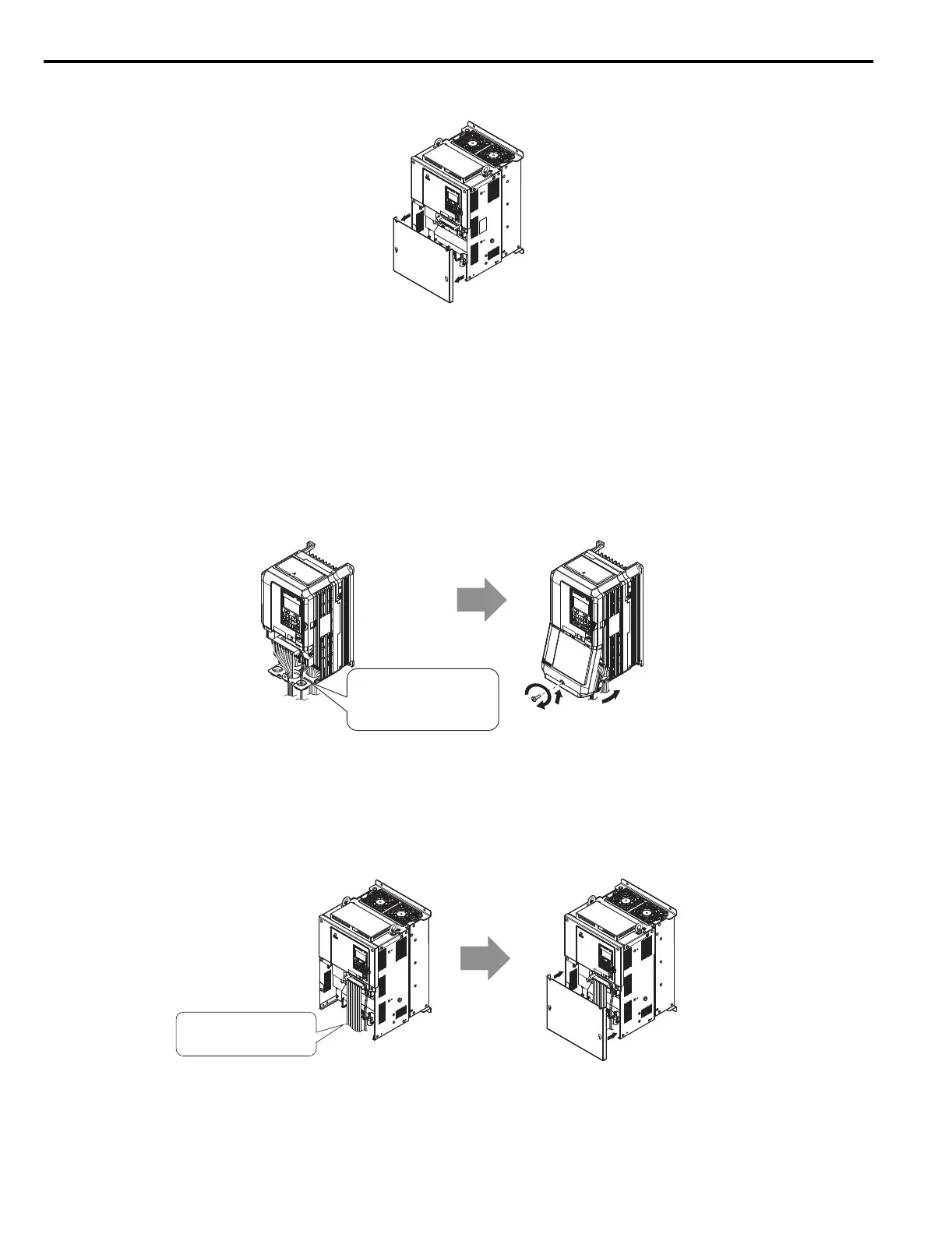

Figure 11
Figure 11 Removing the Terminal Cover
Reattaching the Terminal Cover
Models CIMR-LU20008 to 20075, 40005 to 40039, and 50003 to 50027
Power lines and signal wiring should pass through the opening provided. Refer to Wiring the Main Circuit Terminal on
page 46 and Wiring the Control Circuit Terminal on page 51 for details on wiring.
NOTICE: Equipment Hazard. Separate motor and/or braking circuit wiring (terminals, U/T1, V/T2, W/T3, +3, +2, +1,(-), B1, B2, from all
other wiring. Place motor wiring within its own conduit or cable tray with appropriate divider, and use shielded motor cable where
appropriate. Improper wiring practices could result in malfunction of drive due to electrical interference.
Reattach the terminal cover after completing the wiring to the drive and other devices.
Figure 12
Figure 12 Reattaching the Terminal Cover
Models CIMR- LU20085 to 20415, 40045 to 40605, and 50003 to 50027
After wiring the terminal board and other devices, double-check connections and reattach the terminal cover. Refer to
Wiring the Main Circuit Terminal on page 46 and Wiring the Control Circuit Terminal on page 51 for details on
wiring.
Figure 13
Figure 13 Reattaching the Terminal Cover
YEA_common
Connect ground wiring first,
followed by the main circuit,
and then wire the control circuit.
Power lines and signal wiring
exit through the opening provided.
YEA_common
Connect ground wiring first,
followed by the main circuit,
and then wire the control circuit.
YEA_common
