150 YASKAWA ELECTRIC TOEP C710616 38H YASKAWA AC Drive-L1000A Quick Start Guide
7 Option Card Installation
7 Option Card Installation
This section provides instructions on installing the option cards listed in Table 45.
◆ Prior to Installing the Option
Prior to installing the option, wire the drive, make the necessary connections to the drive terminals, and verify that the
drive functions normally. Refer to the Table 45 for information on wiring and connecting the drive.
Table 45 below lists the number of option cards that can be connected to the drive and the drive connectors for connecting
those option cards.
Table 45 Option Card Installation

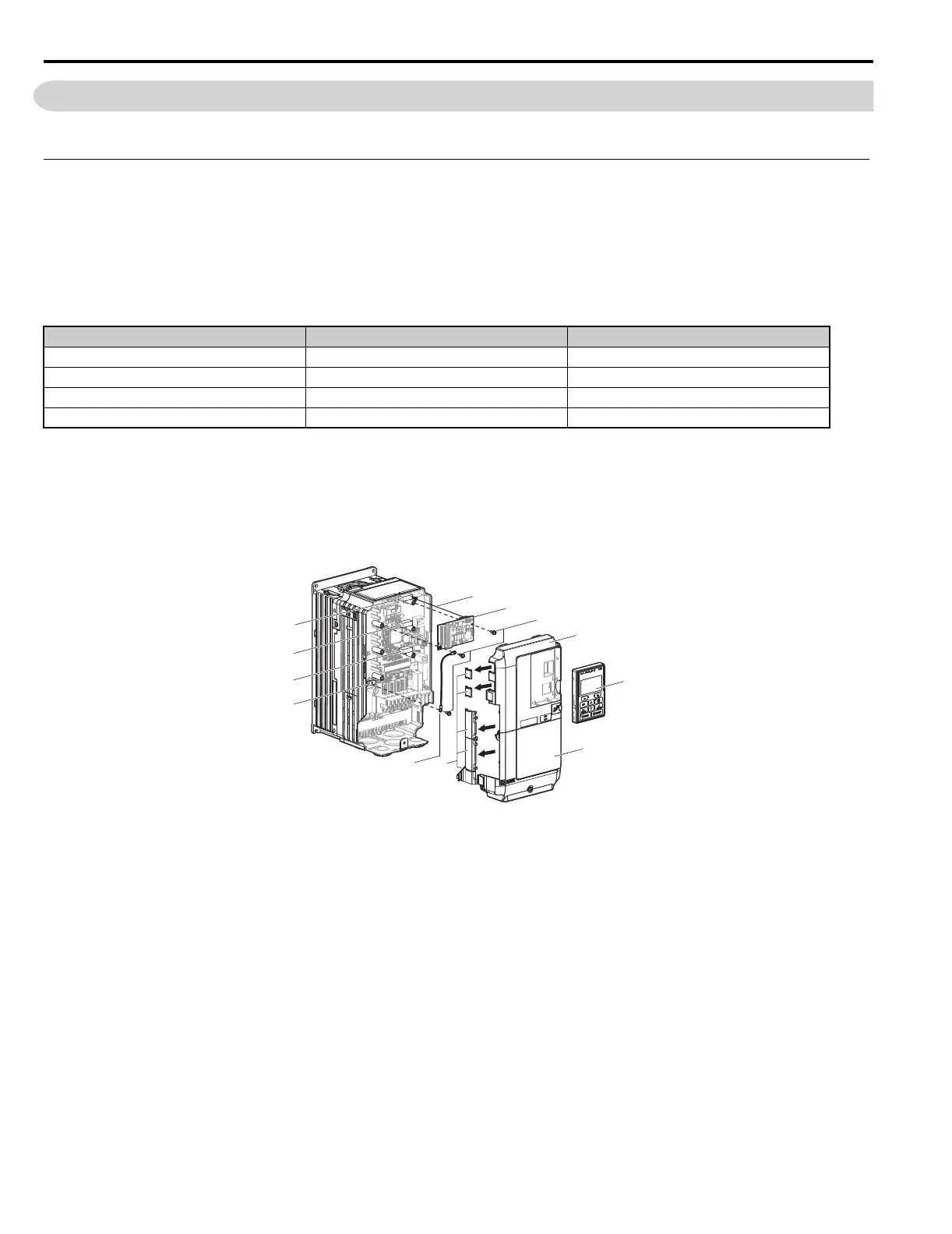

Figure 83 shows an exploded view of the drive with the option and related components for reference.
Figure 76
Figure 83 Installing an Option Card
Option Card
<1> If two PG option cards are connected, use both CN5-B and CN5-C. If only one PG option card is connected to the drive, use the CN5-C
connector.
<2> These option cards are not available for the application with Motor 2 Selection.
<3> When DI-A3 is to be used as monitors, the card can be connected to any of CN5-A, CN5-B or CN5-C. The input status of DI-A3 can
then be viewed using U1-17.
Connector Number of Cards Possible
PG-B3, PG-X3 CN5-C 2
<1>
PG-F3 <2>, PG-E3 CN5-C 1
DO-A3, AO-A3 CN5-A, B, C 1
SI-S3, DI-A3
<3> CN5-A 1
A – Insertion point for CN5 G – Removable tabs for wire routing
B – Option card H – Ground wire
C – Included screws I – Drive grounding terminal (FE)
D – Front cover J – Connector CN5-A
E – Digital operator K – Connector CN5-B
F – Terminal cover L – Connector CN5-C
G
A
B
C
H
D
E
F
I
J
K
L
TOEP_C710616_38H_7_0.book 150 ページ ２０１５年１１月１１日 水曜日 午後７時４０分
