9.3.5.10 Refilling grease at T-axis gear

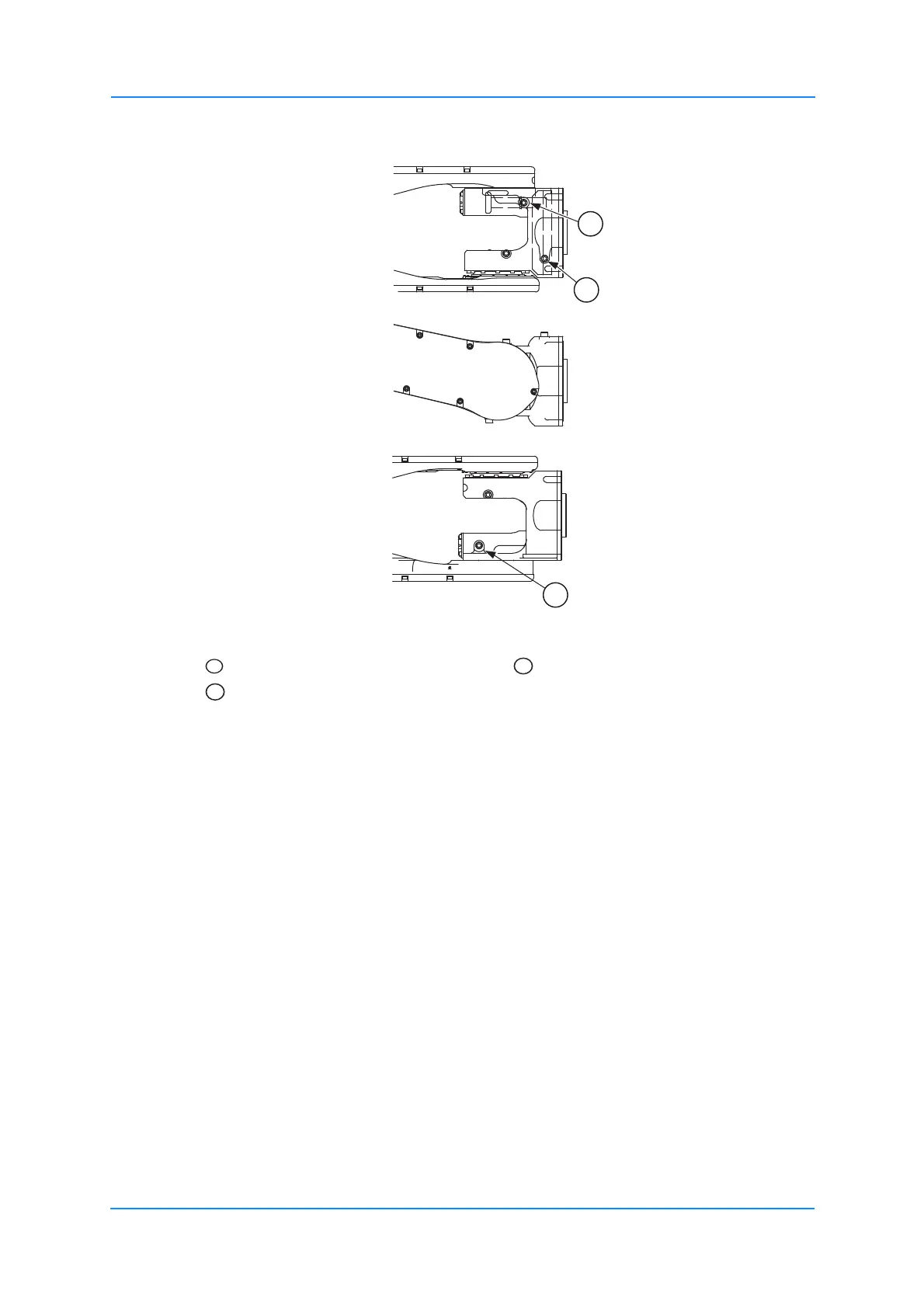

Fig. 9-14: T-axis gear
See figure "T-axis gear diagram".
1. Remove plug from grease exhaust port and grease inlet port.
2. Install lubricating nipple to grease inlet port.
3. Squeeze grease by grease gun in grease inlet port.
– Amount of grease: 11 cm³ / approx. 10 g
4. Move T-axis gear for a few minutes to discharge excess grease.
5. Wipe away excess grease with a cloth. Remove the grease zerk from the grease inlet
port, and reinstall the plug. Before mounting the plug, apply Teroson Plast sealing
compound (material no. 143813) to thread part.
Grease inlet 2 Grease inlet 1
Grease exhaust port
1
3
2
