YASKAWA P1000 Series User Manual

n
External Mounting Dimensions
Mounting Dimensions for Flange Type 4TooooU Models
Eye Bolts
with M8 Screw
8-Mounting Holes for M6 Screw
97 (3.82)
258 (10.16)
3
(0.12)
153.6 (6.05)
8.5 (0.33) 96.5 (3.80) 250 (9.84) 96.5 (3.80)
470.2 (18.51)
412.2 (16.23)
23.9 (0.94)
23.9 (0.94)
460 (18.11)
280.2 (11.03)
330 (12.99)
103 (4.06) 103 (4.06)
153.8 (6.06) 153.8 (6.06)
239 (9.41)
unit: mm (inch)

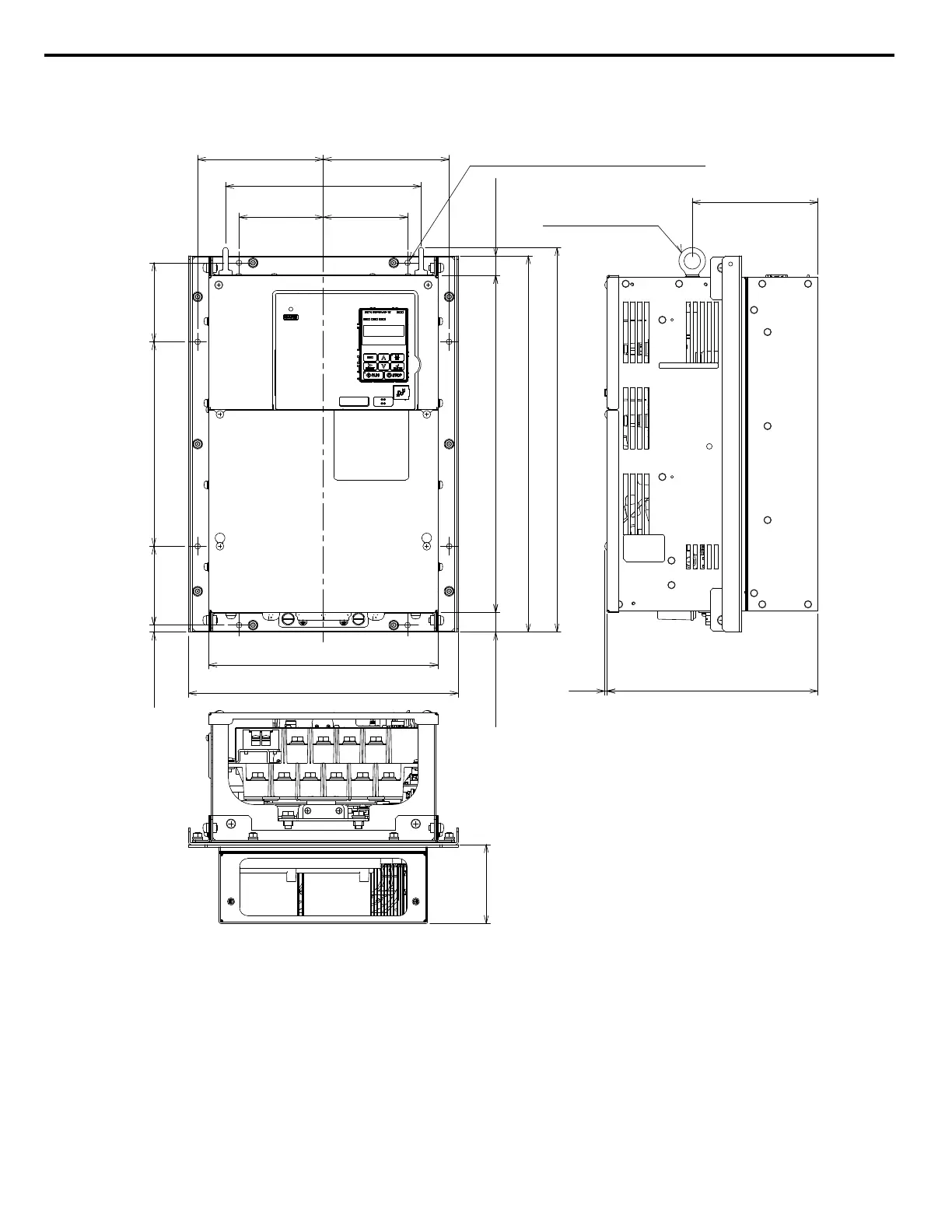

Figure 22 Flange Type Model 4T0058U Mounting Dimensions
8 Specifications
46
YASKAWA TOEP YAIP1U 04A YASKAWA AC Drive – P1000 6-Phase/12-Pulse Input Installation Manual

YASKAWA P1000 Series Specifications

General

Series	P1000
Voltage Classes	200 V, 400 V, 600 V
Frequency	50/60 Hz
Humidity	95% RH or less (non-condensing)
Type	AC Drive
Control Method	V/f Control
Ambient Temperature	-10 to +50°C (14 to 122°F)
Communication Options	Modbus RTU
Protection Features	Overvoltage, Undervoltage
Overload Capacity	150% for 60 seconds
Storage Temperature	-20°C to +60°C (-4 to 140°F)
Cooling Method	Fan cooled
Horsepower Range	0.5 to 500 HP
