YASKAWA P1000 Series

Eye Bolts
with M12 Screw
131.8
(5.19)
174
(6.84)
151.25
(5.95)
151.25
(5.95)
151.25
(5.95)
151.25
(5.95)
167.5 (6.59)
167.5 (6.59)
167.5 (6.59)
167.5 (6.59)
112 (4.41)
3
(0.12)
370 (14.57)
500 (19.69)
160
(6.30)
54.8 (2.16)
645 (25.39)
1105.4 (43.52) 861.4 (33.91)
956 (37.64)
74.8 (2.94)
121.7 (4.79)
122.3 (4.81) 74.6 (2.94)
123.4 (4.86)
unit: mm (inch)
22-Mounting Holes
for M10 Screw

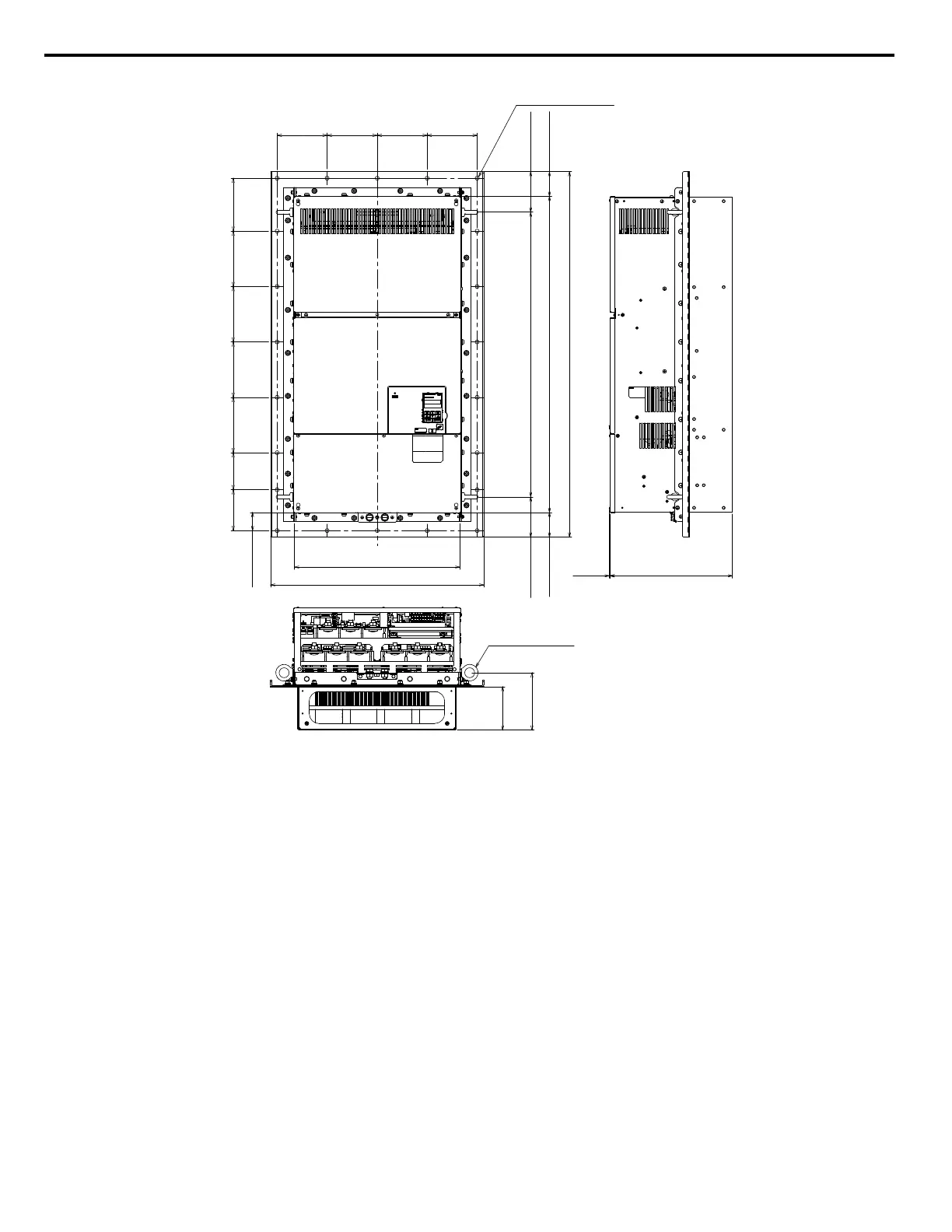

Figure 28 Flange Type Model 4T0414U Mounting Dimensions
