Panel Cutout Dimensions
Panel Cutout Dimensions for Flange Type 4TooooU Models
CUTOUT
NOTES:
1. CUTOUT TOLERANCES:
+/- 0.02 in. [0.5 mm]
2. EXPOSED HEATSINK DEPTH
3. MINIMUM RECOMMENDED PANEL
THICKNESS: 12 GA
D=3.82 in. [97 mm] MINUS PANEL THICKNESS
(8)-1/4 in. [M6]
THREADED HOLES
Unit: in. [mm]

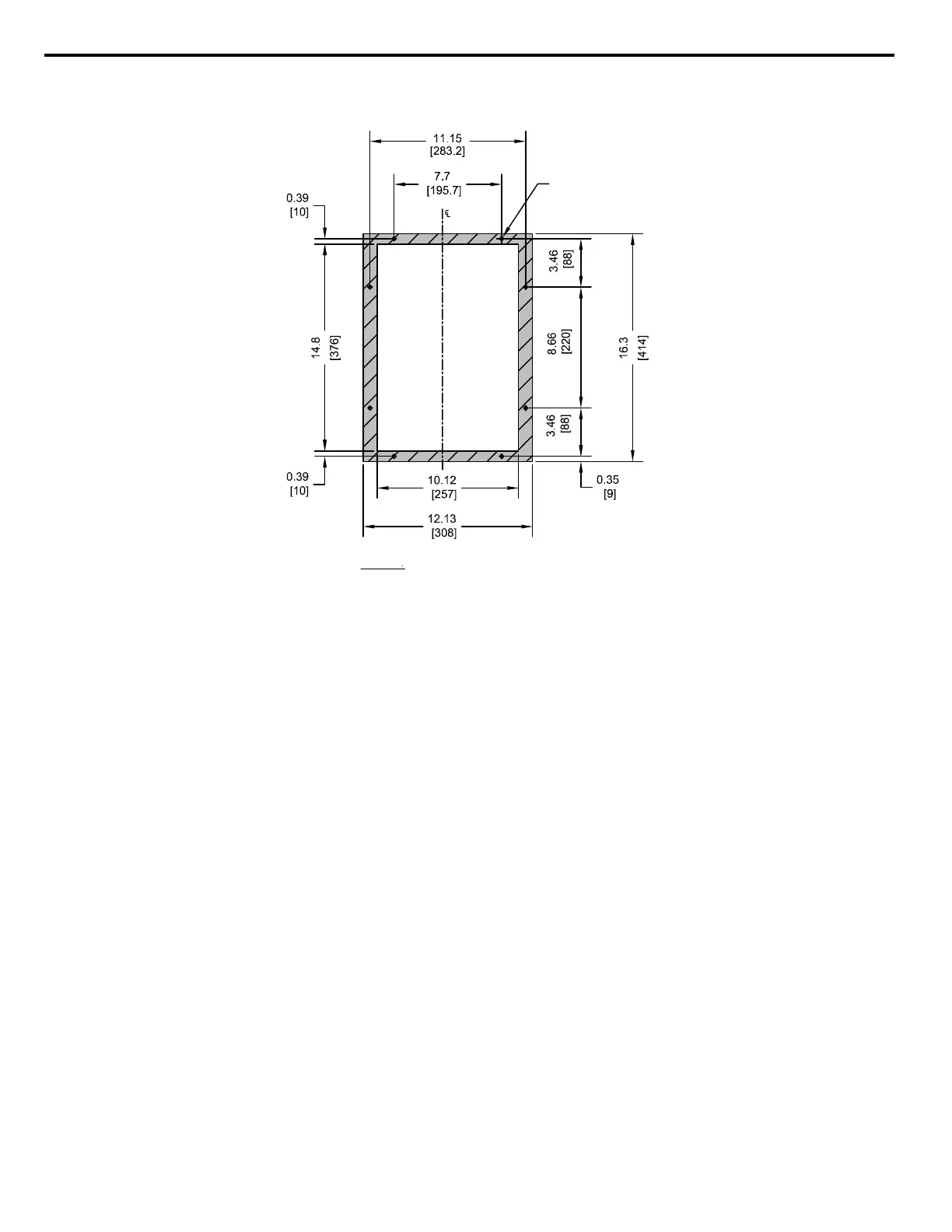

Figure 38 Flange Type Model 4T0058U Panel Cutout Dimensions
8 Specifications
62
YASKAWA TOEP YAIP1U 04A YASKAWA AC Drive – P1000 6-Phase/12-Pulse Input Installation Manual

YASKAWA P1000 Series Specifications

General

Series	P1000
Voltage Classes	200 V, 400 V, 600 V
Frequency	50/60 Hz
Humidity	95% RH or less (non-condensing)
Type	AC Drive
Control Method	V/f Control
Ambient Temperature	-10 to +50°C (14 to 122°F)
Communication Options	Modbus RTU
Protection Features	Overvoltage, Undervoltage
Overload Capacity	150% for 60 seconds
Storage Temperature	-20°C to +60°C (-4 to 140°F)
Cooling Method	Fan cooled
Horsepower Range	0.5 to 500 HP
