YASKAWA P1000 Series

CUTOUT
NOTES:
1. CUTOUT TOLERANCES:
+/- 0.02 in. [0.5 mm]
2. EXPOSED HEATSINK DEPTH
3. MINIMUM RECOMMENDED PANEL
THICKNESS: 10 GA
D=7.71 in. [196 mm] MINUS PANEL THICKNESS
(20)-3/8 in. [M10]
THREADED HOLES
Unit: in. [mm]

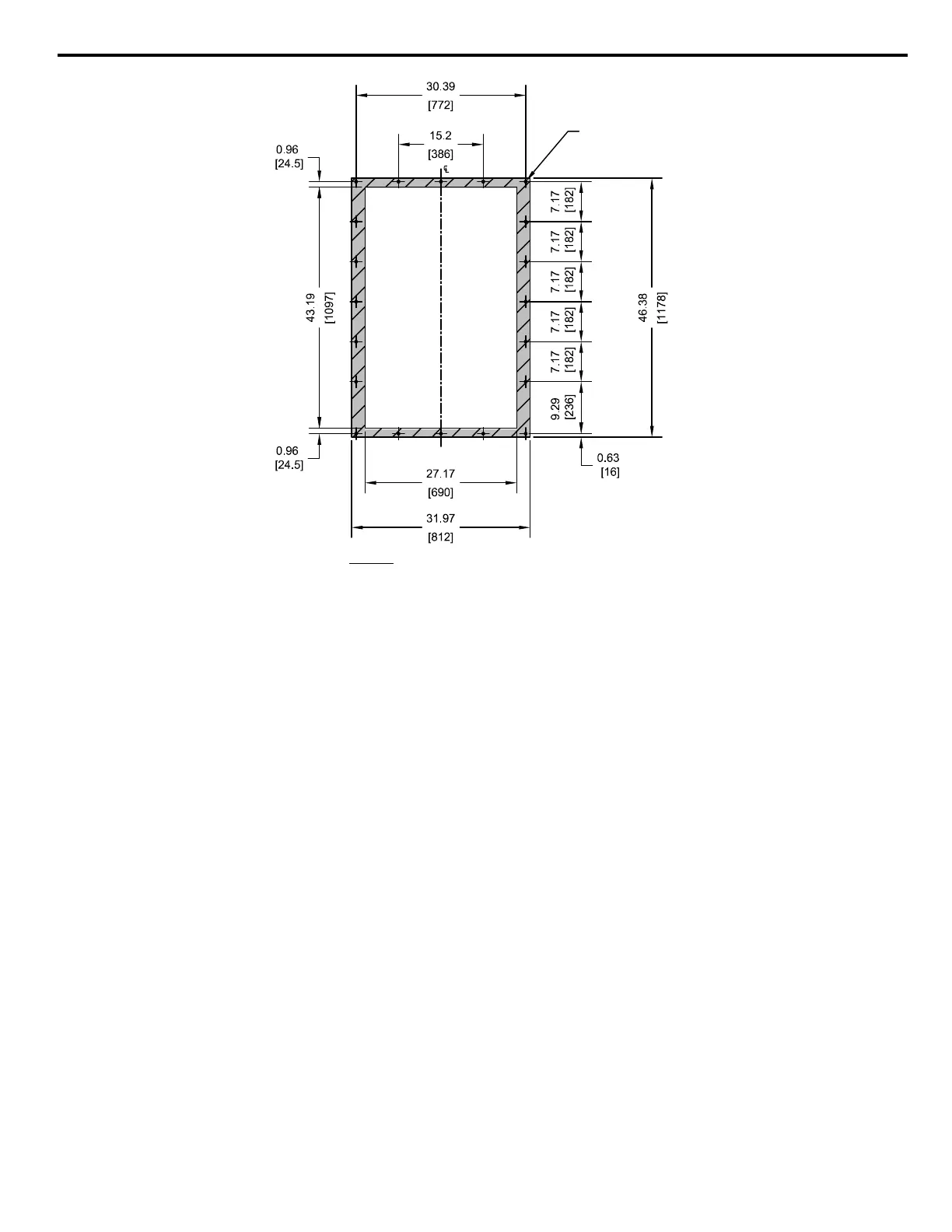

Figure 45 Flange Type Models 4T0515U and 4T0675U Panel Cutout Dimensions
8 Specifications
YASKAWA TOEP YAIP1U 04A YASKAWA AC Drive – P1000 6-Phase/12-Pulse Input Installation Manual
69
