YASKAWA P1000 Series User Manual

Panel Cutout Dimensions for Non-Flange Type 4TooooA Models
1.97
[50]
1.97
[50]
4.72
[120]
4.72
[120]
1.18
[30]
1.18
[30]
(4)-1/4"
[M6]
NOTE:
EXPOSED HEATSINK DEPTH
D=3.94" MINUS PANEL THICKNESS
AIR
AIR
15.16±.02 [385±0.5] 15.75±.02 [400±0.5]
7.68±.02 [195±0.5]
9.84±.02 [250±0.5]
14.53±.02 [369±0.5]
9.21±.02 [234±0.5]
CUTOUT
0.31
[8]
0.31
[8]
0.3
[7.5]
℄
AIR
AIR
Unit: in. [mm]

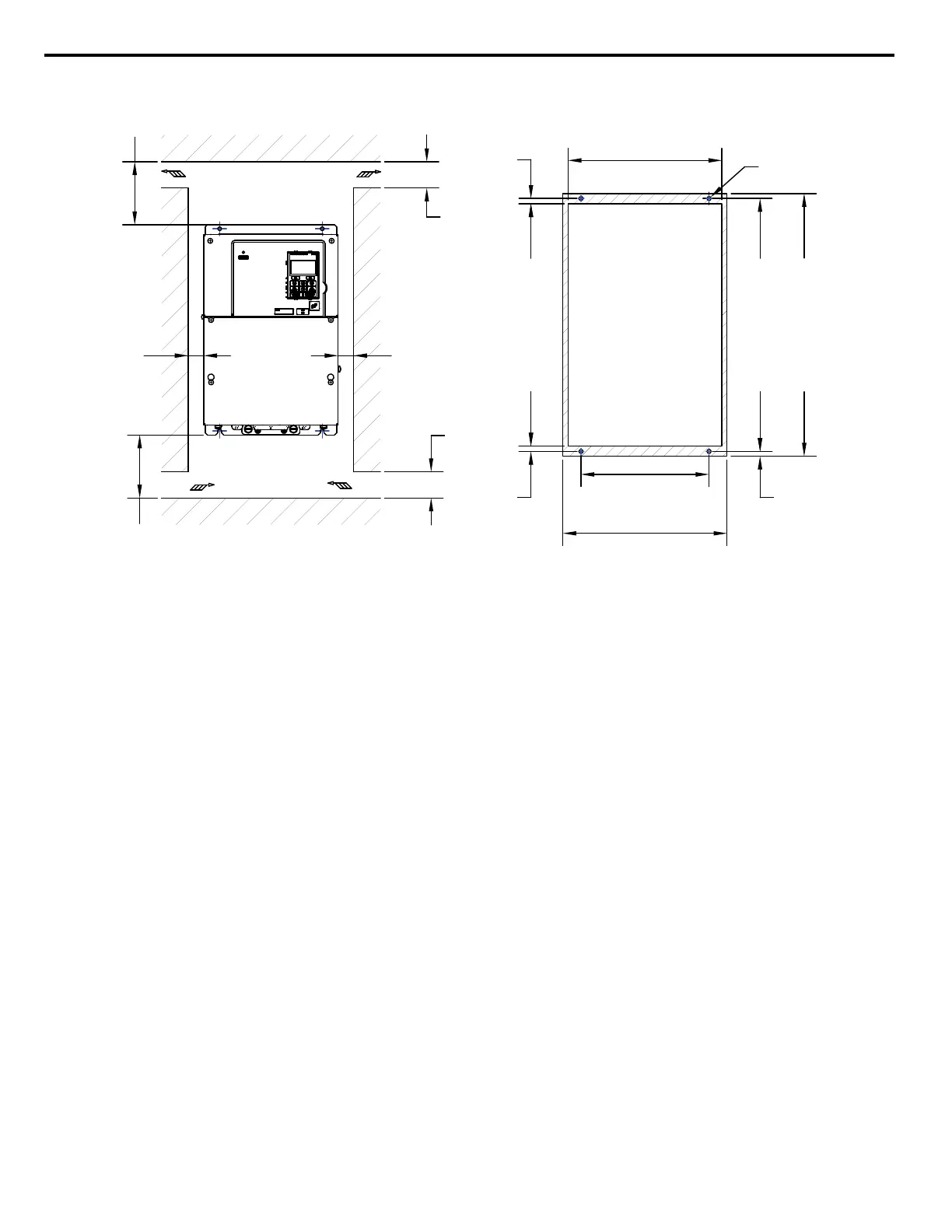

Figure 46 Non-Flange Type Model 4T0058A Clearances and Panel Cutout Dimensions
8 Specifications
70
YASKAWA TOEP YAIP1U 04A YASKAWA AC Drive – P1000 6-Phase/12-Pulse Input Installation Manual

YASKAWA P1000 Series Specifications

General

Series	P1000
Voltage Classes	200 V, 400 V, 600 V
Frequency	50/60 Hz
Humidity	95% RH or less (non-condensing)
Type	AC Drive
Control Method	V/f Control
Ambient Temperature	-10 to +50°C (14 to 122°F)
Communication Options	Modbus RTU
Protection Features	Overvoltage, Undervoltage
Overload Capacity	150% for 60 seconds
Storage Temperature	-20°C to +60°C (-4 to 140°F)
Cooling Method	Fan cooled
Horsepower Range	0.5 to 500 HP
