YASKAWA P1000 Series

1.97
[50]
1.97
[49.9]
4.72
[120]
4.72
[120]
1.18
[30]
1.18
[30]
(4)-1/4"
[M6]
AIR
AIR
AIR
AIR
17.13±.02 [435±0.5] 17.72±.02 [450±0.5]
8.66±.02 [220±0.5]
10.83±.02 [275±0.5]
16.5±.02 [419±0.5]
10.2±.02 [259±0.5]
CUTOUT
0.31
[8]
0.31
[8]
0.3
[7.5]
℄
NOTE:
EXPOSED HEATSINK DEPTH
D=3.94" MINUS PANEL THICKNESS
Unit: in. [mm]

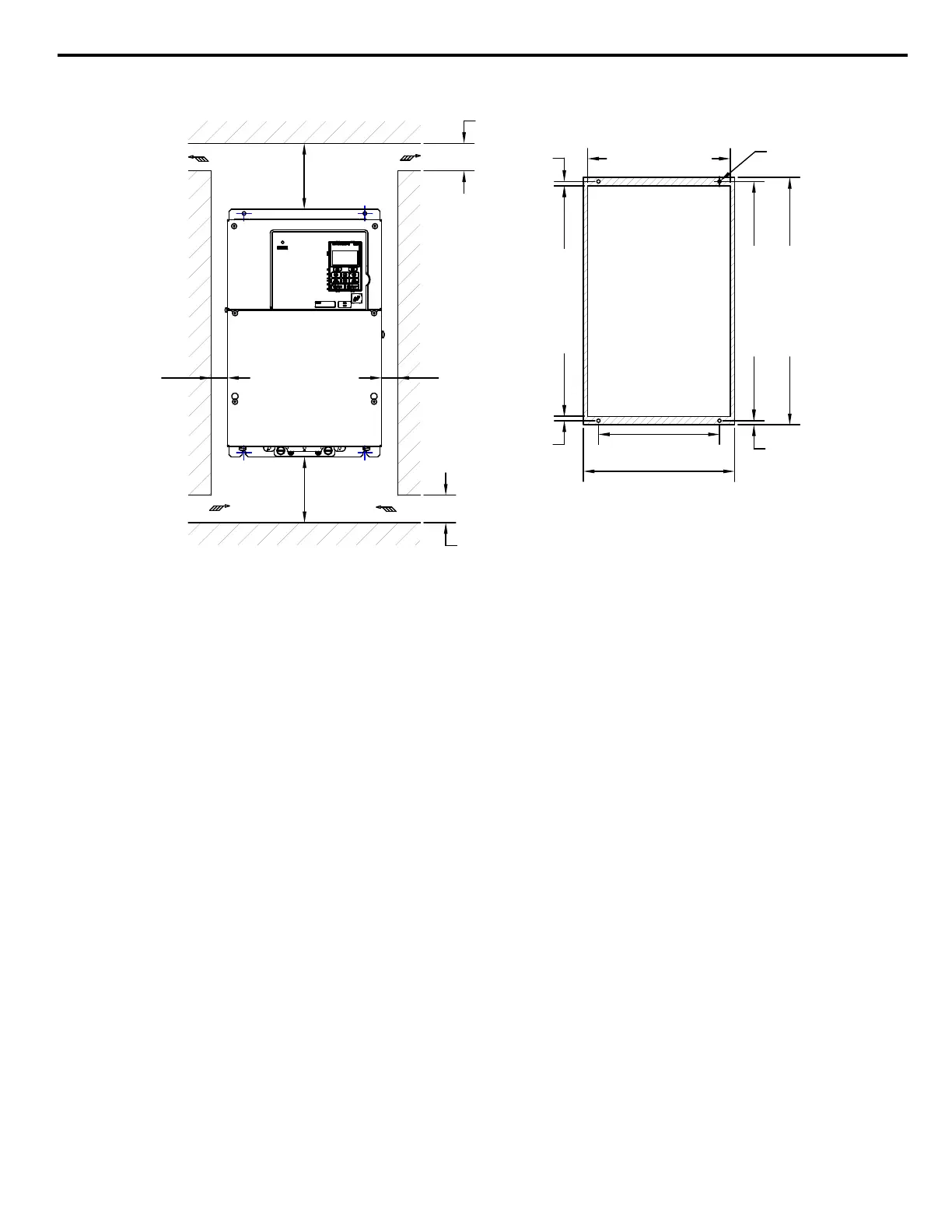

Figure 47 Non-Flange Type Model 4T0072A Clearances and Panel Cutout Dimensions
