YASKAWA P1000 Series

1.97
[50]
1.97
[50]
4.72
[120]
4.72
[120]
1.18
[30]
1.18
[30]
(4)-1/4"
[M6]
AIR
AIR
21.06±.02 [535±0.5] 21.65±.02 [550±0.5]
10.24±.02 [260±0.5]
12.8±.02 [325±0.5]
20.43±.02 [519±0.5]
12.17±.02 [309±0.5]
CUTOUT
0.31
[8]
0.31
[8]
0.3
[7.5]
NOTE:
EXPOSED HEATSINK DEPTH
D=4.33" MINUS PANEL THICKNESS
℄
AIR
AIR
Unit: in. [mm]

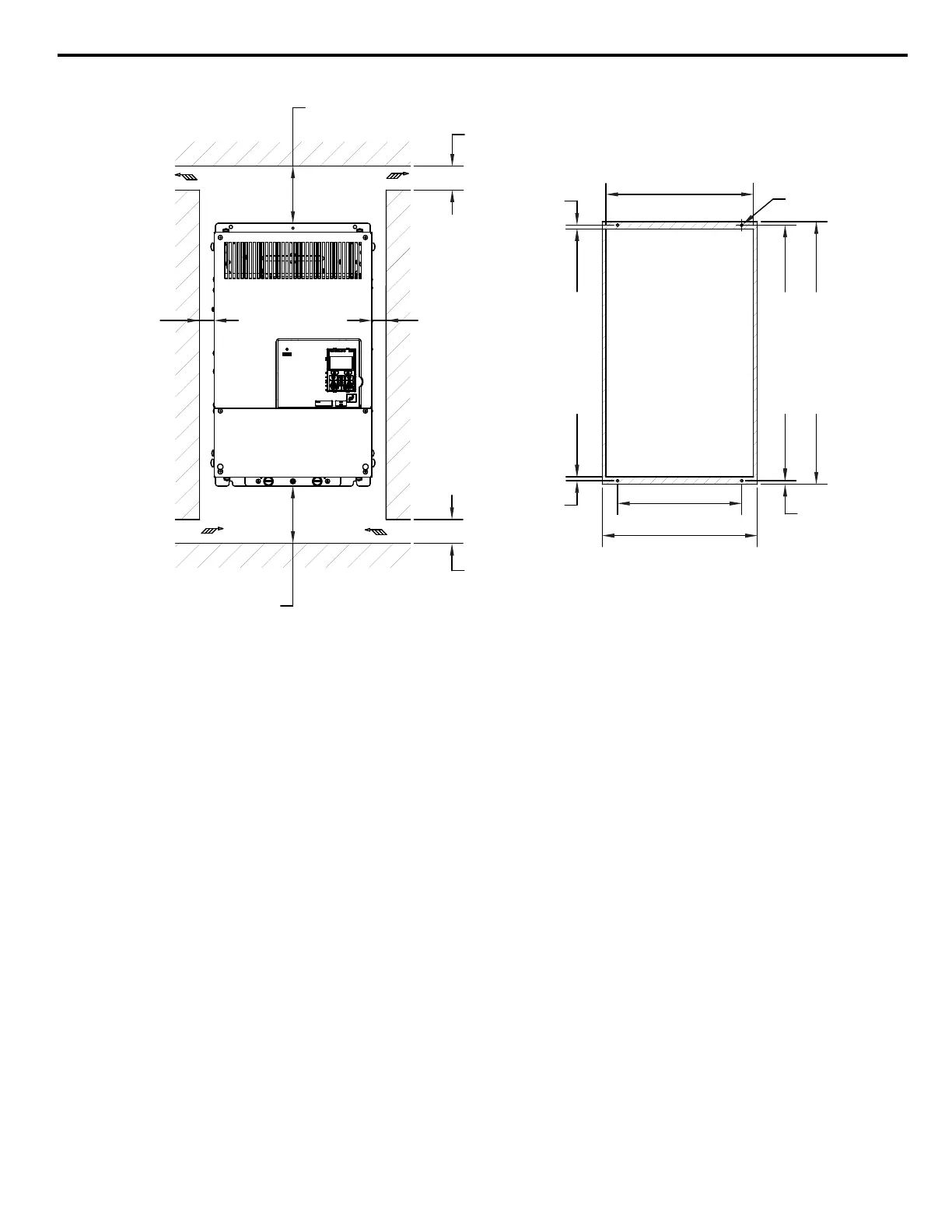

Figure 49 Non-Flange Type Models 4T0139A and 4T0165A Clearances and Panel Cutout Dimensions
8 Specifications
YASKAWA TOEP YAIP1U 04A YASKAWA AC Drive – P1000 6-Phase/12-Pulse Input Installation Manual
73
