YASKAWA P1000 Series

1.97
[50]
1.97
[50]
4.72
[120]
4.72
[120]
1.18
[30]
1.18
[30]
(4)-3/8"
[M10]
AIR
AIR
26.77±.02 [680±0.5] 27.76±.02 [705±0.5]
12.8±.02 [325±0.5]
17.72±.02 [450±0.5]
25.79±.02 [655±0.5]
17.09±.02 [434±0.5]
CUTOUT
0.49
[12.5]
0.49
[12.5]
0.49
[12.5]
NOTE:
EXPOSED HEATSINK DEPTH
D=5.12" MINUS PANEL THICKNESS
℄
AIR
AIR
Unit: in. [mm]

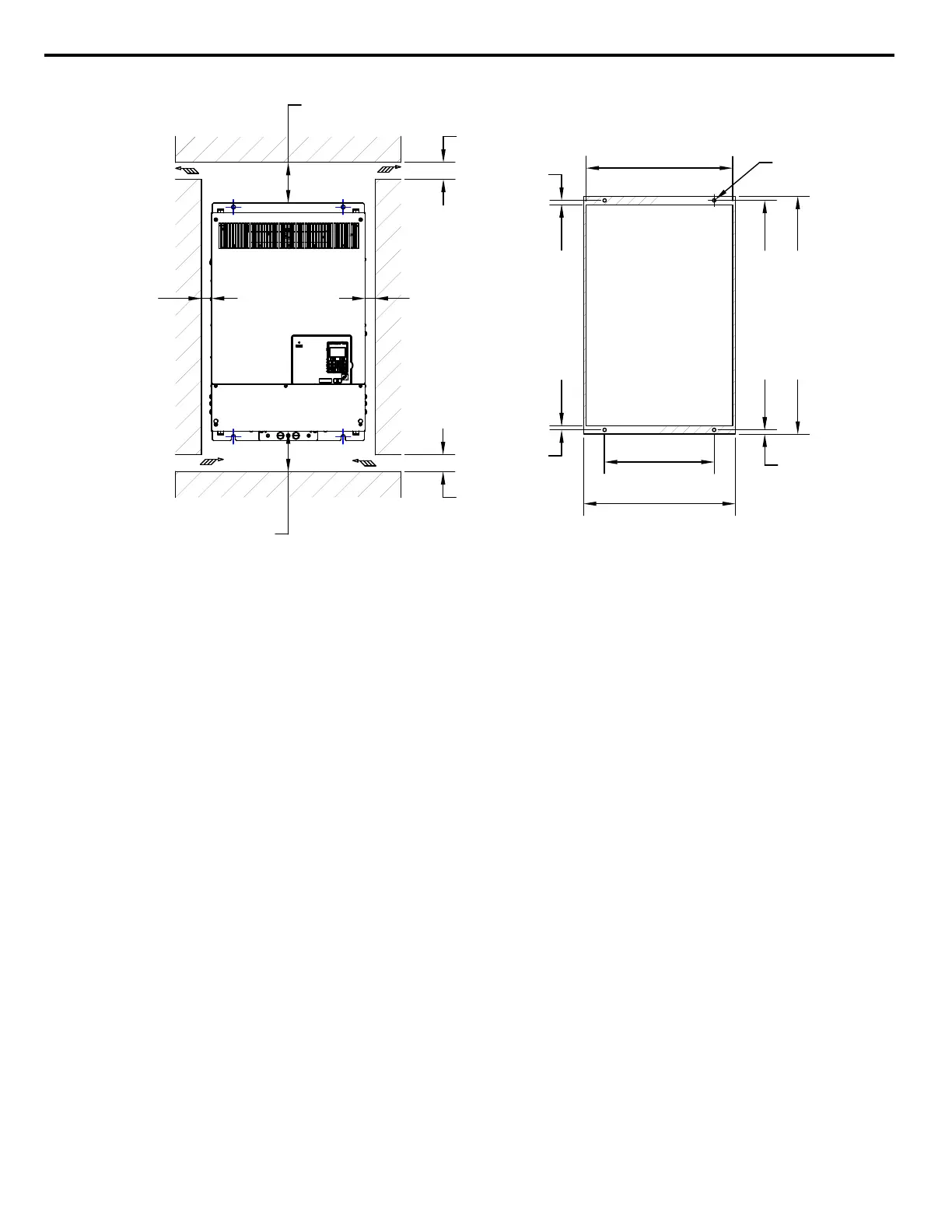

Figure 50 Flange Type Model 4T0208A Clearances and Panel Cutout Dimensions
