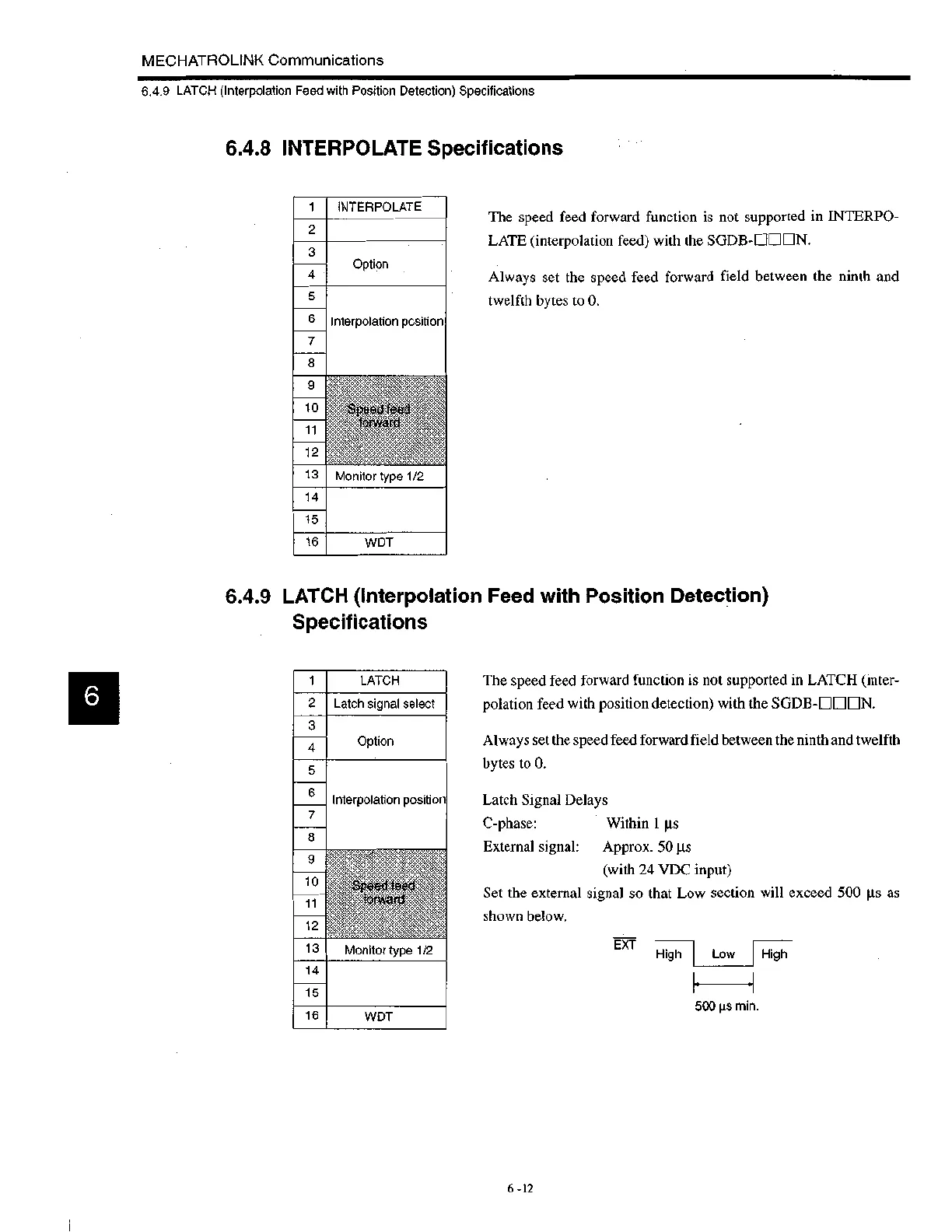

6.4.9 LATCH (Interpolation Feed with Position Detection) Specifications
6.4.8 INTERPOLATE Specifications
1
INTERPOLATE
2
3
4
Option
5
6
7
8
Interpolation position
9
10
11
12
13
Monitor type 1/2
14
15
16
WDT
The speed feed forward function is not supported in IN 1.ERPO-
LATE (interpolation feed) with the SGDB-=N.
Always set the speed feed forward field between the ninth and
twelfth bytes to 0.
6.4.9 LATCH (Interpolation Feed with Position Detection)
Specifications
1
LATCH
2
Latch signal select
3
4
Option
5
6
7
8
9
10
11
12
13
Interpolation position
Monitor type 1/2
14
15
16
WDT
The speed feed forward function is not supported in LATCH (inter-
polation feed with position detection) with the SGDB-1110 ON.
Always set the speed feed forward field between the ninth and twelfth
bytes to 0.
Latch Signal Delays
C-phase: Within 1µs
External signal: Approx. 50 pis
(with 24 VDC input)
Set the external signal so that Low section will exceed 500 pts as
shown below.
EXT
High
Low
500 is min.
High
