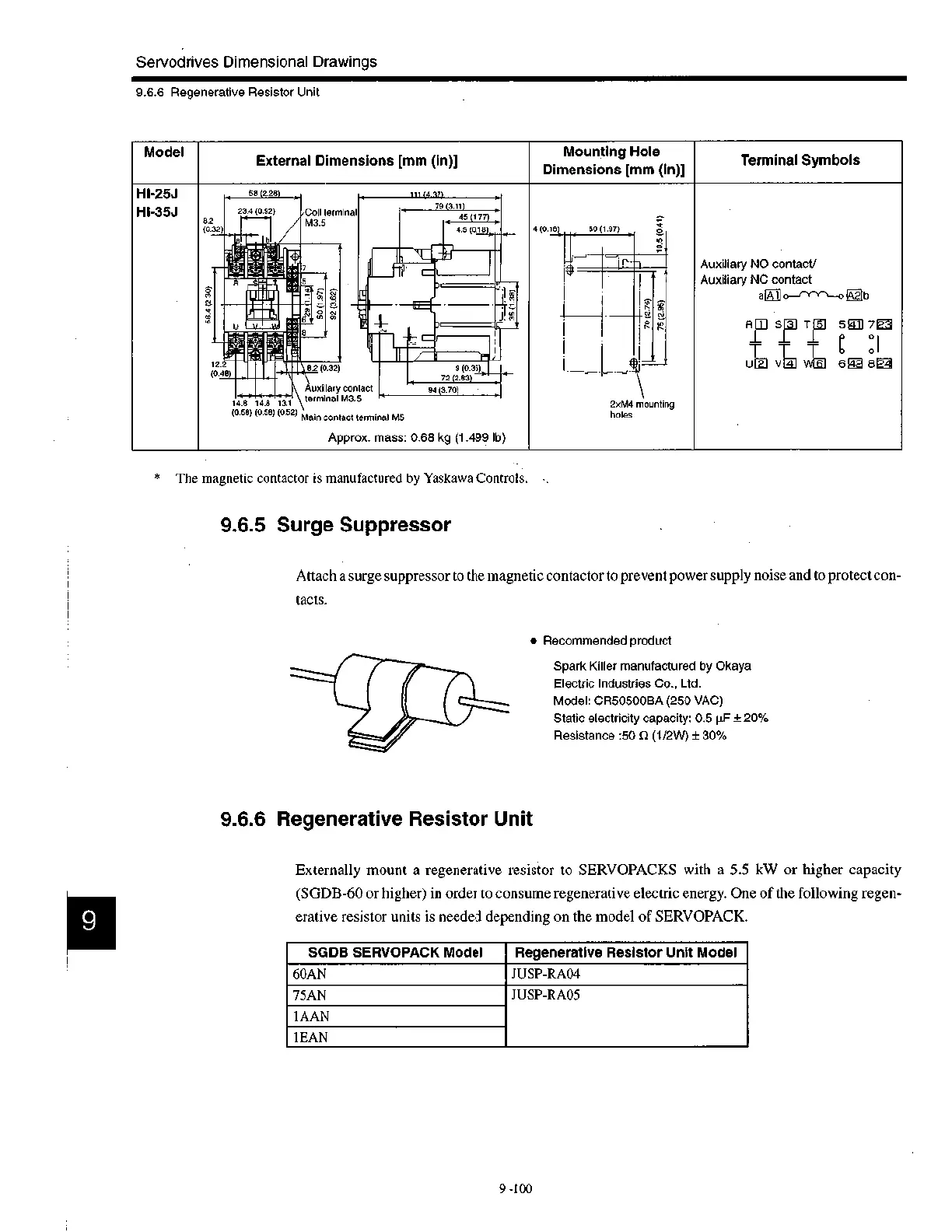

Servodrives Dimensional Drawings
Model
External Dimensions [mm (in)]
Mounting Hole
Dimensions [mm (in)]
Terminal Symbols
Hl-25J
Hl-35J
58 (2.28)
4 (0.1 50 (1.97) ; 2,
Auxiliary NO contact/
Auxiliary NC contact
a E o—f-Y-YTh—o E] b
RE' SE1 TEI 5E70
I I I C oci
T T T
UEI \/1 1Wal 6E BO
8.2
(0.32
M3.5
•.
,
_J—'
-----'
LT"
$
1-6
a
_ A
F,
-____I---A—Y-
2xM4
holes
or.
mounting
a
'
12.2
8.2 (0.32
(0.48)
contact
AI.-
• . terminal M3.5uxiliary
14.8 14.8 13.1
(0.58) (0.58) (0.52)
Main contact terminal M5
Approx. mass: 0.68 kg (1.499 Ib)
SGDB SERVOPACK Model Regenerative Resistor Unit Model
60AN
JUSP-RA04
75AN
JUSP-RA05
lAAN
lEAN
9.6.6 Regenerative Resistor Unit
* The magnetic contactor is manufactured by Yaskawa Controls.
9.6.5 Surge Suppressor
Attach a surge suppressor to the magnetic contactor to prevent power supply noise and to protect con-
tacts.
• Recommended product
Spark Killer manufactured by Okaya
Electric Industries Co., Ltd.
Model: CR50500BA (250 VAC)
Static electricity capacity: 0.5 RF ± 20%
Resistance :50 52 (1/2W) ± 30%
9.6.6 Regenerative Resistor Unit
Externally mount a regenerative resistor to SERVOPACKS with a 5.5 kW or higher capacity
(SGDB-60 or higher) in order to consume regenerative electric energy. One of the following regen-
erative resistor units is needed depending on the model of SERVOPACK.
9 -100
