YASKAWA SGDB-15VN - SGMS-DDA Servomotors

Servodrives Dimensional Drawings
A Brake terminal
B
Brake terminal
C —
A
Phase U
B
Phase V
C
Phase W
D FG (Frame Ground)

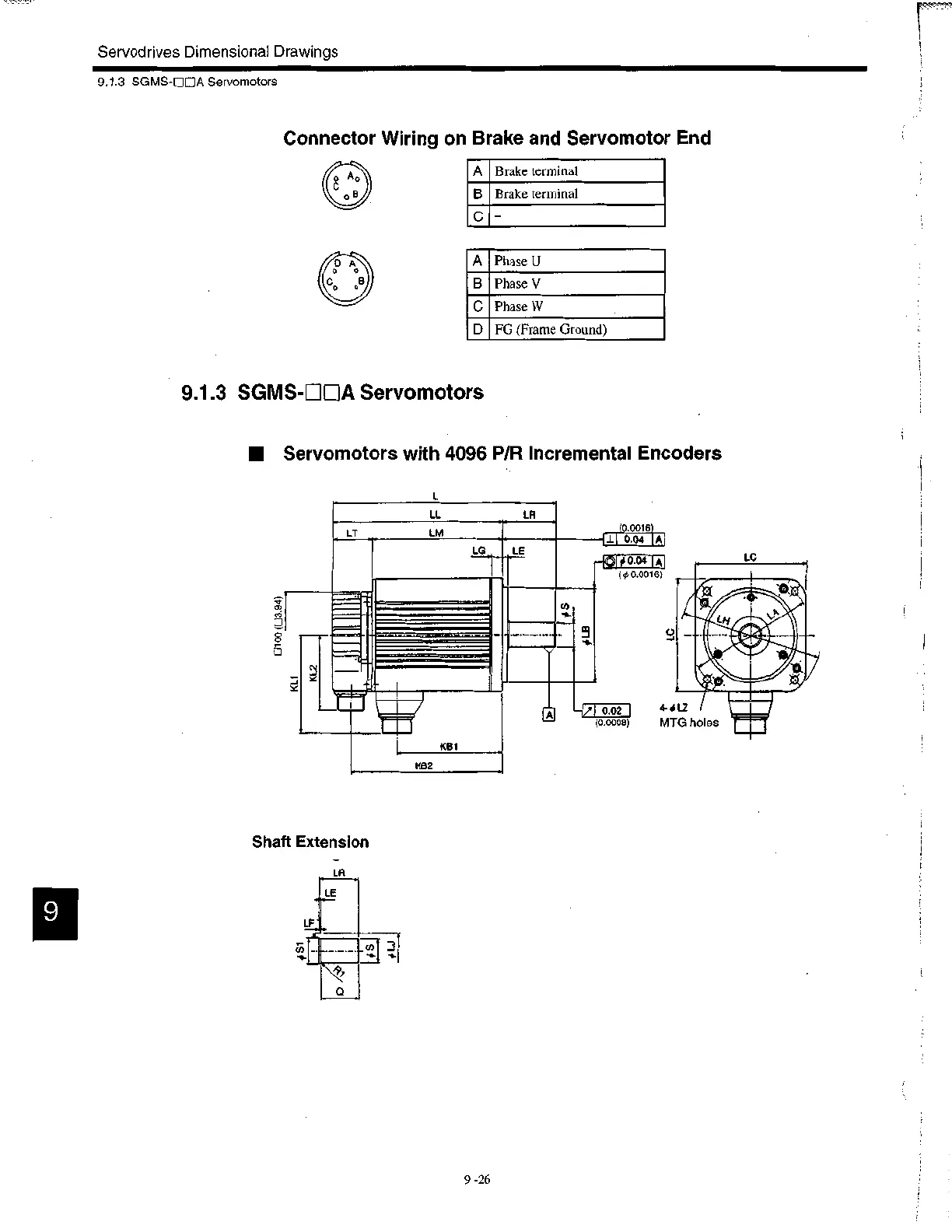

9.1.3 SGMS-EDA Servomotors
Connector Wiring on Brake and Servomotor End
9.1.3 SGMS-DEIA Servomotors
■ Servomotors with 4096 P/R Incremental Encoders
U100 (03.94)
Shaft Extension
9
