Servodrives Dimensional Drawings
Servomotor
Model
Servomotor End Connector
Receptacle L-shaped Plug Straight Plug Cable Clamp
SGMS- 10ANA
15AIIIA
20ANA
MS3102A18-10P MS3108B18-10S MS3106B18-10S MS3057-10A
30AIIA
40AIIIA
50AINA
MS3102A22-22P MS3108B22-22S MS3106B22.-22S MS3057-12A
SGMG- 05AllA
09AMA
13AMA
MS3102A18-10P
MS3108B18-10S MS3106B18-10S MS3057-10A
20AIIIA
30AIIIIA
44ADA
MS3102A22-22P MS3108B22-22S MS3106B22-22S MS3057-12A
55AIIIIA
75ADA
1AANIA
1EANA
MS3102A32-17P MS3108B32-17S MS3106B32-17S MS3057-20A
SGMG- 03A B
06AMB
09AMB
MS3102A18-10P MS3108B18-10S MS3106B18-10S
MS3057-10A
12A11113
20A U B
30AIIIB
MS3102A22-22P MS3108B22-22S MS3106B22-22S MS3057-12A
44AMB
60AMB
MS3102A32-17P MS3108B32-17S MS3106B32-17S MS3057-20A
SGMD- 22ANA MS3102A24-10P MS3108B24-10S MS3106B24-10S MS3057-16A
32ANA
40AIIIA

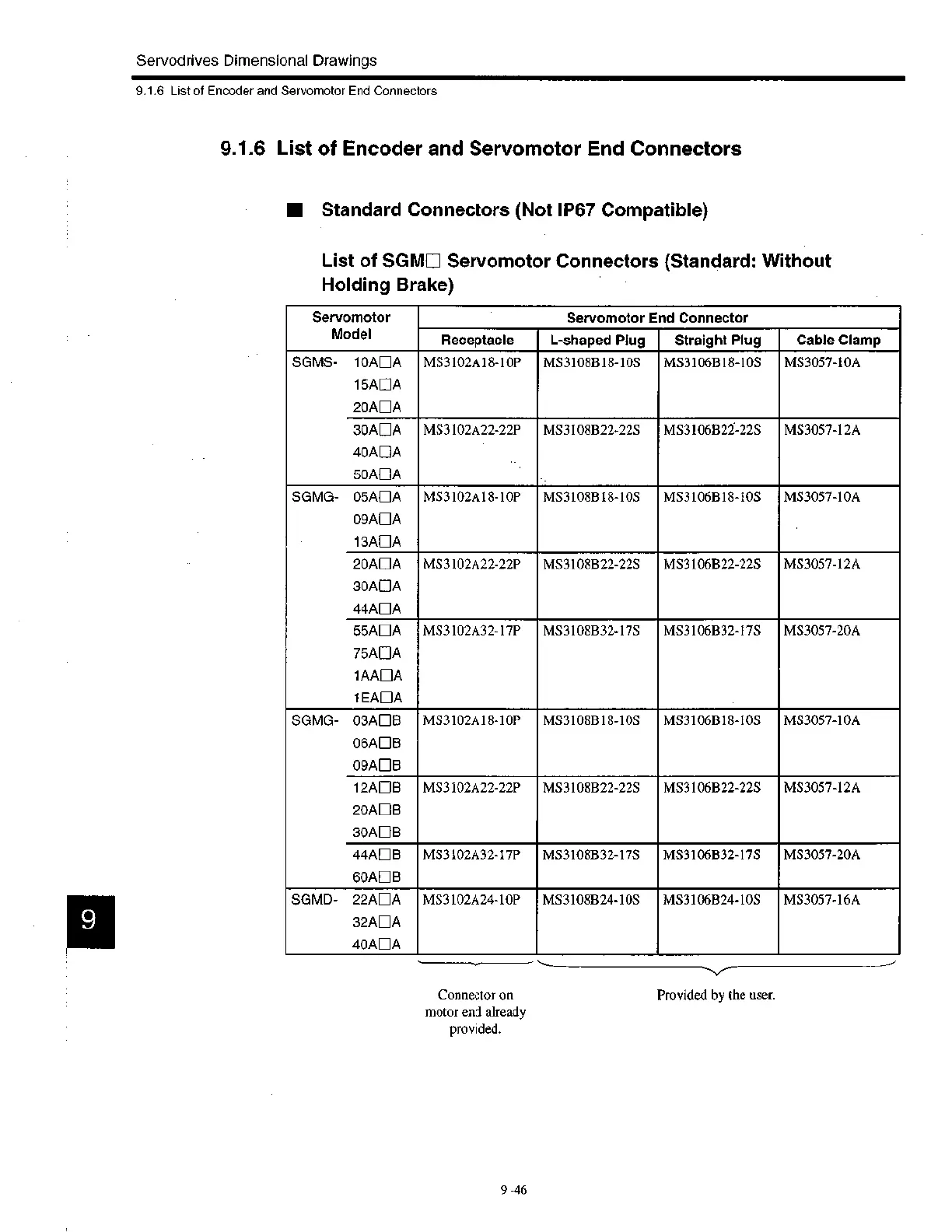

9.1.6 List of Encoder and Servomotor End Connectors
9.1.6 List of Encoder and Servomotor End Connectors
Standard Connectors (Not IP67 Compatible)
List of SGM[1] Servomotor Connectors (Standard: Without
Holding Brake)
Connector on
motor end already
provided.
Provided by the user.
9 -46
