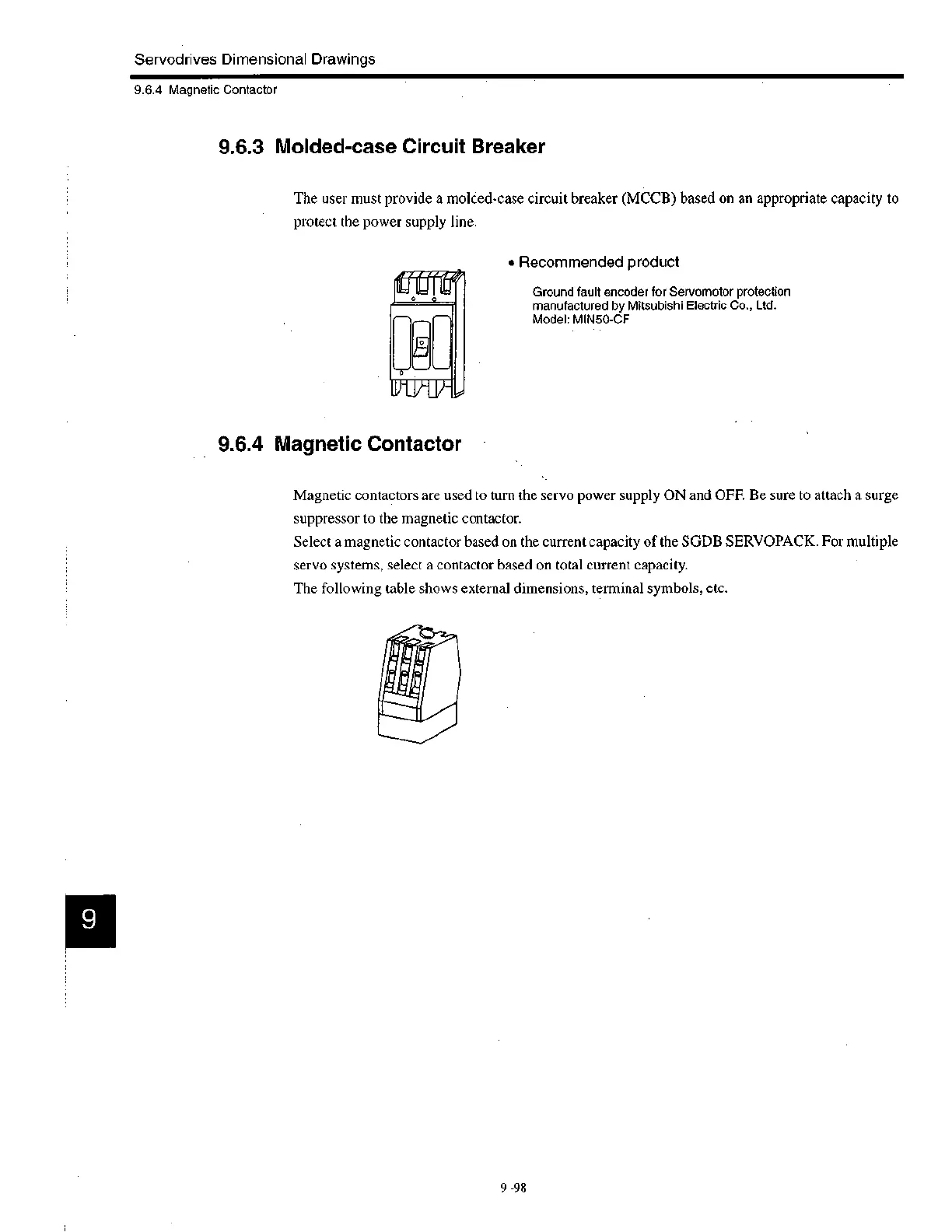

Servodrives Dimensional Drawings
9.6.4 Magnetic Contactor
9.6.3 Molded-case Circuit Breaker
The user must provide a molded-case circuit breaker (MCCB) based on an appropriate capacity to
protect the power supply line.
• Recommended product
Ground fault encoder for Servomotor protection
manufactured by Mitsubishi Electric Co., Ltd.
Model: MIN50-CF
9.6.4 Magnetic Contactor
Magnetic contactors are used to turn the servo power supply ON and OFF. Be sure to attach a surge
suppressor to the magnetic contactor.
Select a magnetic contactor based on the current capacity of the SGDB SERVOPACK. For multiple
servo systems, select a contactor based on total current capacity.
The following table shows external dimensions, terminal symbols, etc.
