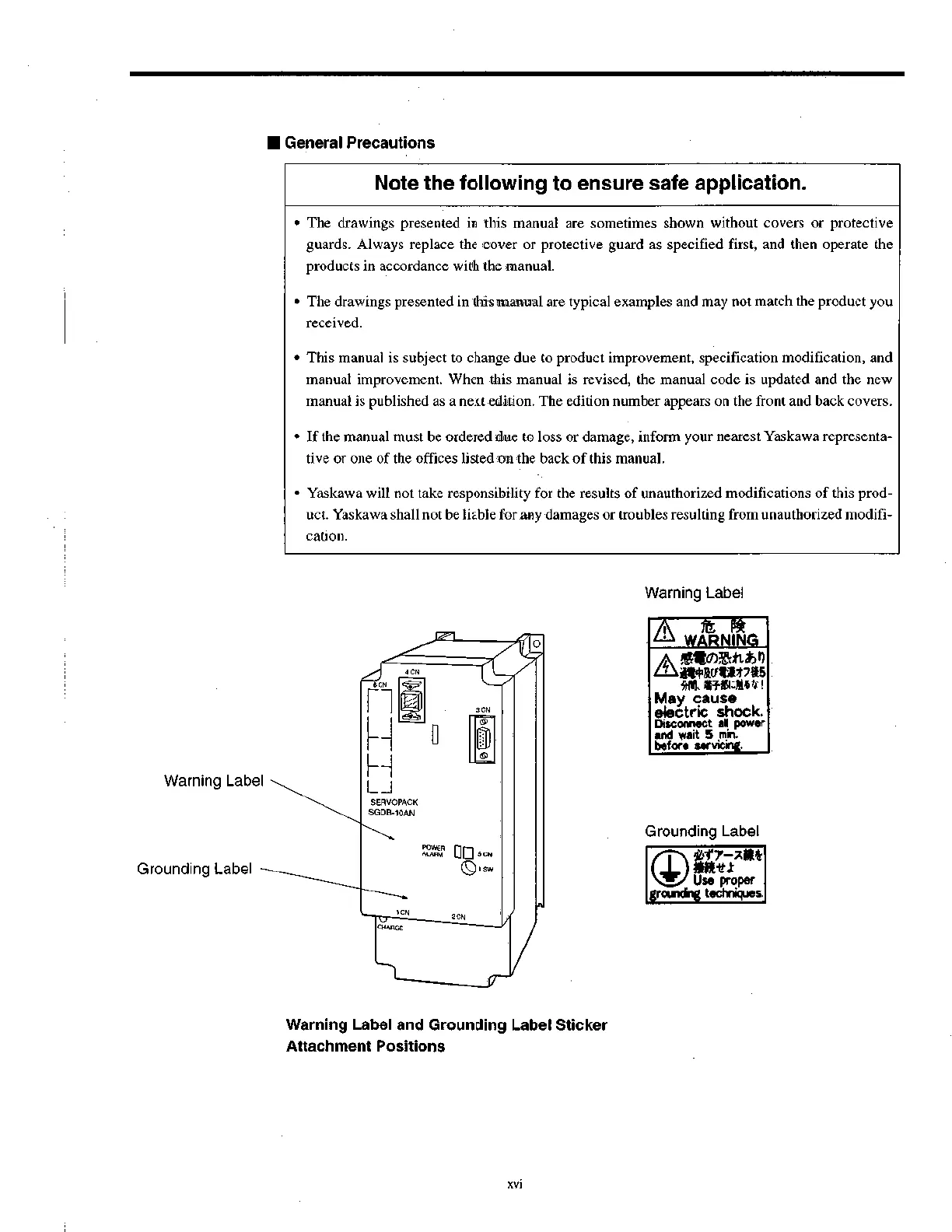

â– General Precautions
Note the following to ensure safe application.
• The drawings presented in this manual are sometimes shown without covers or protective
guards. Always replace the cover or protective guard as specified first, and then operate the
products in accordance with the manual.
• The drawings presented in this manual are typical examples and may not match the product you
received.
• This manual is subject to change due to product improvement, specification modification, and
manual improvement. When this manual is revised, the manual code is updated and the new
manual is published as a next edition. The edition number appears on the front and back covers.
• If the manual must be ordered due to loss or damage, inform your nearest Yaskawa representa-
tive or one of the offices listed on the back of this manual.
• Yaskawa will not take responsibility for the results of unauthorized modifications of this prod-
uct. Yaskawa shall not be liable for any damages or troubles resulting from unauthorized modifi-
cation.
Warning Label
Z\
WARNING
Warning Label
Grounding Label
4 CN
6 CN
LJ
SERVOPACK
SGDB-10AN
CHARGE
3 CN
POWERAM,,, ID 5CN
1 SW
2 CN
Warning Label and Grounding Label Sticker
Attachment Positions
A altoT6tiA0
ittPatitIt715
iliTtli4ti I
May cause
electric shock.
Disconnect al power
and wait 5 min.
before servicing.
Grounding Label
1617-MIt
*NMI
Use proper
grouncing techniques.
