Servodrives Dimensional Drawings
A
A Channel Output
K —
B
A Channel Output
L
—
C
B Channel Output
M
—
D
B Channel Output
N
—
E
Z (C) Channel Output
P
—
F
Z (C) Channel Output
R
Reset
G
0 V
S
0 V (battery)
H
+5 VDC
T
3.6 V (battery)
J FG (Frame Ground)
A
Phase U
B
Phase V
C
Phase W
D
Ground terminal

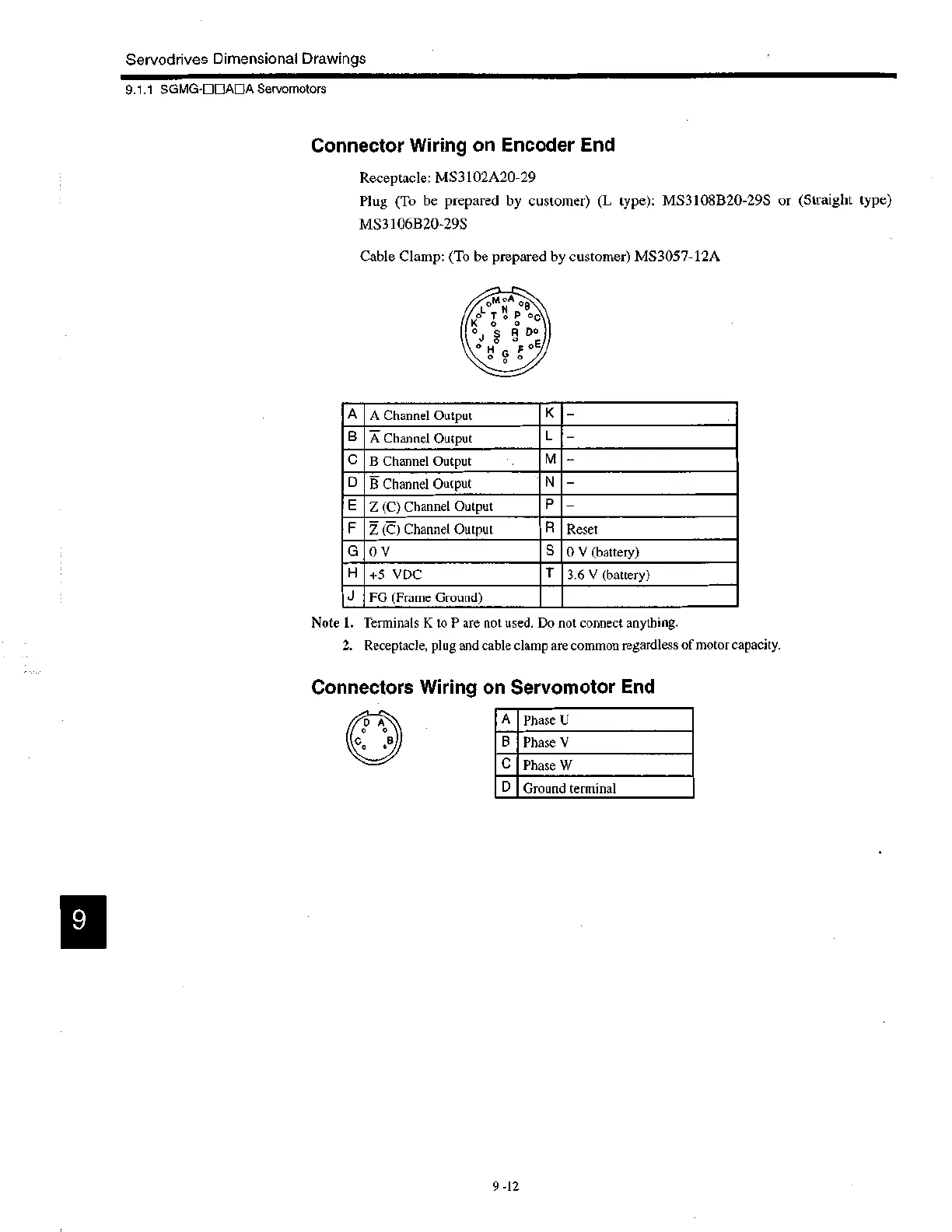

9.1.1 SGMG-LOADA Servomotors
Connector Wiring on Encoder End
Receptacle: MS3102A20-29
Plug (To be prepared by customer) (L type): MS3108B20-29S or (Straight type)
MS3106B 20-29S
Cable Clamp: (To be prepared by customer) MS3057-12A
Note 1. Terminals K to P are not used. Do not connect anything.
2. Receptacle, plug and cable clamp are common regardless of motor capacity.
Connectors Wiring on Servomotor End
9
9 -12
