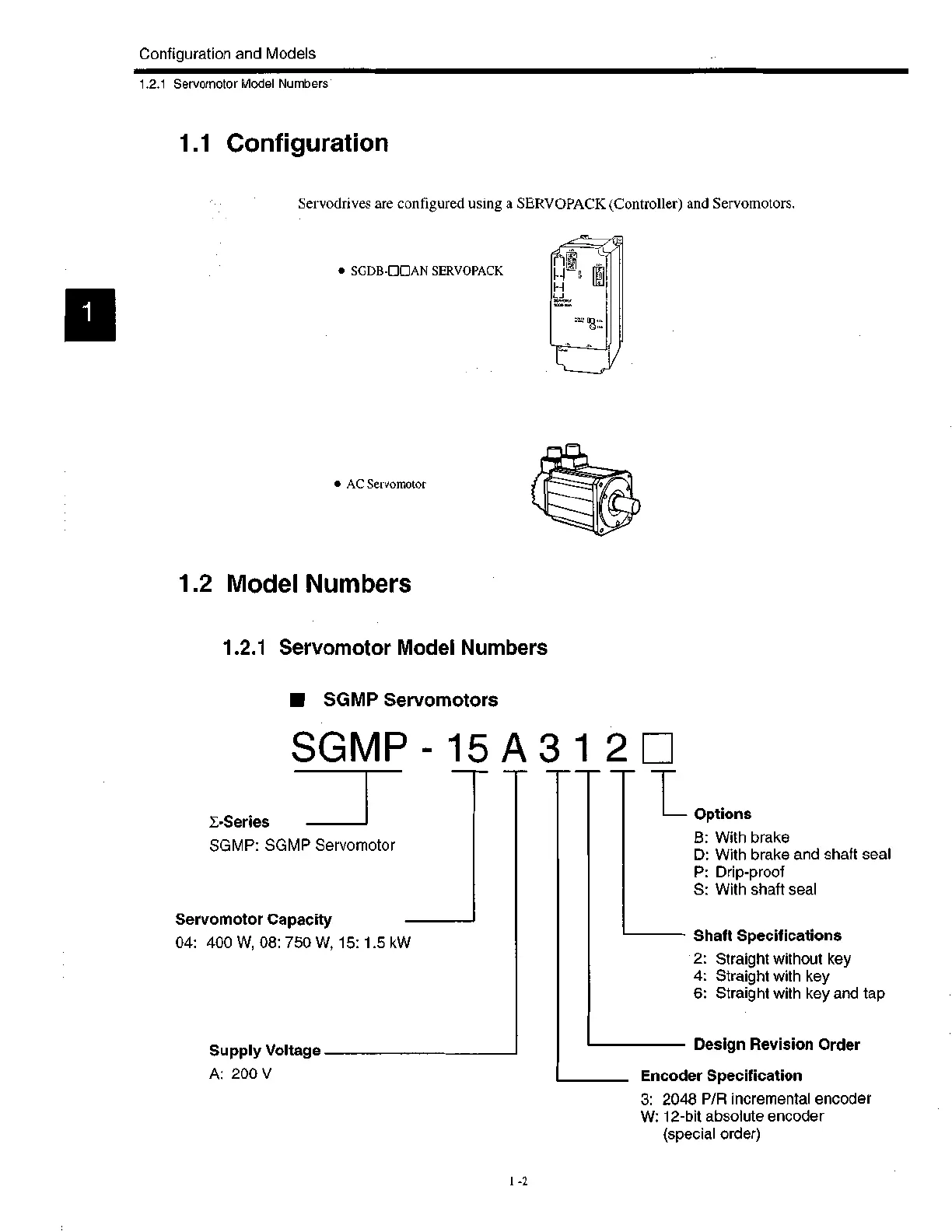

Configuration and Models
1.2.1 Servomotor Model Numbers
1.1 Configuration
Servodrives are configured using a SERVOPACK (Controller) and Servomotors.
• SGDB-DOAN SERVOPACK
• AC Servomotor
1.2 Model Numbers
1.2.1 Servomotor Model Numbers
■ SGMP Servomotors
SGMP- 15 A 3 1 2
E-Series
SGMP: SGMP Servomotor
Servomotor Capacity
04: 400 W, 08: 750 W, 15:1.5 kW
Supply Voltage
A: 200 V
I— Options
B: With brake
D: With brake and shaft seal
P: Drip-proof
S: With shaft seal
Shaft Specifications
2: Straight without key
4: Straight with key
6: Straight with key and tap
Design Revision Order
Encoder Specification
3: 2048 P/R incremental encoder
W: 12-bit absolute encoder
(special order)
1 -2
