Servodrives Dimensional Drawings
Model SGMD- L LL
LM LR
LT KB1
KB2 KL1 KL2
22AWA 256 (10.08) 201 (7.91)
144 (5.67) 55 (2.17)
57 (2.24) 70 (2.76)
180 (7.09) 165 (6.50)
88 (3.46)
32AWA 268 (10.55) 213
(8.39) 156 (6.14) 55 (2.17)
57 (2.24) 82 (3.23)
192 (7.56) 165 (6.50) 88
(3.46)
40AWA 288 (11.34) 223
(8.78) 166 (6.54) 65 (2.56)
57 (2.24) 92 (3.62)
202 (7.95) 165 (6.50)
88 (3.46)

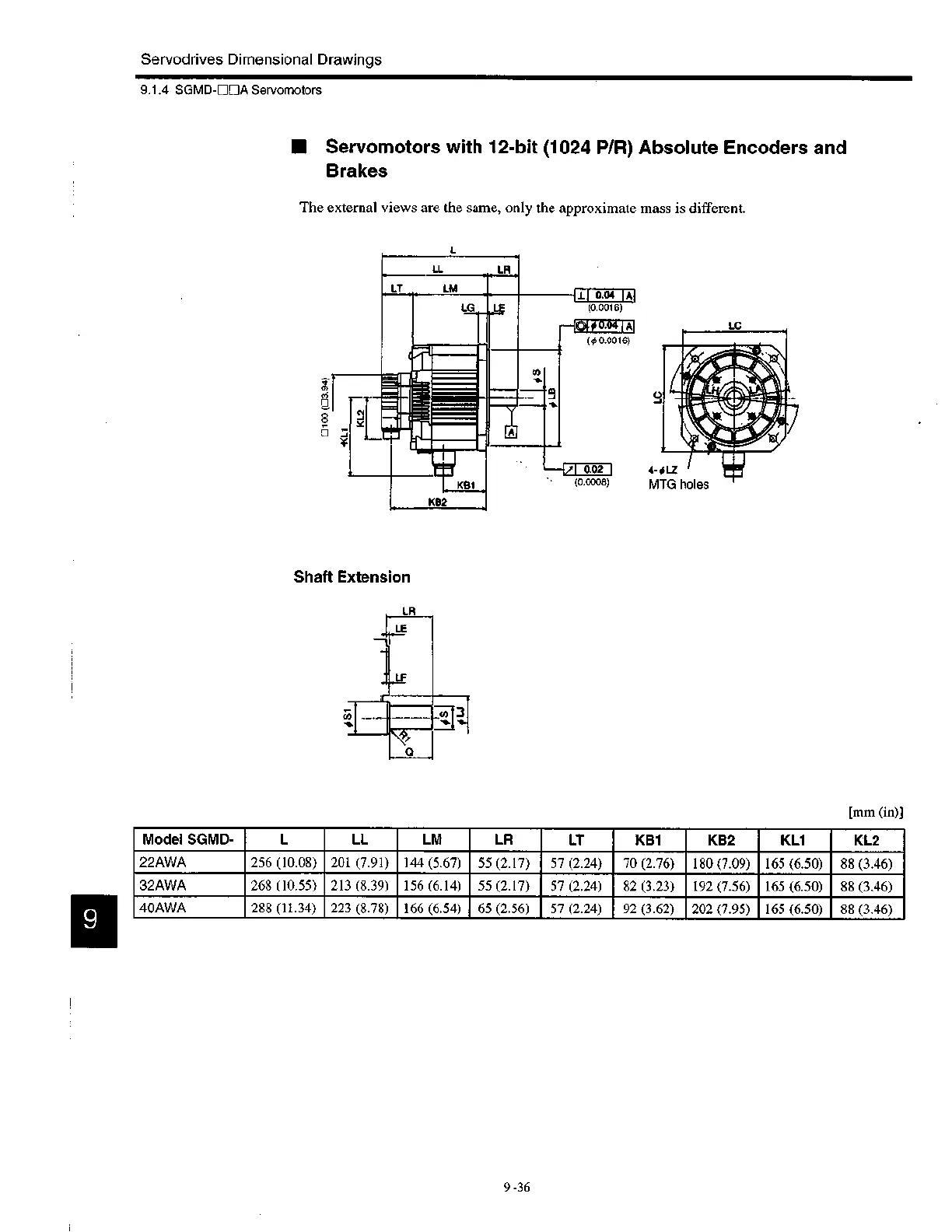

9.1.4 SGMD-EIDA Servomotors
Servomotors with 12-bit (1024 P/R) Absolute Encoders and
Brakes
The external views are the same, only the approximate mass is different.
L
LL
0
5
LT LM
LG,
KB2
LE
co
KB1
Shaft Extension
1
0.04
A
(0.0016)
#0.04
A
( 0.0016)
-VI 0.02 I
(0.0008)
LC
4- LZ
MTG holes
[mm (in)]
9 -36
