Servodrives Dimensional Drawings
9.4.1 SGMG, SGMS and SGMD Servomotors Connections

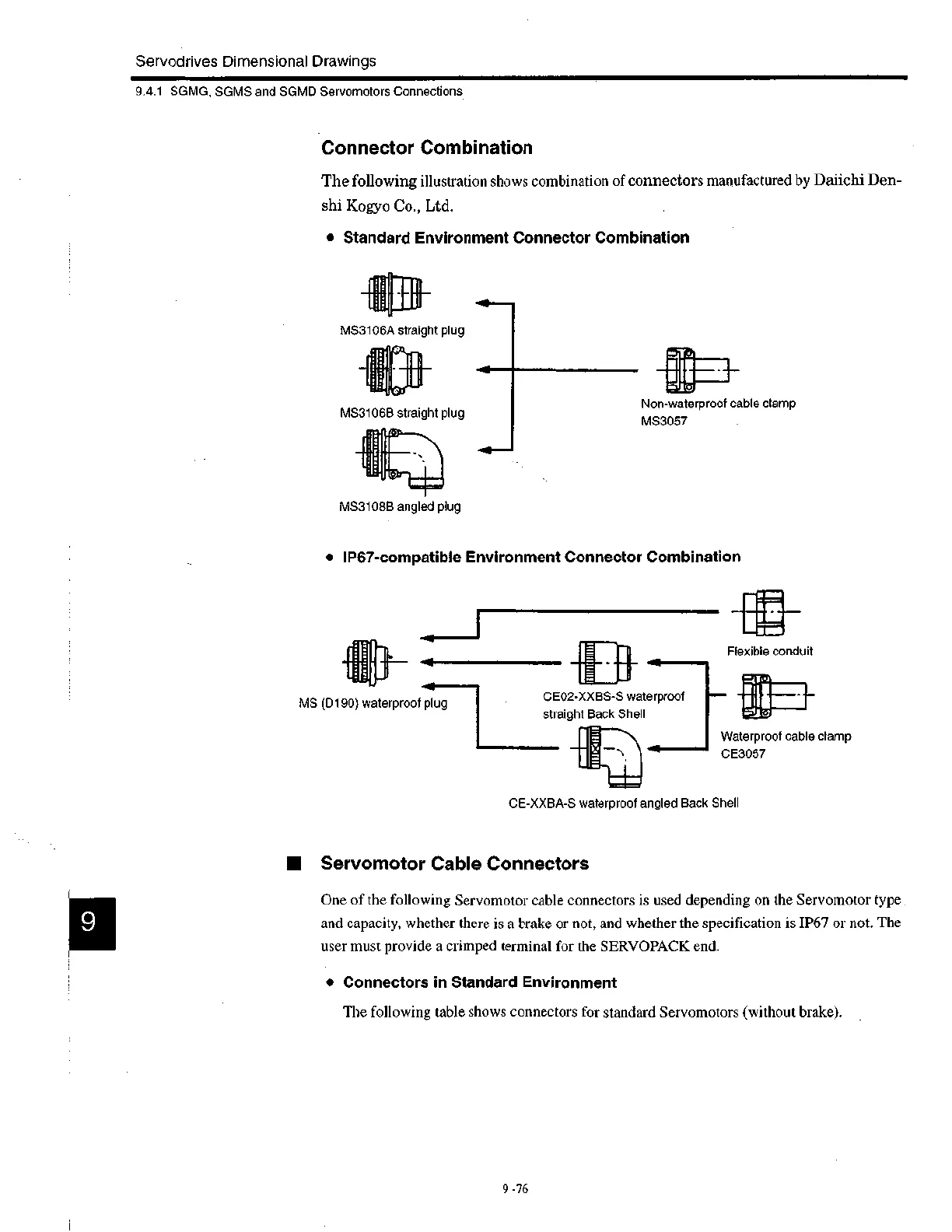

Connector Combination
The following illustration shows combination of connectors manufactured by Daiichi Den-
shi Kogyo Co., Ltd.
• Standard Environment Connector Combination
MS3106A straight plug
MS3106B straight plug
MS3108B angled plug
Non waterproof cable clamp
MS3057
• IP67-compatible Environment Connector Combination
MS (D190 waterproof plug
CE02-XXBS-S waterproof
straight Back Shell
4==I
Flexible conduit
Mao)
=1_1(9
Waterproof cable clamp
CE3057
CE-XXBA-S waterproof angled Back Shell
■ Servomotor Cable Connectors
One of the following Servomotor cable connectors is used depending on the Servomotor type
and capacity, whether there is a brake or not, and whether the specification is IP67 or not. The
user must provide a crimped terminal for the SERVOPACK end.
• Connectors in Standard Environment
The following table shows connectors for standard Servomotors (without brake).
9 -76
