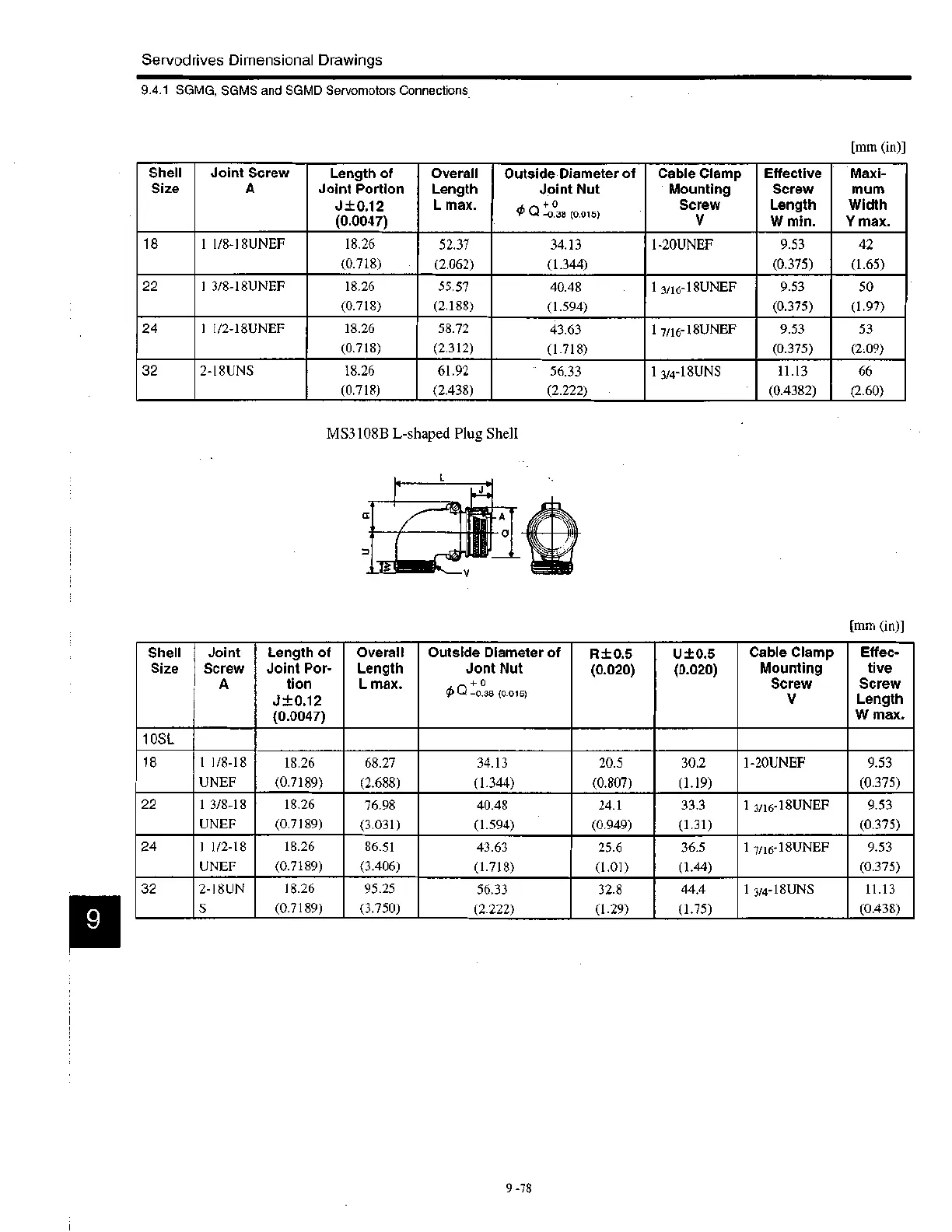

YASKAWA SGDB-15VN - Page 237

Servodrives Dimensional Drawings
Shell
Size
Joint Screw
A
Length of
Joint Portion
J±0.12
(0.0047)
Overall
Length
L max.
Outside Diameter of
Joint Nut
0 Q 1-0°.38 (0.015)
Cable Clamp
Mounting
Screw
V
Effective
Screw
Length
W min.
Maxi-
mum
Width
Y max.
18
1 1/8-18UNEF 18.26
(0.718)
52.37
(2.062)
34.13
(1.344)
1-20UNEF 9.53
(0.375)
42
(1.65)
22 1 3/8-18UNEF 18.26
(0.718)
55.57
(2.188)
40.48
(1.594)
1 3/16-18UNEF
9.53
(0.375)
50
(1.97)
24 1 1/2-18UNEF 18.26
(0.718)
58.72
(2.312)
43.63
(1.718)
1 7/16-18UNEF
9.53
(0.375)
53
(2.09)
32 2-18UNS 18.26
(0.718)
61.92
(2.438)
56.33
(2.222)
1 314- 1 8UNS
11.13
(0.4382)
66
(2.60)
Shell
Size
Joint
Screw
A
Length of
Joint Por-
tion
J±0.12
(0.0047)
Overall
Length
L max.
Outside Diameter of
Jont Nut
4f)(:) 1-00.38 (0 015)
R±0.5
(0.020)
U+0.5
(0.020)
Cable Clamp
Mounting
Screw
V
Effec-
tive
Screw
Length
W max.
10SL
18 1 1/8-18
UNEF
18.26
(0.7189)
68.27
(2.688)
34.13
(1.344)
20.5
(0.807)
30.2
(1.19)
1-20UNEF 9.53
(0.375)
22 1 3/8-18
UNEF
18.26
(0.7189)
76.98
(3.031)
40.48
(1.594)
24.1
(0.949)
33.3
(1.31)
1 3/16-18UNEF
9.53
(0.375)
24
1 1/2-18
UNEF
18.26
(0.7189)
86.51
(3.406)
43.63
(1.718)
25.6
(1.01)
36.5
(1.44)
1 7/16-18UNEF
9.53
(0.375)
32 2-18UN
S
18.26
(0.7189)
95.25
(3.750)
56.33
(2.222)
32.8
(1.29)
44.4
(1.75)
1 314-18UNS
11.13
(0.438)
9.4.1 SGMG, SGMS and SGMD Servomotors Connections
[mm (in)]
MS3108B L-shaped Plug Shell
[mm (in)]
9 -78
