Servodrives Dimensional Drawings
Servomotor
Model
Servomotor End Connector
Receptacle
L-shaped Plug
Straight Plug
Cable Clamp
SGMS- 1 OAD A
15ADA
20A 0 A
MS3102A20-15P
MS3108B20-15S
MS3106B20-15S MS3057-12A
30A 0 A
40ADA
50AD A
MS3102A24-10P
MS3108B24-10S
MS3106B24-10S
MS3057-16A
SGMG- 05A D A
09A ❑ A
13A 0 A
MS3102A20-15P
MS3108B20-15S
MS3106B20-15S MS3057-12A
2OADA
30ADA
44A El A
MS3102A24-10P MS3108B24-10S
MS3106B24-10S
MS3057-16A
55A El A
75A 0 A
1AADA
1 EA D A
MS3102A32-17P
MS3102A1OSL-3P
MS3108B32-17S
MS3108B1OSL-3S
MS3106B32-17S
MS3106A1OSL-3S
MS3057-20A
MS3057-4A
SGMG- 03AD B
06AD B
09AD B
MS3102A20-15P
MS3108B20-15S
MS3106B20-15S MS3057-12A
12A 0 B
20A0 B
30AD B
MS3102A24-10P MS3108B24-10S
MS3106B24-10S MS3057-16A
44AD B
60A0 B
MS3102A32-17P
MS3102A1OSL-3P
MS3108B32-17S
MS3108B1OSL-3S
MS3106B32-17S
MS3106A1OSL-3S
MS3057-20A
MS3057-4A
SGMD- 22A0A
32ADA
40ACIA
MS3102A24-10P
MS3108B24-10S
MS3106B24-10S
MS3057-16A

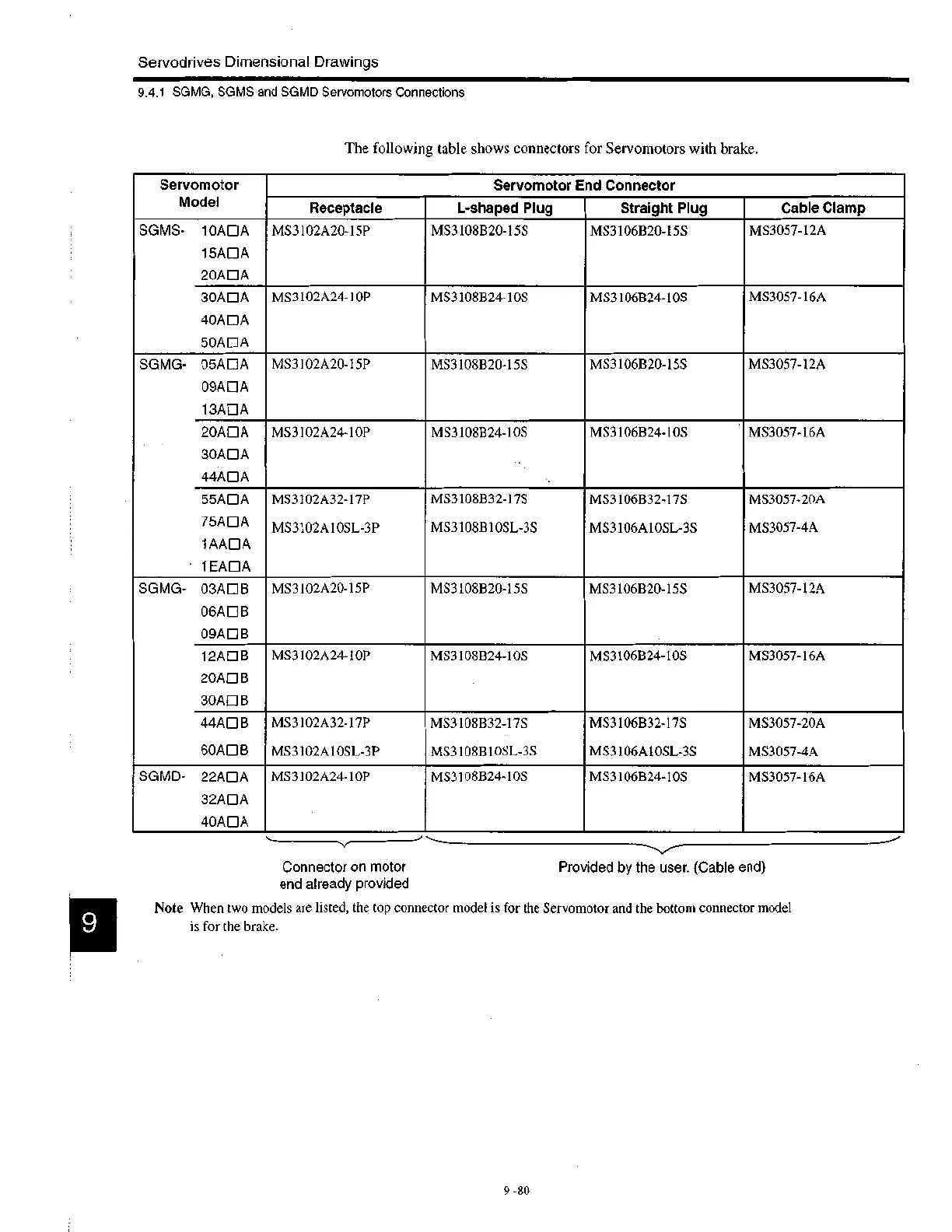

9.4.1 SGMG, SGMS and SGMD Servomotors Connections
The following table shows connectors for Servomotors with brake.
9
Connector on motor
end already provided
Note When two models are listed, the top connector model is for the Servomotor and the bottom connector model
is for the brake.
Provided by the user. (Cable end)
9 -80
