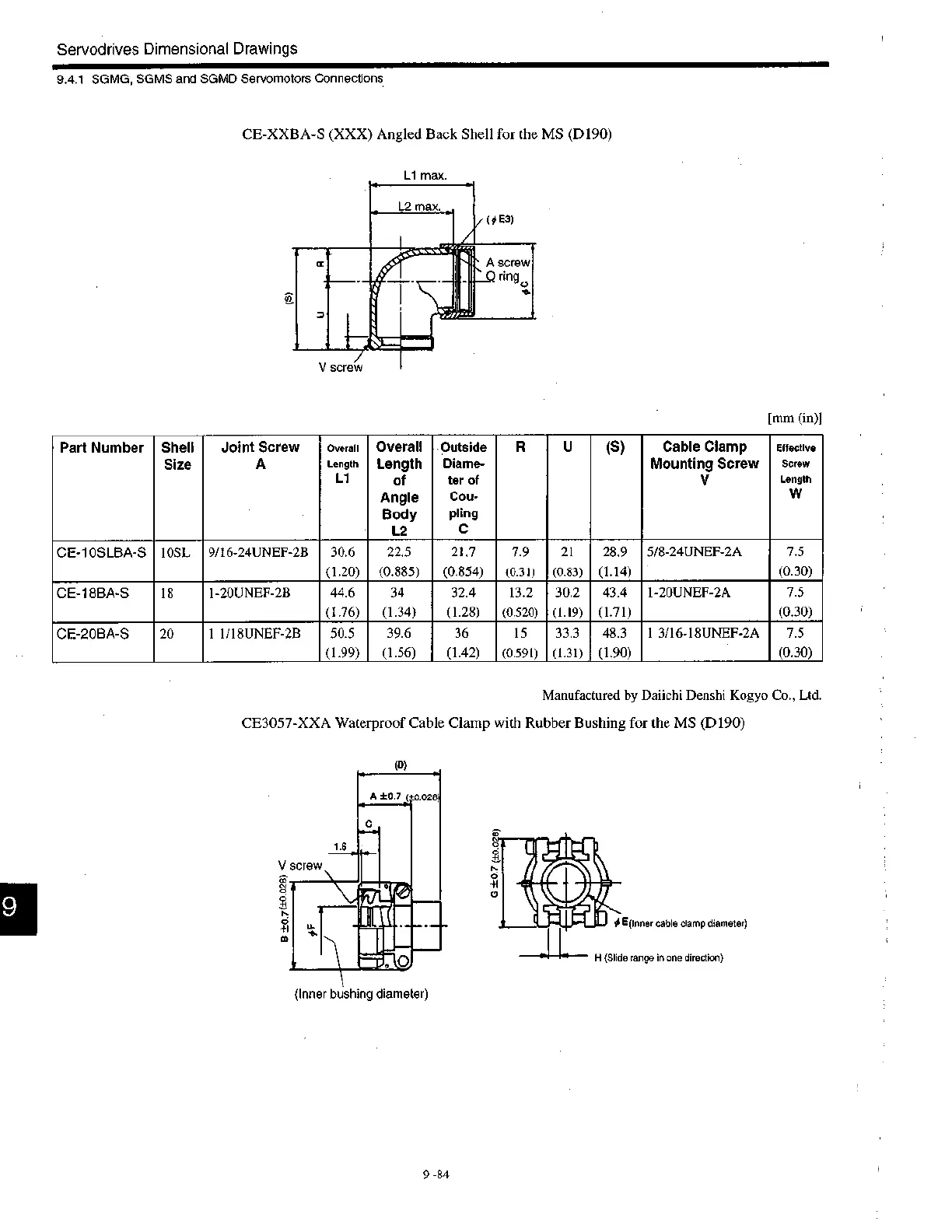

YASKAWA SGDB-15VN - Page 243

Servodrives Dimensional Drawings
Part Number
Shell Joint Screw
Overall
Overall
,Outside R
U (S)
Cable Clamp
Effective
Size
A
Length
Ll
Length
of
Diame-
ter of
Mounting Screw
V
Screw
Length
Angle
Body
Cou-
piing
W
L2
C
CE-1 OSLBA-S
10SL 9/16-24UNEF-2B 30.6
22.5 21.7 7.9 21
28.9 5/8-24UNEF-2A 7.5
(1.20) (0.885) (0.854) (0.31) (0.83) (1.14)
(0.30)
CE-18BA-S
18
1-20UNEF-2B 44.6
34 32.4 13.2 30.2 43.4 1-20UNEF-2A 7.5
(1.76) (1.34)
(1.28) (0.520) (1.19) (1.71) (0.30)
CE-20BA-S 20
1 1/18UNEF-2B 50.5
39.6 36 15 33.3 48.3 1 3/16-18UNEF-2A 7.5
(1.99) (1.56) (1.42) (0.591) (1.31) (1.90) (0.30)
9.4.1 SGMG, SGMS and SGMD Servomotors Connections
CE-XXBA-S (XXX) Angled Back Shell for the MS (D190)
L1 max.
mm (in)]
Manufactured by Daiichi Denshi Kogyo Co., Ltd.
CE3057-XXA Waterproof Cable Clamp with Rubber Bushing for the MS (D190)
(Inner bushing diameter)
E(Inner cable clamp diameter)
H (Slide range in one direction)
9 -84
