5.7 Application Precautions

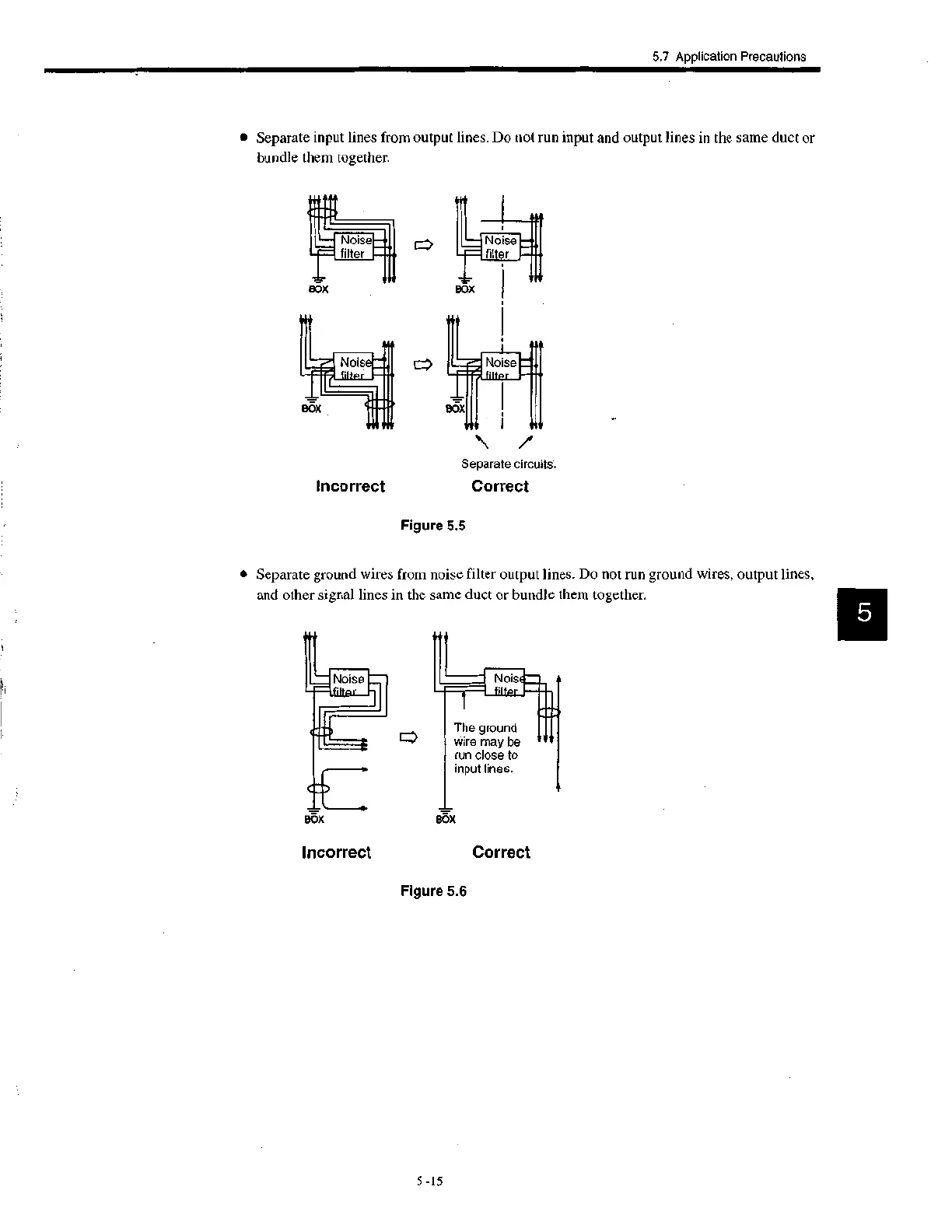

• Separate input lines from output lines. Do not run input and output lines in the same duct or
bundle them together.
Noise
filter
BOX
Incorrect
Separate circuits.
Correct
Figure 5.5
• Separate ground wires from noise filter output lines. Do not run ground wires, output lines,
and other signal lines in the same duct or bundle them together.
Box
Incorrect
The ground
wire may be
run close to
input lines.
BOX
Figure 5.6
Correct
