5.7 Application Precautions
SERVOPACK Model
Power Capacity per SERVO-
PACK (kVA)*1
Current Capacity per MCCB
or Fuse (A)*2
SGDB-05AN
1.1
5
SGDB-1 OAN
2.0
8
SGDB-1 5AN
2.5
10
SGDB-20AN
4.0
12
SGDB-30AN
5.0
18
SGDB-50AN
7.5
28
SGDB-60AN
12.5
32
SGDB-75AN
15.0
41
SGDB-1 AAN
19.0
60
SGDB-1 EAN
30.0
80

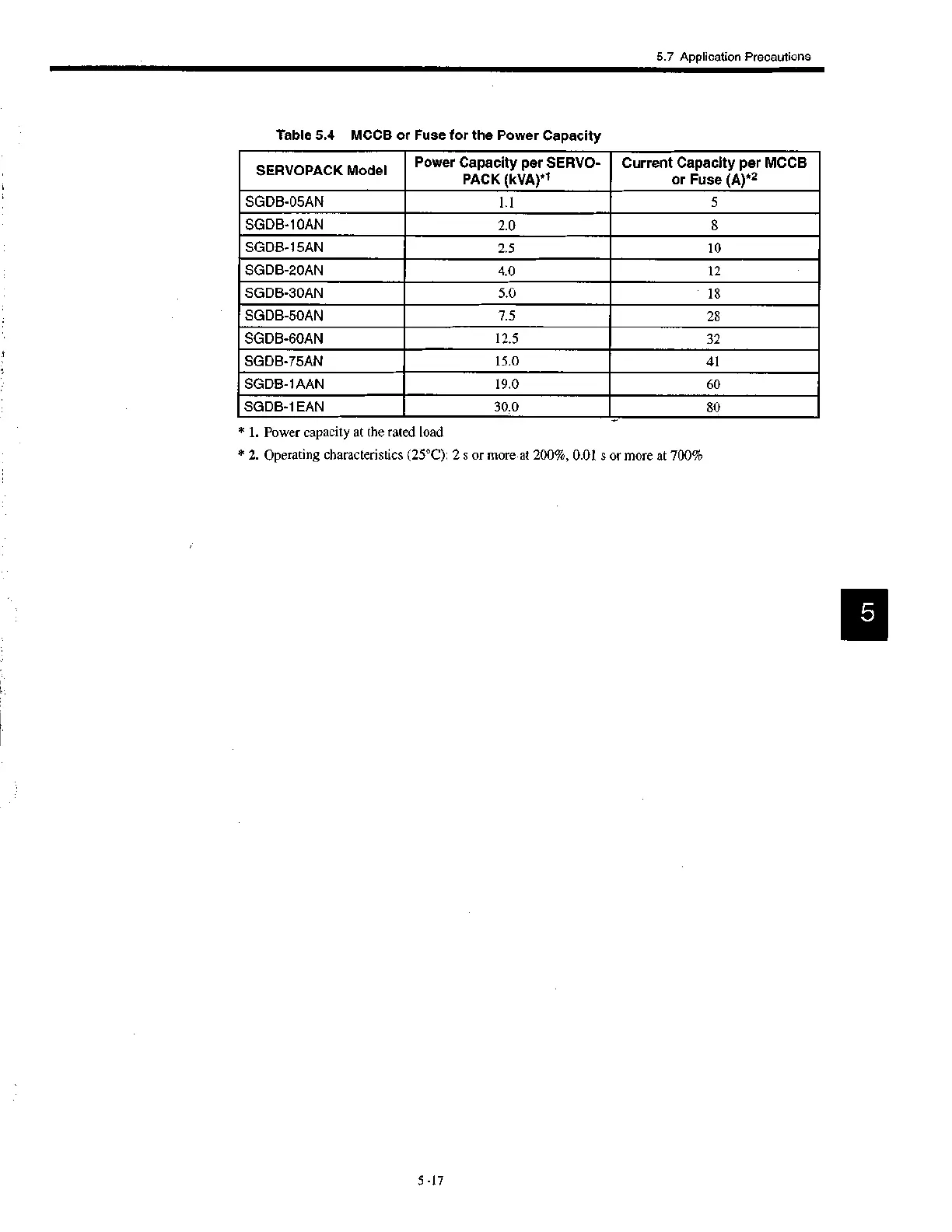

Table 5.4 MCCB or Fuse for the Power Capacity
* 1. Power capacity at the rated load
* 2. Operating characteristics (25°C): 2 s or more at 200%, 0.01 s or more at 700%
