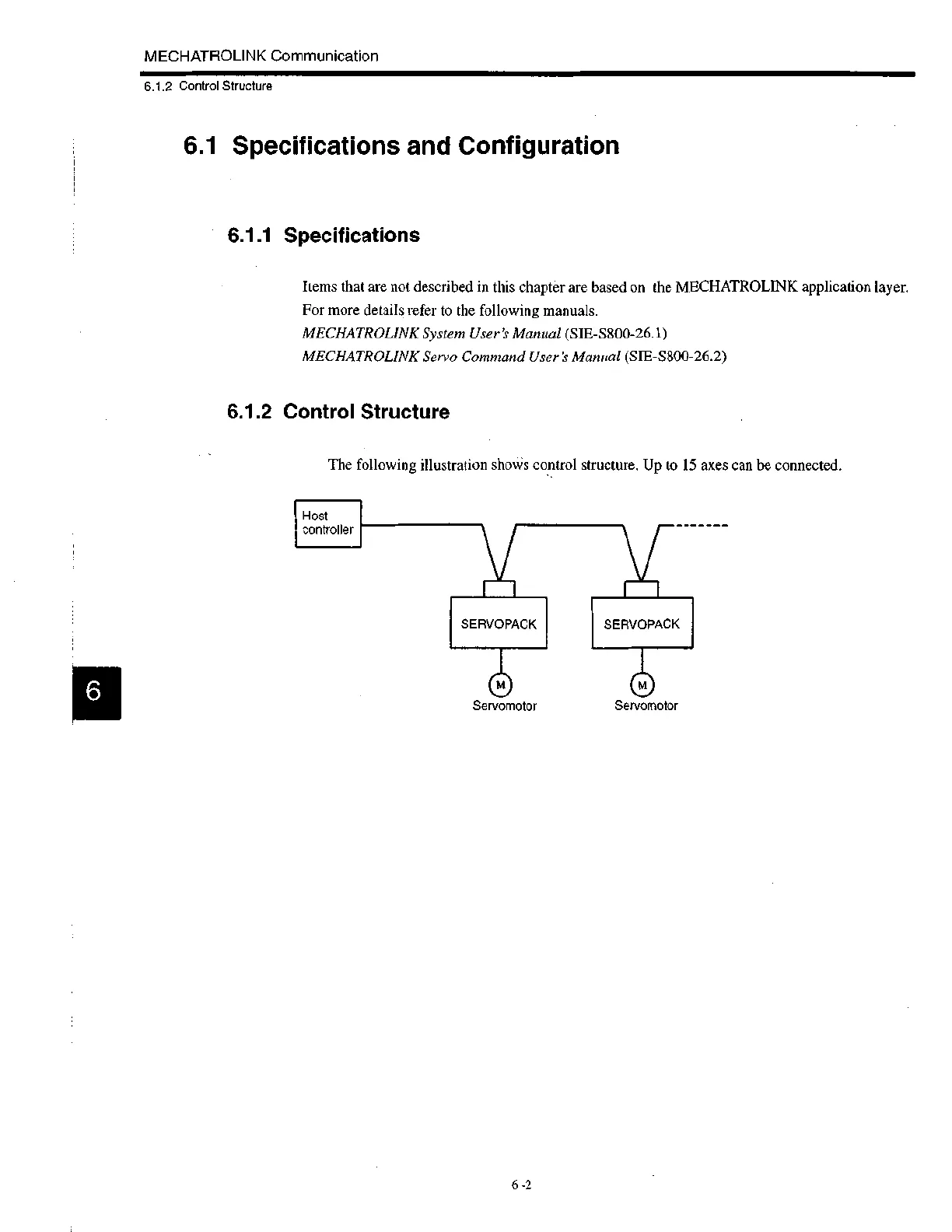

Page #109 background imageLoading...
Page #109 background image
MECHATROLINK Communication
6.1.2 Control Structure
6.1 Specifications and Configuration
6.1.1 Specifications
Items that are not described in this chapter are based on the MECHATROLINK application layer.
For more details refer to the following manuals.
MECHATROLINK System User's Manual (SIE-S800-26.1)
MECHATROLINK Servo Command User's Manual (SIE-S800-26.2)
6.1.2 Control Structure
The following illustration shows control structure. Up to 15 axes can be connected.
Host
controller
Servomotor
Servomotor
6 -2
