YASKAWA SGDB Series User Manual

9.4 Connectors
Shell
Size
A
0 B +-00.38 (0.015
C±0.5
(0.020)
D E±0.3
(0.012)
, + 0.05 (0.0020)
G
.i•-0.25 (0.0098)
J+0.12
(0.0047)
10SL
5/8-24UNEF-2B 22.22 23.3
9/16-24UNEF-2A 7.5 12.5 13.49
(0.875) (0.917) (0.30)
(0.492)
(0.531)
20 - 1 1/4-18UNEF-2B 37.28 34.11
1 1/18-18UNEF-2A
12.16 26.8 18.26
(1.468) (1.343)
(0.479)
(1.055) (0.718)
Shell Size
Name
L cb A B cb C D V W
18 CE02-18BS-S
31
(1.22)
30.5
(1.20)
10.5
(0.413)
16.3
(0.642)
26.7
(1.05)
1-20UNEF-2B 1-20UNEF-2A
20 CE02-20BS-S 35
(1.38)
35
(1.38)
10.9
(0.429)
17.8
(0.700)
31.6
(1.24)
1 118-18UNEF-2B
1 3116-18UNEF-2A
Note 1 Do not modify the receptacle and plug conbination in order to conform to IP67 specifications.
2 Select plug only with a flexible conduit.

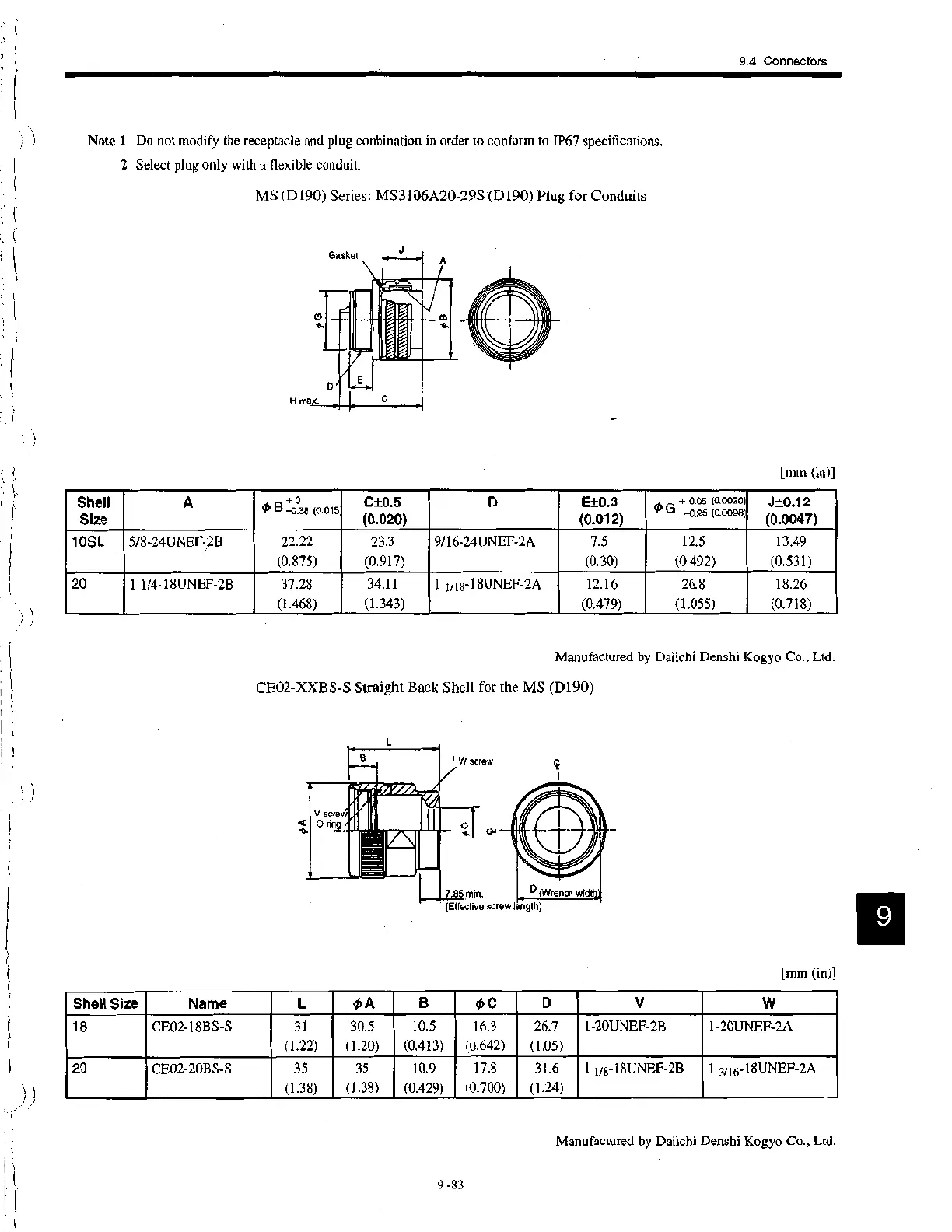

MS (D190) Series: MS3106A20-29S (D190) Plug for Conduits
[mm (in)]
Manufactured by Daiichi Denshi Kogyo Co., Ltd.
CEO2-XXBS-S Straight Back Shell for the MS (D190)
W screw
7.85 min.
D Wrench widt
(Effective screw length)
[mm (in)]
Manufactured by Daiichi Denshi Kogyo Co., Ltd.
9 -83

YASKAWA SGDB Series Specifications

General

Series	SGDB
Category	Servo Drives
Control Method	Sine-wave PWM control
Communication Interface	MECHATROLINK-II, MECHATROLINK-III
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Encoder error
Ambient Temperature	0°C to 55°C (non-freezing)
Vibration Resistance	5.9 m/s2 at 10 to 55 Hz
Shock Resistance	49 m/s2
Humidity	90% RH or less (non-condensing)
