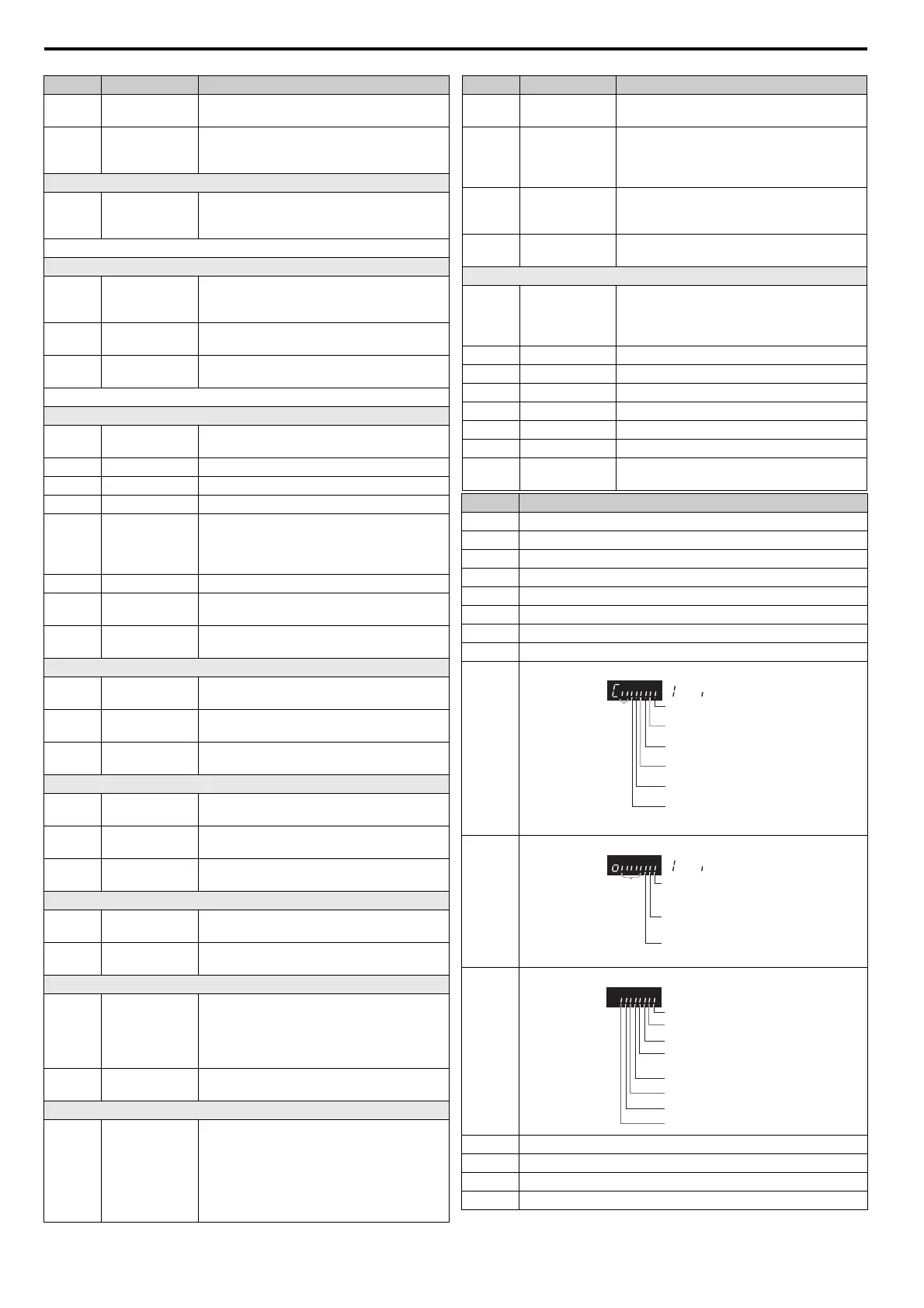

6 Parameter Table
EN 22 YASKAWA Europe TOMP_C710606_75A V1000 IP66 - Quick Start Guide
E2-05
Motor Line-to-
Line Resistance
Sets the phase-to-phase motor resistance in
ohms. Automatically set by Auto-Tuning.
E2-06
Motor Leakage
Inductance
Sets the voltage drop due to motor leakage
inductance as a percentage of motor rated
voltage. Automatically set by Auto-Tuning.
Digital Input Settings
H1-01 to
H1-06
Digital Input S1
to S6 Function
Selection
Selects the function of terminals S1 to S6.
Major functions are listed at the end of the table.
Digital Output Settings
H2-01
Digital Output
MA/MB
Function
Set the function for the relay output MA-MB-
MC.
H2-02
Digital Output P1
Function
Sets the function for the photocoupler output P1.
H2-03
Digital Output P2
Function
Sets the function for the photocoupler output P2.
Major functions are listed at the end of the table.
Analog Input Setting
H3-01
A1 Signal Level
Sel.
0: 0 to +10 V (neg. input is zeroed)
1: 0 to +10 V (bipolar input)
H3-02 A1 Function Sel. Assign a function to terminal A1.
H3-03 A1 Gain Sets the input value in % at 10 V analog input.
H3-04 A1 Bias Sets the input value in % at 0 V analog input.
H3-09
A2 Signal Level
Selection
0: 0 to +10 V (neg. input is zeroed)
1: 0 to +10 V (bipolar input)
2: 4 to 20 mA (9 bit input)
3: 0 to 20 mA
H3-10 A2 Function Sel. Assign a function to terminal A2.
H3-11 A2 Gain
Sets the input value in % at 10 V/20 mA analog
input.
H3-12 A2 Bias
Sets the input value in % at 0 V/0 mA/4 mA
analog input.
Analog Input Setting
H4-01
AM Monitor
Selection
Enter value equal to U1- monitor values.
Example: Enter “103” for U1-03.
H4-02 AM Gain
Sets terminal AM output voltage equal to 100%
monitor value.
H4-02 AM Bias
Sets terminal AM output voltage equal to 0%
monitor value.
Pulse Input Setting (Frequency Reference Input)
H6-02 RP Input Scaling
Sets the number of pulses (in Hz) that is equal to
100% input value.
H6-03
Pulse Train Input
Gain
Sets the input value in % at pulse input with H6-
02 frequency.
H6-04
Pulse Train Input
Bias
Sets the input value in % at 0 Hz pulse input
frequency.
Pulse Output Setting
H6-06 MP Monitor Sel.
Enter value equal to U- monitor values.
Example: Enter “102” for U1-02.
H6-07
MP Monitor
Scaling
Sets the number of output pulses when the
monitor is 100% (in Hz).
Motor Overheat Protection
L1-01
Motor Overload
Prot. Sel.
Sets the motor overload protection.
0: Disabled
1: Standard fan cooled motor
2: Standard blower cooled motor
3: Vector motor
L1-02
Motor Overload
Prot. Time
Sets the motor overload protection time in min.
Normally no change is necessary.
Stall Prevention
L3-01
Stall Prevention
Selection during
Acceleration
0: Disabled - Motor accelerates at active
acceleration rate and may stall with too heavy
load or too short accel time.
1: General Purpose - Hold acceleration when
current is above L3-02.
2: Intelligent - Acceleration in the shortest
possible time.
Par. Name Description
L3-02
Stall Prev. Level
during Accel.
Sets the current level for stall prevention during
acceleration.
L3-04
Stall Prev.
Selection during
Decel.
0: Disabled - Deceleration as set. OV might
occur.
1: General Purpose - Deceleration is hold if
DC bus voltage rises high.
L3-05
Stall Prev.
Selection during
Run
0: Disabled - Motor stall or overload might
occur.
1: Decel Time 1 - Reduce speed using C1-02.
L3-06
Stall Prev. Level
during Run
Sets the current level at which stall prevention
during run starts to operate.
Auto-Tuning
T1-01
Auto-Tuning
Mode Selection
0: Rotational Auto-Tuning
2: Terminal resistance only
3: Rotational Auto-Tuning for
Energy Saving
T1-02 Rated Power Sets the motor rated power (kW).
T1-03 Rated Voltage Sets the motor rated voltage (V).
T1-04 Rated Current Sets the motor rated current (A).
T1-05 Base Frequency Sets the motor base frequency (Hz).
T1-06 Motor Poles Sets the number of motor poles.
T1-07 Base Speed Sets the motor base speed (RPM).
T1-11 Motor Iron Loss
Iron loss for determining the Energy Saving
coefficient. If unknown leave it on default.
Monitor Description
U1-01 Frequency Reference (Hz)
U1-02 Output Frequency (Hz)
U1-03 Output Current (A)
U1-05 Motor Speed (Hz)
U1-06 Output Voltage Reference (Vac)
U1-07 DC Bus Voltage (Vdc)
U1-08 Output Power (kW)
U1-09 Torque Reference ( of motor rated torque)
U1-10
Input Terminal Status
U1-11
Output Terminal Status
U1-12
Drive Status
U1-13 Terminal A1 input level
U1-14 Terminal A2 input level
U1-16 Soft Starter Output (freq after accel/decel ramps)
U1-18 OPE Fault Parameter
Par. Name Description
1: Digital input 1
(terminal S1 enabled)
1: Digital input 2
(terminal S2 enabled)
1: Digital input 3
(terminal S3 enabled)
1: Digital input 4
(terminal S4 enabled)
1: Digital input 5
(terminal S5 enabled)
1: Digital input6
(terminal S6 enabled)
: ON : OFF
Reserved
1: Relay Output
(terminal MA-MC closed
MB-MC open)
1: Open Collector Output 1
(terminal P1) enabled
1: Open collector Output 2
(terminal P2) enabled
: ON
Reserved
: OFF
1: During run
1: During zero-speed
1: During REV
1: During fault reset
signal input
1: During speed agree
1: Drive ready
1: During alarm detection
1: During fault detection
