YASKAWA Varispeed CIMR-G7A - Page 208

Frequency Reference
6-7

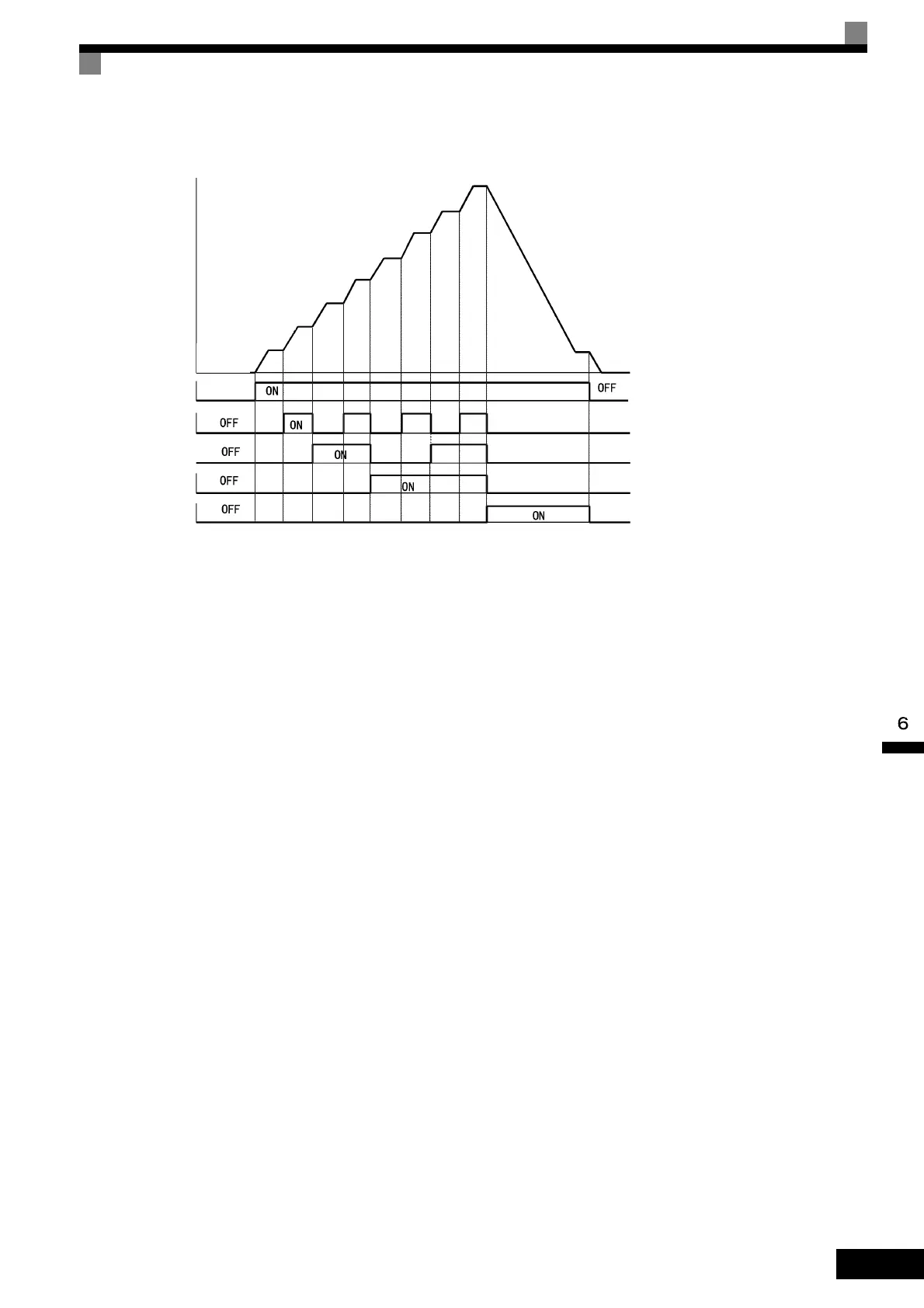

Fig 6.7 Multi-step speed reference/Jog Frequency Selection Time Chart
Forward/stop
Multi-step speed
reference 1
Multi-step speed
reference 2
Multi-step speed
reference 3
Jog frequency
selection
Frequency
reference 3:
Auxiliary
speed fre-
quency 2
Frequency
reference 4
Frequency
reference 5
Frequency
reference 6
Jog frequency
Frequency
reference 8
Frequency
reference 7
Frequency
reference
Frequency
reference 1:
Master speed
frequency
Frequency ref-
erence 2: Auxil-
iary speed
frequency 1
