2-32
îš„ Preventing C and D Option Board Connectors from Rising
After installing an option board into slot C or D, insert an option clip to prevent the side with the connector
from rising. The option clip can be easily removed by holding onto the protruding portion of the clip and pull-
ing it out.
Remove the option clip before installing an option board into slot C or D. The option board can not be
installed completely and may not function properly if it is installed with the option clip attached.

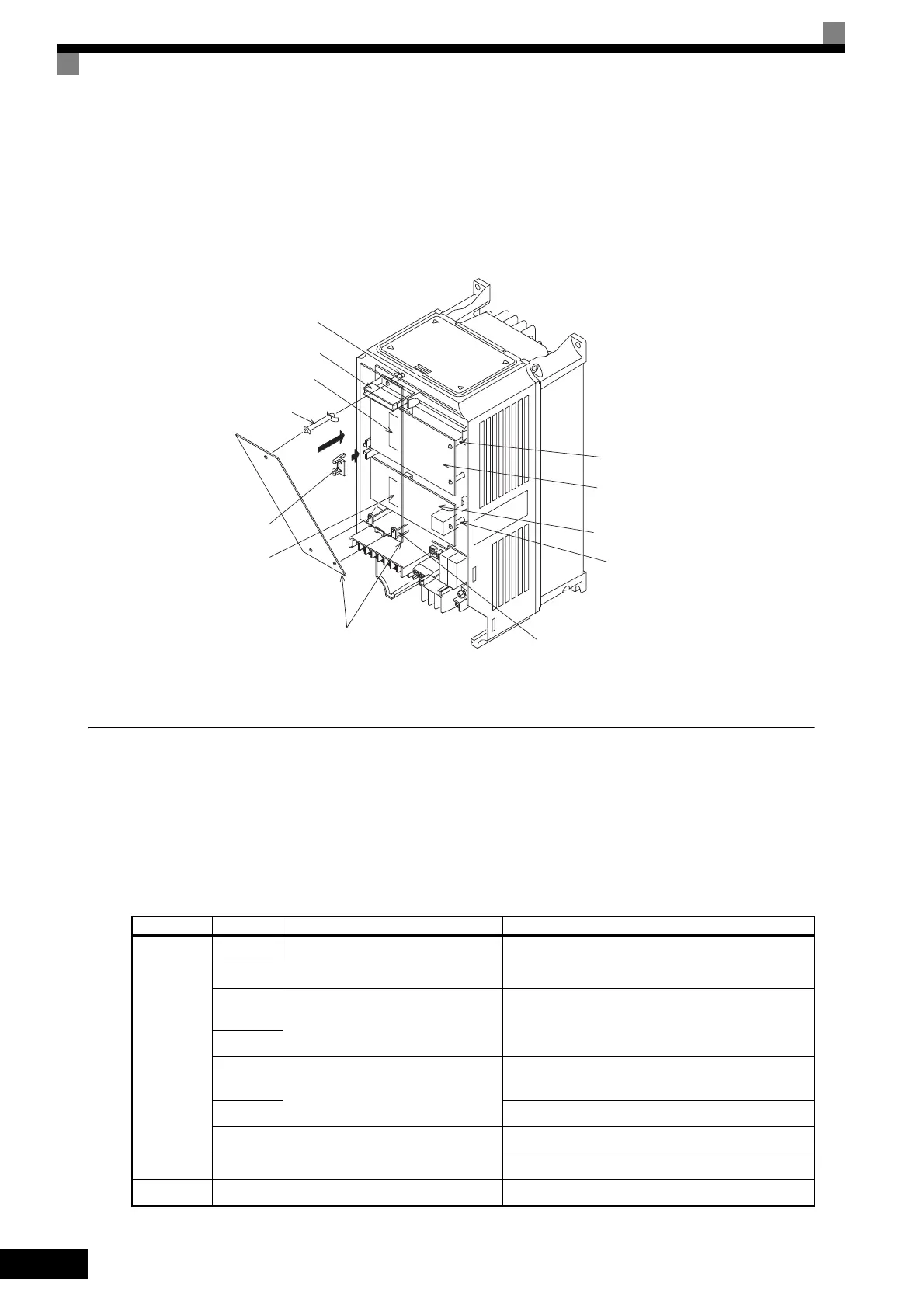

Fig 2.21 Mounting Option Boards
îš‹ PG Speed Control Board Terminals and Specifications
The terminal specifications for the PG Speed Control Boards are given in the following tables.
îš„PG-A2
The terminal specifications for the PG-A2 are given in the following table.
Table 2.15 PG-A2 Terminal Specifications
Terminal No. Contents Specifications
TA1
1
Power supply for pulse generator
12 VDC (±5%), 200 mA max.
2 0 VDC (GND for power supply)
3
+12 V/open collector switching ter-
minal
Terminal for switching between12 V voltage input
and open collector input. For open collector input,
short across 3 and 4.
4
5
Pulse input terminal
H: +4 to 12 V; L: +1 V max. (Maximum response fre-
quency: 30 kHz)
6 Pulse input common
7
Pulse motor output terminal
12 VDC (±10%), 20 mA max.
8 Pulse monitor output common
TA2 (E) Shield connection terminal -
A option board mounting spacer hole
4CN
A option board connector
2CN
C option board connector
A option board mounting spacer
(Provided with A Option Board.)
Option Clip
(To prevent raising of
C and D option boards)
3CN
D option board connector
A option board
A option board mounting spacer
D option board mounting spacer
C option board mounting spacer
D option board
C option board
To Next Page
