 Inverters of 18.5 kW or More

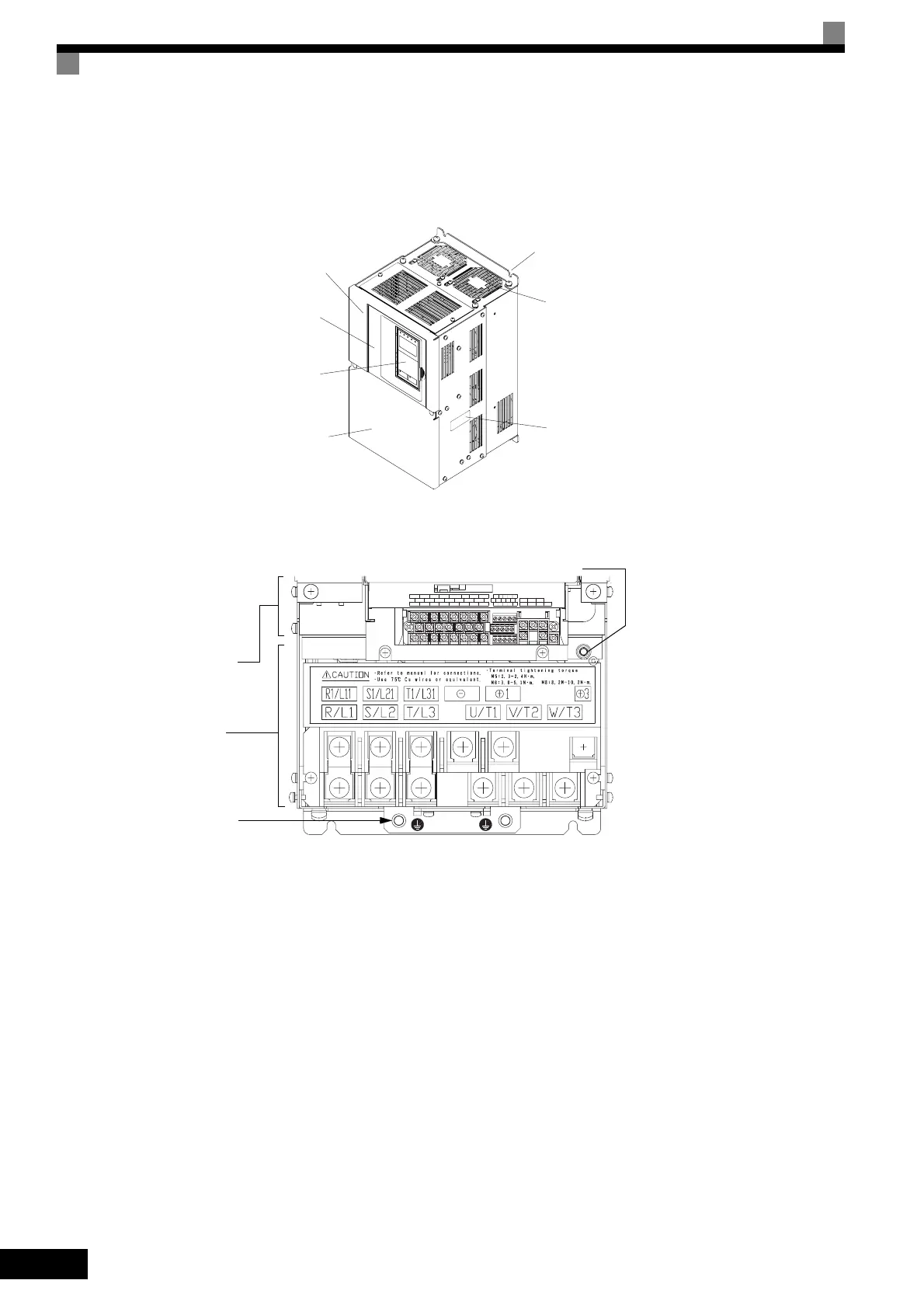

The external appearance and component names of the Inverter are shown in Fig 1.6. The Inverter with the ter-
minal cover removed is shown in Fig 1.7.
Fig 1.6 Inverter Appearance (18.5 kW or More)
Fig 1.7 Terminal Arrangement (18.5 kW or More)
Mounting holes
Cooling fan
Nameplate
Inverter cover
Front cover
Digital Operator
Terminal cover
Charge indicator
Control circuit
terminals
Main circuit
terminals
Ground terminal
