Yealink SIP-T2XP

Getting Started
33
5) Enter the end IP address in the End IP Address field.
4. Click Confirm to accept the change.
A dialog box pops up to prompt that settings will take effect after a reboot.
5. Click OK to reboot the IP phone.

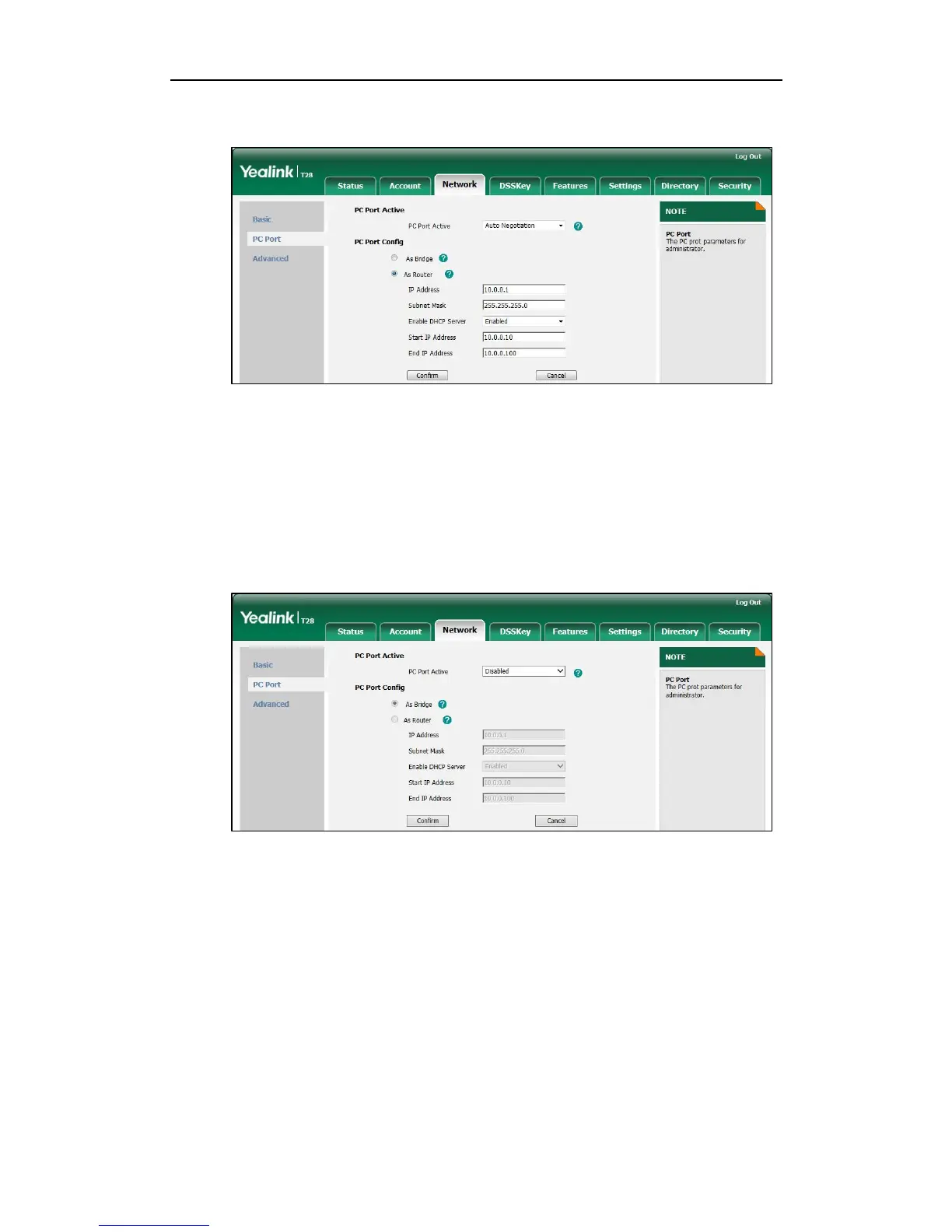

To disable the PC port via web user interface:
1. Click on Network->PC Port.
2. Select Disabled from the pull-down list of PC Port Active.
3. Click Confirm to accept the change.
A dialog box pops up to prompt that settings will take effect after a reboot.
4. Click OK to reboot the IP phone.
To configure the PC port mode via phone user interface:
1. Press Menu->Settings->Advanced Settings (password: admin) ->Network->PC
Port.
2. Select the desired mode.
If you select Router, you can configure the IP address for the PC port and configure
DHCP for the PC attached to the PC port.
1) Enter the IP address in the IPv4 field.
